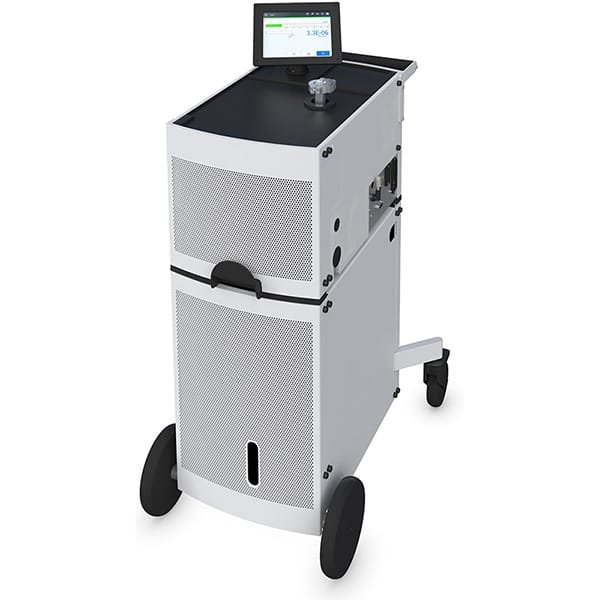

Agilent MR and MD Mobile Leak Detectors
Agilent MR and MD Mobile Leak Detectors
Features
There are six different application setup guides available, designed to help you configure your instrument correctly for optimal performance. These guides ensure that parameters are set accurately, allowing for thorough and efficient testing.
The device comes with a large, durable, and responsive industrial touch screen that rotates 180°, giving you flexibility to adjust for ideal viewing angles during use. Its user interface is clean and intuitive, providing quick access to frequently used features. With a flat menu structure, you can easily find the settings you need without any hassle.
A startup wizard simplifies the initial setup process, making it easy to get the instrument up and running right from the first time you power it on.
The instrument also offers enhanced charting capabilities, including a zoom function for closer data inspection, color-coded set points, and time-based plotting of leak rate and pressure, making data analysis more effective.
Additionally, the large work surface offers plenty of room for testing parts, tools, and other components, ensuring an efficient workflow.
The improved power-off process ensures that the spectrometer stays under vacuum, protecting the turbomolecular pump and helping to extend its lifespan.
Specifications Table
| Leak Detector Model | MR15 | MR30 | MD15 | MD30 |
|---|---|---|---|---|
| Backing Pump | Wet | Wet | Dry | Dry |
| Pumping Speed | He 1.80 L/s Rough 15.0 CFM 25.5 m3/hr | He 1.80 L/s Rough 30.0 CFM 51.0 m3/hr | He 1.80 L/s Rough 15.0 CFM 25.5 m3/hr | He 1.80 L/s Rough 30.0 CFM 51.0 m3/hr |
| Detectable Masses AMU | 4 | 4 | 4 | 4 |
| Mass Spectrometer | 180° Magnetic Sector Field | 180° Magnetic Sector Field | 180° Magnetic Sector Field | 180° Magnetic Sector Field |
| Ion Source | Two yttrium coated iridium magnetic filaments | Two yttrium coated iridium magnetic filaments | Two yttrium coated iridium magnetic filaments | Two yttrium coated iridium magnetic filaments |
| Inlet Flange | KF25 | KF25 | KF25 | KF25 |
| Smallest Detectable Leak Rate | Helium Vacuum Operation < 5 x 10-12 mbar*L/s | Helium Vacuum Operation < 5 x 10-12 mbar*L/s | Helium Vacuum Operation < 5 x 10-12 mbar*L/s | Helium Vacuum Operation < 5 x 10-12 mbar*L/s |
| Units of Measurement | Leak Rate mbar*L/s Pa*m^3/s Torr*L/s atm*cc/s s*ft^3/yr | Leak Rate mbar*L/s Pa*m^3/s Torr*L/s atm*cc/s s*ft^3/yr | Leak Rate mbar*L/s Pa*m^3/s Torr*L/s atm*cc/s s*ft^3/yr | Leak Rate mbar*L/s Pa*m^3/s Torr*L/s atm*cc/s s*ft^3/yr |
| Leak Rate Display Area Min | 5.000 x 10-12 mbar*L/s | 5.000 x 10-12 mbar*L/s | 5.000 x 10-12 mbar*L/s | 5.000 x 10-12 mbar*L/s |
| Time Constant | Leak Signal < 0.50 seconds | Leak Signal < 0.50 seconds | Leak Signal < 0.50 seconds | Leak Signal < 0.50 seconds |
| Inlet Pressure | max 13.0 mbar 1300 Pa 13.0 hPA 9.00 Torr | max 13.0 mbar 1300 Pa 13.0 hPA 9.00 Torr | max 13.0 mbar 1300 Pa 13.0 hPA 9.00 Torr | max 13.0 mbar 1300 Pa 13.0 hPA 9.00 Torr |
| Languages | English Chinese | English Chinese | English Chinese | English Chinese |
| Dimensions in. (mm.) | 30.0 x 20.0 x 46.0 ( 764 x 508 x 1153 ) | 30.0 x 20.0 x 46.0 ( 764 x 508 x 1153 ) | 30.0 x 20.0 x 46.0 ( 764 x 508 x 1153 ) | 30.0 x 20.0 x 46.0 ( 764 x 508 x 1153 ) |
| Weight Lbs (kg) | 194 ( 88.0 ) | 214 ( 97.0 ) | 194 ( 88.0 ) | 214 ( 97.0 ) |
