A Comprehensive Guide to Crucibles: Applications, Materials, Selection, and Maintenance
Crucibles have been trusted tools for centuries—vital in everything from ancient metallurgy to today’s cutting-edge laboratories. Whether you’re involved in metal refining, ceramics production, or high-temperature chemical reactions, understanding crucibles can make all the difference. In this article, we’ll take you through everything you need to know about crucibles: what they are, how they’re used across various industries, the differences between materials, tips on selecting the right one, and guidance on maintenance. Our goal is to provide clear, practical insights to help you make informed decisions .
Table of Contents
Chapter 1
Understanding Crucibles
At its simplest, a crucible is a container designed to withstand very high temperatures. Traditionally used for melting metals, modern crucibles now play a role in chemical synthesis, ceramics production, and numerous other processes. Made from materials that resist heat and chemical corrosion, they ensure that the materials you’re working with remain pure and uncontaminated throughout the process. This combination of durability and inertness is what makes crucibles indispensable in both industrial and research settings.
Chapter 2
Where Are Crucibles Used?
Crucibles are everywhere once you start looking for them. In metallurgy, for instance, they are the workhorses behind melting and casting metals like steel, aluminum, and copper. In many high-tech chemical laboratories, crucibles are used to synthesize and purify new compounds, or even to test the thermal properties of novel materials.
The ceramics and glass industries rely on crucibles to provide the steady high temperatures needed to melt raw materials and form products. Meanwhile, academic and industrial research continues to find new applications, whether that’s for catalyst preparation or for creating advanced materials that push the boundaries of modern science.
Chapter 3
Comparing Crucible Materials
Crucibles are everywhere once you start looking for them. In metallurgy, for instance, they are the workhorses behind melting and casting metals like steel, aluminum, and copper. In many high-tech chemical laboratories, crucibles are used to synthesize and purify new compounds, or even to test the thermal properties of novel materials.
The ceramics and glass industries rely on crucibles to provide the steady high temperatures needed to melt raw materials and form products. Meanwhile, academic and industrial research continues to find new applications, whether that’s for catalyst preparation or for creating advanced materials that push the boundaries of modern science.
Comparing Crucible Materials
One of the most important decisions when choosing a crucible is the material it’s made from. Each material brings its own benefits and drawbacks, depending on your application.
Ceramic Crucibles
Ceramic crucibles are popular due to their excellent heat resistance and chemical inertness. They’re ideal for processes that don’t exceed around 1500°C. Because ceramics are relatively affordable and widely available, they work well for many laboratory applications. However, ceramics can be brittle and might crack if subjected to sudden temperature changes or physical impact.

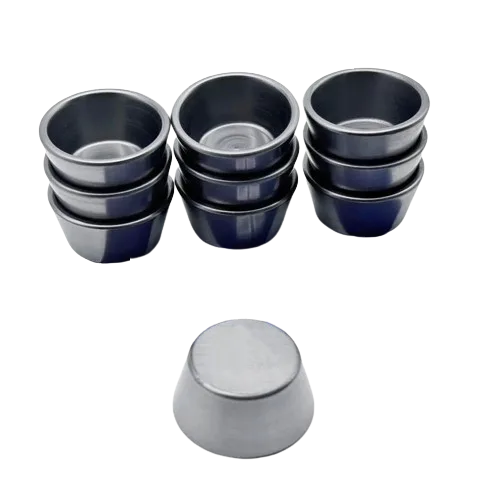

Graphite Crucibles
If you need rapid, even heating at extremely high temperatures, graphite crucibles might be the right choice. These crucibles can handle temperatures above 3000°C in non-oxidizing conditions, thanks to their exceptional thermal conductivity. That said, graphite can oxidize if exposed to air at high temperatures, so it’s best used in controlled environments.

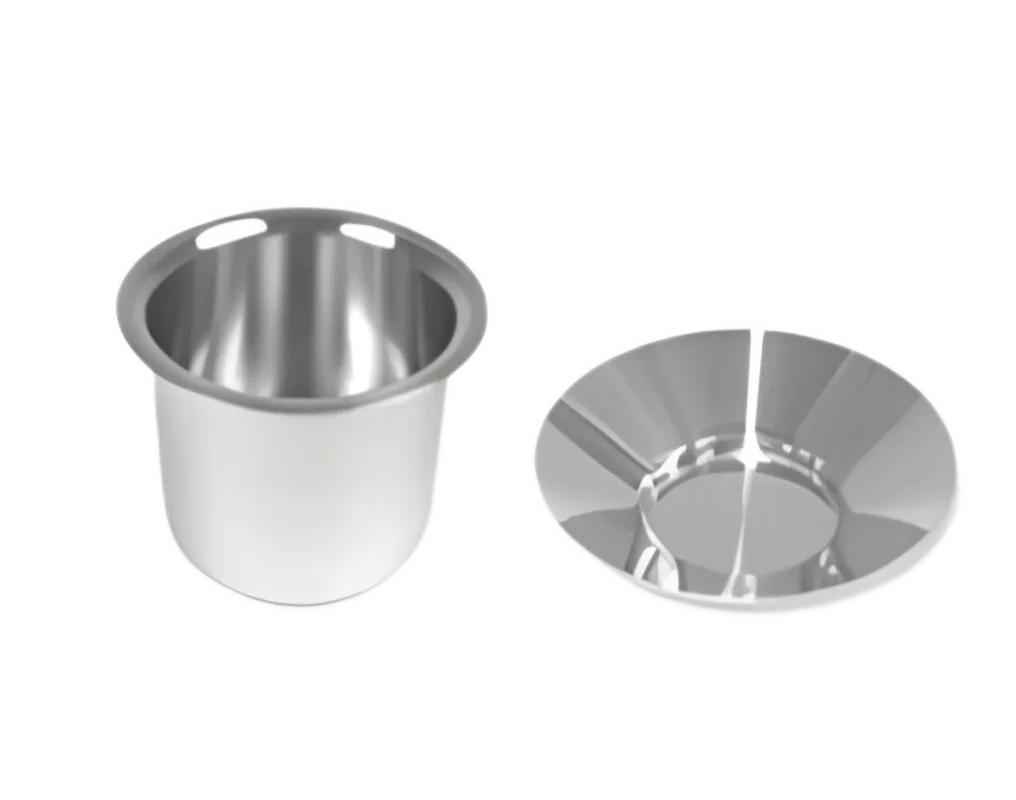

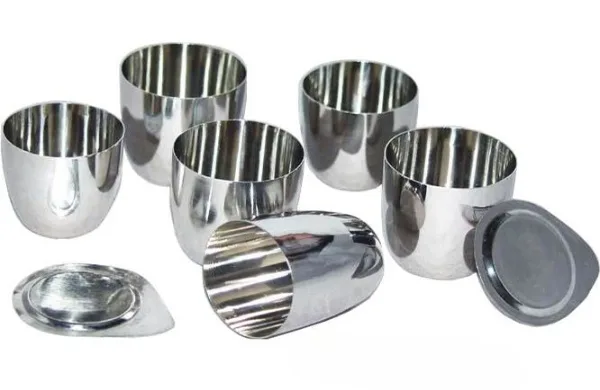

Platinum Crucibles
For those working with precious metals or needing the highest level of chemical purity, platinum crucibles offer unmatched stability. They perform excellently at high temperatures and do not react with most substances. Their downside is the high cost, so they are generally reserved for specialized applications where contamination is not an option.

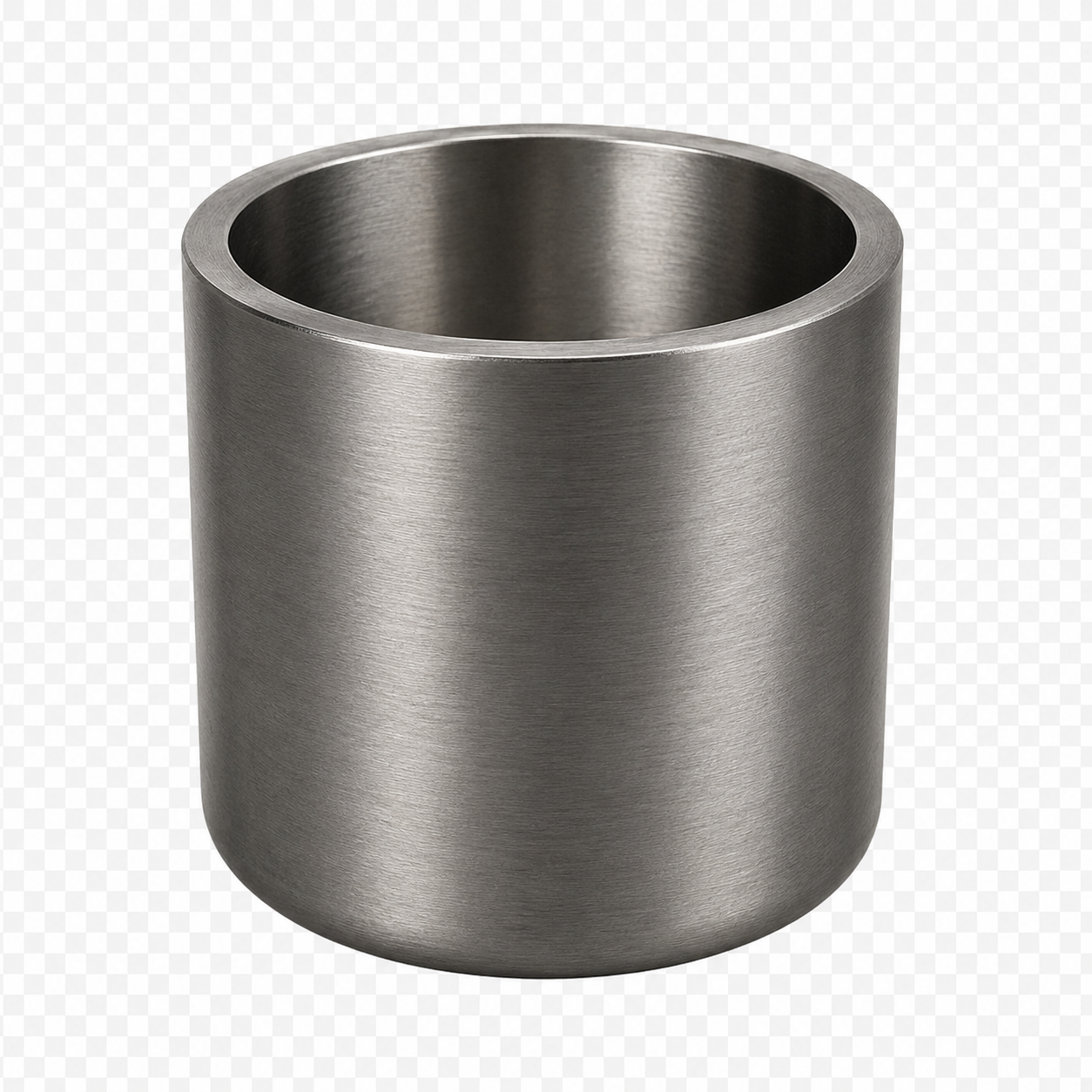

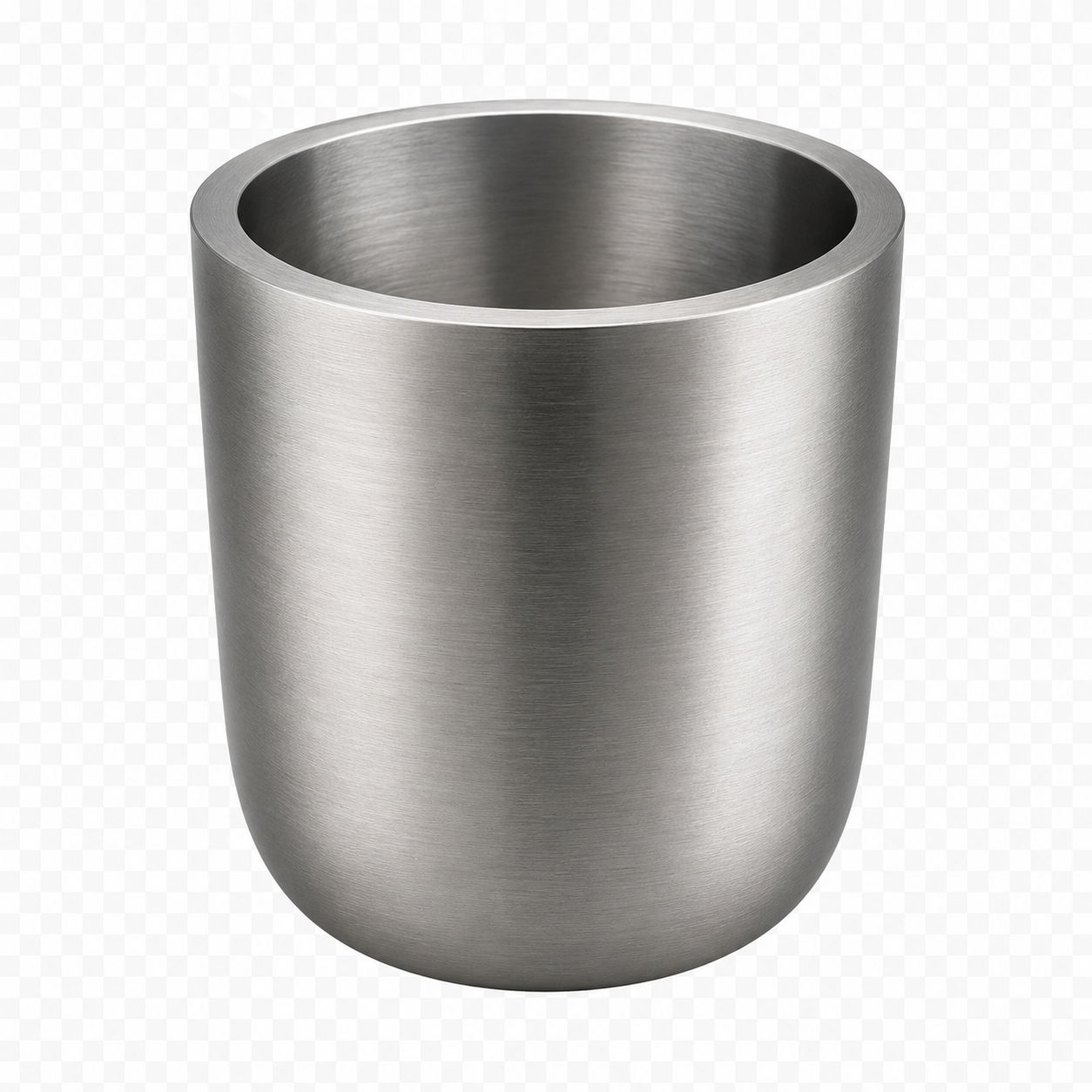

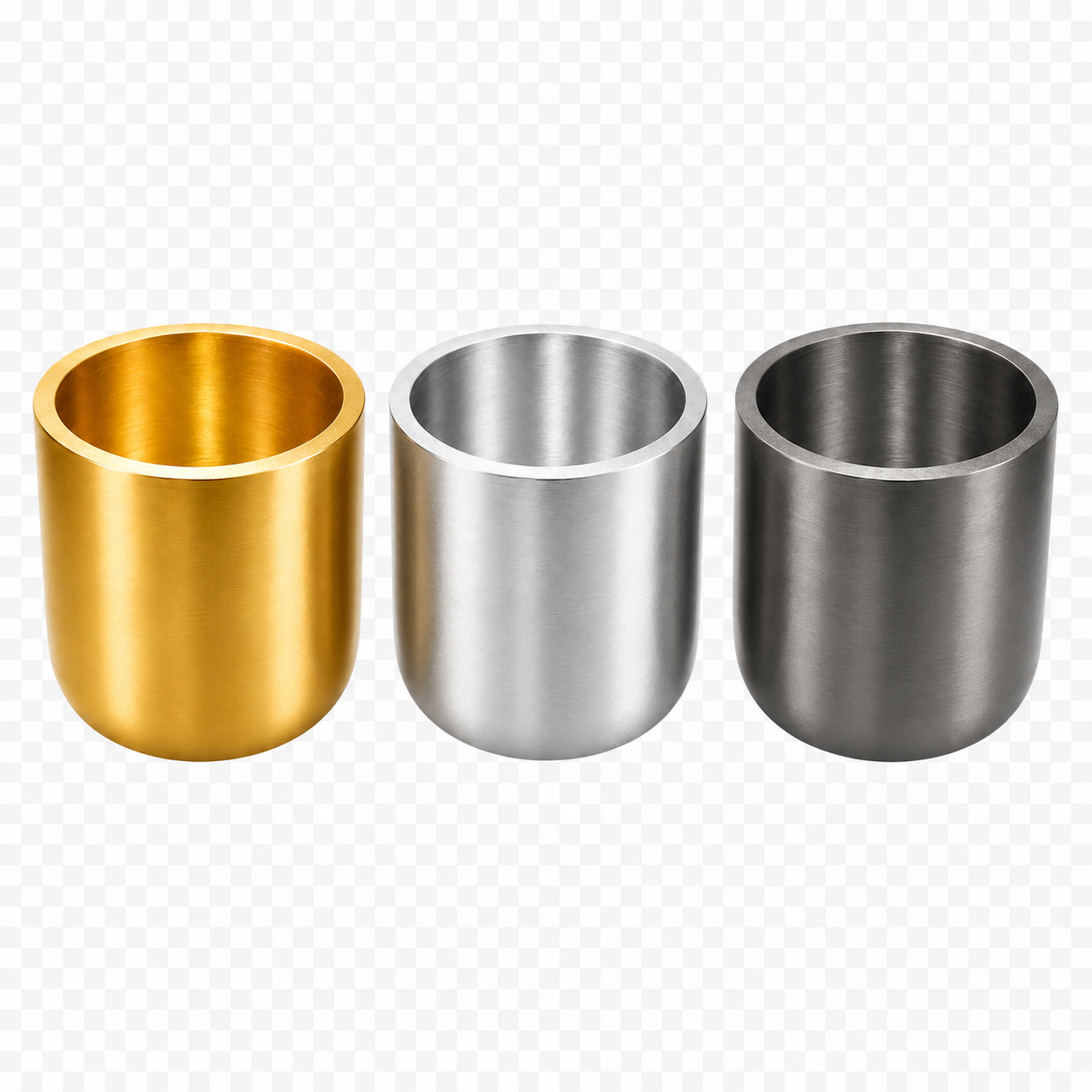

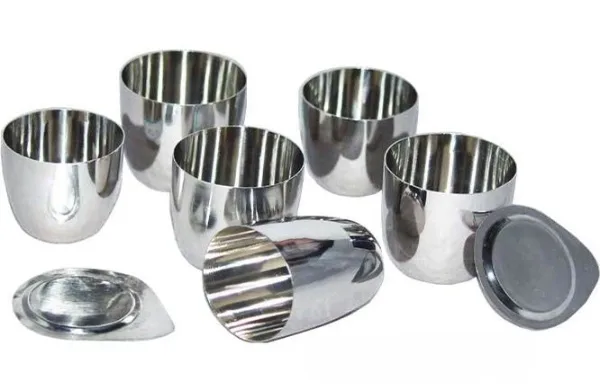

Metal and Refractory Crucibles
Metal crucibles, often made from high-temperature alloys, combine strength with a moderate heat resistance (typically up to around 1400°C). They’re less fragile than ceramics and are suitable for industrial settings where durability matters. Refractory crucibles, on the other hand, are engineered to survive extreme conditions—often well above 2000°C—and are used in the most demanding industrial processes.
Chapter 4
Choosing the Right Crucible
Selecting a crucible isn’t just a matter of picking the most expensive option. It’s about matching the crucible’s properties to your specific process. Here are some factors to consider:
- Temperature Requirements: What’s the highest temperature your process will reach? For high-temperature metal melting, a graphite or platinum crucible might be necessary, whereas routine laboratory work may be well served by ceramic options.
- Chemical Environment: Consider whether the material in your crucible might react with the container itself. For chemical reactions, you’ll need a material that is as inert as possible.
- Cost vs. Durability: Ceramic crucibles are typically more affordable, but if you need a crucible that will last under harsh industrial conditions, investing in a metal or platinum option might be worthwhile.
- Furnace Compatibility: Ensure that your crucible fits well in your furnace. A good match means even heating and a lower risk of thermal shock.
By taking the time to evaluate these aspects, you can choose a crucible that not only meets your process requirements but also offers a good return on investment over time.
Chapter 5
Temperature Ranges: What Can Your Crucible Handle?
| Crucible Material | Maximum Temperature (°C) | Best For | Limitations | Chemical Resistance | Thermal Shock Resistance |
| Alumina (Al₂O₃) Ceramic | 1,700 – 2,000 | High-temperature metal melting, ceramics, laboratory use | Brittle, prone to cracking under rapid cooling | Excellent (except strong alkalis) | Moderate |

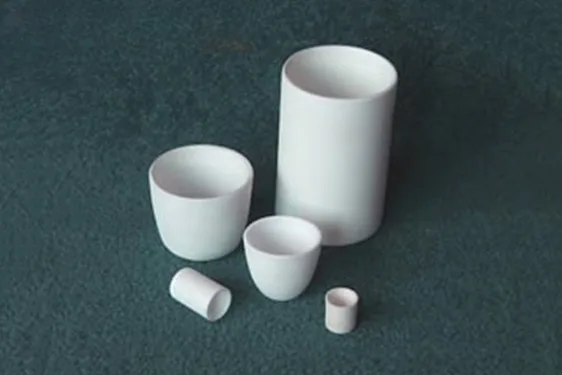

| Zirconia (ZrO₂) Ceramic | 2,400 – 2,600 | High-purity metallurgy, extreme heat applications | Expensive, limited large-size availability | Excellent | High |
| Graphite | 3,000+ | Metal casting, induction heating, carbide production | Oxidizes in air above 500°C | Poor in oxidizing environments | High |
| Silicon Carbide (SiC) | 1,650 – 2,500 | Metal smelting, glass melting, thermal processing | Can react with some molten metals | Good overall, but reacts with certain fluxes | High |
| Magnesia (MgO) Refractory | 2,000 – 2,800 | Industrial metallurgy, high-purity metal processing | Can absorb moisture, reacts with silica | Excellent | Low |
| Mullite (3Al₂O₃·2SiO₂) | 1,700 – 1,900 | Glass processing, ceramics, high-temperature kiln work | Lower mechanical strength than alumina | Good | Moderate |
| Platinum (Pt) & Platinum Alloys | 1,700 – 1,800 | Laboratory analysis, high-purity metal refining | Very expensive, softens at high heat | Outstanding | High |
| Nickel-Based Alloys (Inconel, Hastelloy, etc.) | 1,300 – 1,500 | Chemical processing, corrosion-resistant applications | Prone to oxidation and corrosion | Excellent against acids & salts | Moderate |
| Stainless Steel (304, 310, 316, etc.) | 1,400 – 1,500 | General foundry use, metal melting | Can degrade over repeated heating cycles | Moderate | Low |
| Quartz (Fused Silica, SiO₂) | 1,200 – 1,500 | Semiconductor, optics, laboratory applications | Fragile, can devitrify over time | Excellent (except HF acid) | Very High |
| Boron Nitride (BN) | 1,800 – 2,000 | Non-wetting applications, metal casting | Expensive, reacts with strong acids | Excellent | High |
| Titanium Diboride (TiB₂) | 2,800 – 3,000 | Molten aluminum handling, specialized metallurgy | Expensive, sensitive to oxidation | Excellent | Moderate |
| Yttria-Stabilized Zirconia (YSZ) | 2,400 – 2,800 | Extreme temperature applications, aerospace | Costly, limited size availability | Outstanding | High |
Different crucible materials have different temperature tolerances. For example:
- Ceramic crucibles are generally reliable up to about 1500°C.
- Graphite crucibles can handle temperatures well above 3000°C, but they require an oxygen-free environment.
- Platinum crucibles usually maintain their integrity above 1700°C.
- Metal crucibles typically work best between 1000°C and 1400°C.
- Refractory crucibles are built for extreme conditions, often rated for temperatures above 2000°C.
Always consult the manufacturer’s specifications to ensure that the crucible you choose is suited for your particular application.
Chapter 6
Cleaning and Maintaining Crucibles
Proper care can significantly extend the life of your crucible. Whether you’re using it in a laboratory or an industrial setting, following best practices for cleaning and maintenance is essential.
Cleaning
- Ceramic Crucibles: Gently brush off any residue using a soft, non-abrasive tool. Wash with warm water and a mild detergent, then rinse thoroughly with deionized water before air-drying.
- Graphite Crucibles: Clean in an inert atmosphere if possible. Avoid prolonged exposure to water to prevent structural changes.
- Platinum Crucibles: A combination of warm water and ultrasonic cleaning usually works best. Avoid harsh chemicals to maintain the platinum’s surface.
- Metal Crucibles: Use cleaning agents suitable for metal surfaces, and ensure the crucible is thoroughly dried to prevent rust.
- Refractory Crucibles: Follow specific guidelines based on the material, often involving gentle mechanical cleaning or the use of mild solvents.
Maintenance
After every use, allow your crucible to cool naturally before cleaning it to avoid thermal shock. Regular inspections for cracks, oxidation, or other damage are essential. When not in use, store crucibles in a dry, cool, and well-ventilated area with proper cushioning to prevent physical damage.
Chapter 7
Crucibles in the World of Metallurgy
In metallurgy, crucibles are a cornerstone. They’re used to melt raw metals, create alloys, and refine materials. The process begins with the crucible holding the metal while a furnace provides the necessary heat. Uniform heating is crucial here; any inconsistency can affect the quality of the metal. For instance, when melting steel or aluminum, even a small contamination from the crucible could result in defects in the final product.
Crucibles also play a role in casting, where molten metal is poured into molds to create specific shapes. In alloy production, they facilitate the blending of different metals under controlled conditions, ensuring a homogeneous mixture. By carefully monitoring the process within the crucible, metallurgists can remove impurities and achieve higher purity levels.
Chapter 8
Extending the Life of Your Crucible
No matter how well you select and use your crucible, wear and tear are inevitable. However, you can extend its service life by following these practical tips:
- Adhere to Temperature Guidelines: Always use the crucible within its specified temperature limits.
- Avoid Sudden Temperature Changes: Gradual heating and cooling prevent thermal shock.
- Regularly Inspect for Damage: Catching small cracks or signs of oxidation early can prevent larger issues.
- Maintain a Clean Environment: Residual material can accelerate degradation, so keep your crucible clean after each use.
- Store Properly: When not in use, store your crucible in a cushioned, dry area to protect it from physical damage and moisture.
Chapter 9
Crucibles vs. Furnaces: How They Work Together
Although crucibles and furnaces are often mentioned together, they serve very different roles. The crucible is the container that holds your material, while the furnace is the source of heat that brings the process to life.
A furnace’s job is to provide a stable, uniform heat source. Its design ensures that the temperature is evenly distributed across the crucible, which is crucial for processes like metal melting or chemical reactions. On the other hand, the crucible must be able to contain the material without reacting with it or breaking under the intense conditions provided by the furnace. A well-matched pair will result in efficient, safe, and high-quality processing.
Chapter 10
Crucibles in Chemical Experiments
In the laboratory, crucibles are used in a variety of experiments that require high temperatures:
- Melting and Decomposition: Samples can be melted or decomposed in a crucible to isolate certain components for analysis.
- Material Synthesis: New materials, such as advanced ceramics or specialized polymers, are often synthesized in a crucible under controlled conditions.
- Thermal Treatments: Processes like sintering, where materials are heated to alter their properties without fully melting them, rely on the controlled environment that a crucible provides.
- Catalyst Preparation: Crucibles can also be used to prepare catalysts by facilitating high-temperature reactions that generate specific catalytic properties.
Each of these applications requires careful control of temperature and atmosphere, making the right choice of crucible material essential.
Chapter 11
Troubleshooting Common Crucible Issues
Even with proper care, crucibles can develop problems. Here are some common issues and how to address them:
Cracking and Breakage
Cracks often result from thermal shock or mechanical impact. To mitigate this, always allow the crucible to heat and cool gradually, and handle it with care. If you notice any cracks, it’s best to replace the crucible rather than risk a failure during a critical process.
Oxidation and Corrosion
Graphite crucibles, in particular, can oxidize if exposed to air at high temperatures. Using them in an inert atmosphere or applying a protective coating can help reduce oxidation. Additionally, ensure that after each use the crucible is thoroughly dried before storage.
Deformation
Long-term use at high temperatures may lead to deformation. Regular inspections and careful temperature control can help avoid this issue. If deformation is observed, it might be time to consider a replacement to prevent any impact on your process.
Chapter 12
Final Thoughts
Crucibles are more than just containers—they are a critical component of high-temperature processes across many industries. From the early days of metallurgy to today’s advanced chemical and materials research, the right crucible can make all the difference. By understanding the materials, temperature ranges, proper maintenance techniques, and the relationship between crucibles and furnaces, you can ensure optimal performance and longevity of your equipment.
