Spherical Powder
Spherical Powder: Revolutionizing Modern Manufacturing
Spherical powder has emerged as a critical material in advanced manufacturing sectors, particularly in metal additive manufacturing and powder metallurgy. Its unique morphology and controlled properties have made it a preferred choice for producing high-performance components with intricate geometries. In this article, we will delve into the fundamentals of spherical powder—including its production methods, advantages, and quality control aspects—while incorporating key industry terms and addressing frequently asked questions (FAQs).
Table of Contents
Chapter 1
Introduction
Modern manufacturing increasingly depends on the ability to produce materials with exacting standards. Spherical powder has become indispensable because its near-perfect round shape offers exceptional flowability and packing density. These attributes are essential in processes such as metal injection molding, thermal spraying, and additive manufacturing, where uniform layering and precision are paramount.
The rise of advanced manufacturing techniques has spurred the development of several sophisticated methods to produce spherical powder. Whether it is through gas atomization or plasma atomization, the goal is to produce powders that not only meet strict particle size distributions but also possess minimal oxide content—ensuring that they perform consistently in high-demand applications.
In this article, we explore the production processes, applications, quality measurement techniques, and practical considerations for using spherical powder. We also address a comprehensive list of FAQs to provide a complete understanding of this transformative material.
Chapter 2
What Is Spherical Powder?

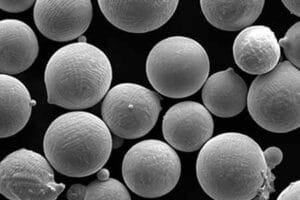

Spherical powder comprises finely divided metal or alloy particles that have a predominantly round shape. The uniformity in shape contributes directly to several advantageous properties:
Excellent Flowability:
The near-perfect spherical form minimizes inter-particle friction, ensuring that the powder flows smoothly through feeders and deposition systems. This is especially critical for automated manufacturing processes where consistent material delivery is essential.High Packing Density:
Spherical particles pack more efficiently than irregular ones. This higher packing density reduces voids and porosity, resulting in parts with improved mechanical strength and overall quality.Consistent Particle Size Distribution:
The manufacturing processes aim to produce powders with a narrow range of sizes, which is vital for predictable melting and solidification during sintering or laser-based additive manufacturing.
These characteristics allow manufacturers to achieve superior mechanical properties such as enhanced tensile strength and fatigue life in both sintered and additively manufactured components.
Chapter 3
Production Methods of Spherical Powder
Gas Atomization
Gas atomization is one of the most common techniques for producing spherical powders. In this process, a molten metal stream is disintegrated into fine droplets by a high-pressure gas. The droplets rapidly cool and solidify into spherical particles. This method offers excellent control over particle size distribution and shape, making it highly effective for producing powders with consistent quality.
Plasma Atomization
In plasma atomization, a high-temperature plasma is used to melt the feedstock. The molten metal is then fragmented by the plasma stream, and the droplets rapidly solidify into spherical forms. Plasma atomization is particularly useful for materials with high melting points and can yield powders with extremely low oxide content.
Other Techniques
While gas and plasma atomization are predominant, other methods such as centrifugal atomization and rotating electrode processes are also employed. These techniques, though less common, offer unique advantages in terms of scalability and cost-effectiveness for specific applications.
Each production method has its own set of benefits and challenges. For example, gas atomization is usually more cost-effective and versatile, whereas plasma atomization often provides superior purity and uniformity—qualities that are critical in high-end applications like aerospace and medical devices.
Chapter 4
The Role of Spherical Powder in Metal Additive Manufacturing
Metal additive manufacturing, often referred to as 3D printing of metals, relies heavily on the properties of spherical powder. Here’s why spherical powder is so valuable in these processes:
Enhanced Flowability:
The smooth, round particles ensure that the powder spreads evenly across the build platform. This uniform distribution is critical for achieving high-resolution parts with consistent mechanical properties.Optimized Packing Density:
The ability of spherical powders to pack closely together minimizes porosity in the final product, which enhances strength and durability.Controlled Particle Size Distribution:
A consistent particle size ensures predictable melting behavior, which directly influences the precision of the printed components.Reduced Material Waste:
High flowability and packing density lead to fewer defects and lower scrap rates, ultimately reducing production costs.
By addressing these key aspects, spherical powder enables the fabrication of parts with complex geometries and improved performance characteristics—a necessity in high-stakes industries like aerospace, automotive, and healthcare.
Chapter 5
Measurement and Quality Control
FAQ 4: How is the sphericity of powder measured?
Measuring the sphericity of powder is vital to ensure that it meets the specifications required for high-end manufacturing. Techniques typically include:
Optical Microscopy:
High-resolution images are captured and analyzed using specialized software that calculates shape parameters such as circularity and aspect ratio.Scanning Electron Microscopy (SEM):
SEM offers detailed insights into particle morphology, enabling precise evaluation of surface features and deviations from a perfect sphere.Laser Diffraction:
While primarily used for particle size analysis, laser diffraction can also provide indirect insights into shape by examining how light scatters through the powder sample.
These methods, particularly when combined with quantitative shape factors, allow manufacturers to maintain stringent quality control over powder morphology.
Chapter 6
Particle Size Distribution and Its Impact
FAQ 5: What is the typical particle size range for spherical powder?
The particle size range for spherical powders can vary widely depending on the application. In metal additive manufacturing, for example, powders typically range from 15 µm to 60 µm. This range strikes a balance between achieving high resolution and ensuring good flowability. While extremely fine powders (below 15 µm) offer enhanced resolution, they may suffer from poor flow due to increased cohesion. Conversely, coarser powders (above 60 µm) might flow better but do not yield the fine detail required for certain applications.
Chapter 7
Applications Across Industries
1. Aerospace Industry
FAQ 6: Which industries use spherical powders the most?
The aerospace industry requires materials that offer strength, durability, and lightweight properties while maintaining high-temperature resistance. Spherical powders contribute to this sector in the following ways:
Additive Manufacturing (AM) for Aircraft and Spacecraft Components:
Jet engine turbine blades and fuel nozzles are produced using selective laser melting (SLM) or electron beam melting (EBM) with spherical titanium, nickel, and cobalt-based powders.

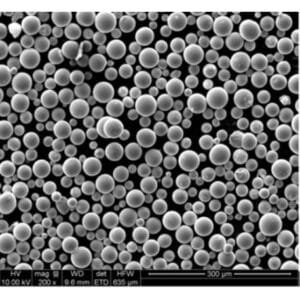

Spherical aluminum and titanium powders are used to print lightweight structural parts, reducing aircraft weight and improving fuel efficiency.
Thermal Barrier Coatings (TBCs):
Ceramic spherical powders (such as Yttria-Stabilized Zirconia, YSZ) are used in thermal spray coatings to protect engine components from extreme temperatures and oxidation.
Rocket and Satellite Components:
High-purity spherical tungsten and molybdenum powders are used in radiation shielding and high-strength structural parts of satellites.
2. Automotive Industry
The automotive sector benefits from the precision, strength, and performance improvements enabled by spherical powders in:
Engine and Transmission Components:
High-performance valves, camshafts, turbocharger rotors, and pistons are manufactured using metal injection molding (MIM) and powder metallurgy (PM) processes with spherical stainless steel and titanium powders.
Spherical iron and copper powders improve wear resistance and thermal conductivity in sintered brake pads and clutch plates.
Electric Vehicle (EV) Battery Manufacturing:
Spherical graphite powders are used in lithium-ion battery anodes, offering higher energy density and cycle life.Spherical nickel and cobalt powders enhance the conductivity and stability of cathode materials.
Lightweight Structural Components:
Spherical aluminum and magnesium powders are used in additive manufacturing to produce lightweight, high-strength suspension arms, brackets, and structural reinforcements, reducing overall vehicle weight and improving fuel efficiency.
3. Medical Devices and Healthcare
Biocompatibility, high purity, and mechanical strength make spherical powders indispensable in the medical field:
Custom 3D-Printed Implants:
Titanium and cobalt-chrome spherical powders are widely used in 3D printing of orthopedic implants (hip and knee replacements), spinal implants, and dental prosthetics to achieve patient-specific designs with excellent osseointegration.
High-Precision Surgical Instruments:
Spherical stainless steel and cobalt-based powders are used to manufacture scalpels, forceps, orthopedic drills, and endoscopic tools, ensuring high strength, wear resistance, and sterilization compatibility.
Biomedical Coatings and Drug Delivery Systems:
Hydroxyapatite (HA) spherical powders are used in plasma spray coatings to improve the bioactivity of implants.
Nano-sized spherical powders are incorporated into controlled-release drug delivery systems, ensuring sustained medication delivery.
4. Consumer Electronics Industry
Miniaturization, high electrical conductivity, and reliability are key demands in electronics manufacturing, where spherical powders are used in:
Micro-Precision Circuit Components:
Spherical copper, silver, and gold powders are used in conductive inks and pastes for flexible circuits, semiconductors, and printed circuit boards (PCBs).
High-purity spherical silicon powders are crucial for semiconductor wafer production.
Thermal Management Solutions:
Spherical aluminum and copper powders are used to fabricate heat sinks and thermal interface materials, improving cooling efficiency in laptops, smartphones, and GPUs.
Battery Electrodes and Supercapacitors:
Spherical lithium, nickel, and cobalt powders enhance charge-discharge efficiency and lifespan in advanced battery and energy storage applications.
5. Energy Sector and Industrial Tooling
Spherical powders contribute to enhanced mechanical properties and durability in high-stress environments:
Gas Turbine and Power Plant Components:
Nickel-based spherical powders are used in additive manufacturing and powder metallurgy to produce high-temperature turbine blades, heat exchangers, and combustion chambers, increasing energy efficiency and reducing maintenance.
Hard Metal and Carbide Tooling:
Tungsten carbide spherical powders are used in drill bits, cutting tools, and wear-resistant coatings to improve hardness and lifespan in machining and mining applications.
Spherical chromium and cobalt powders enhance the performance of welding electrodes and corrosion-resistant coatings for oil and gas pipelines.
Solar and Hydrogen Energy Applications:
Spherical silicon powders are used in high-efficiency photovoltaic cells, improving the performance of solar panels.
Spherical metal hydride powders are applied in hydrogen storage systems, increasing storage density and safety in fuel cells.
Chapter 8
Powder Flowability and Packing Density
FAQ 7: How does powder flowability affect the manufacturing process?
The flowability of powder is a critical factor that influences its performance during processing. Good flowability ensures that the powder can be evenly spread and delivered through automated systems. This consistency is vital in processes like additive manufacturing, where any irregularity can lead to defects such as porosity or layer inconsistencies. In turn, improved flowability leads to enhanced mechanical properties and overall quality of the finished product.
FAQ 8: How does packing density influence the final product?
Packing density refers to how tightly the powder particles are arranged before processing. A higher packing density minimizes voids and porosity, leading to parts with better mechanical strength and surface finish. In processes like metal injection molding and additive manufacturing, consistent packing density is essential for achieving dimensional accuracy and reducing post-processing requirements.
Chapter 9
Oxide Content Control
FAQ 9: How is oxide content controlled in spherical powder?
Controlling oxide content is crucial because excessive oxidation can negatively impact the performance of the final product. Manufacturers implement several strategies to minimize oxide formation:
Use of Inert Atmospheres:
Production methods such as gas atomization and plasma atomization are often carried out in argon or nitrogen atmospheres to limit oxygen exposure.Post-Processing Treatments:
Techniques like annealing or surface cleaning help remove unwanted oxide layers that may form during production.Rigorous Quality Monitoring:
Continuous testing ensures that oxide levels remain within acceptable limits, particularly in high-end applications such as aerospace or medical device manufacturing.
Chapter 10
Production Cost Considerations
FAQ 10: What are the production costs associated with spherical powder?
The cost of producing spherical powder is influenced by several factors, including the production method, material purity, and specific processing requirements:
Gas Atomization:
Generally, gas atomization is more cost-effective, making it a popular choice for mass production. Its scalability allows for consistent production of high-quality powder at lower operational costs.Plasma Atomization:
Although this method can be more expensive due to higher energy consumption and complex process control, it often produces powders with superior properties. This higher cost can be justified in applications where material performance is critical.
Manufacturers must balance these costs against the benefits of improved mechanical properties, reduced defects, and overall process efficiency.
Chapter 11
Key Powder Suppliers
FAQ 11: What are the advantages of spherical powder compared to irregularly shaped powders?
Spherical powders offer several clear advantages:
Enhanced Flowability:
The round shape minimizes friction between particles, ensuring smooth and consistent material flow during processing.Higher Packing Density:
Spherical particles can be packed more closely, reducing porosity and improving the strength and durability of the final product.Uniform Particle Size Distribution:
Tightly controlled manufacturing methods yield a consistent particle size, which is essential for predictable melting and sintering behaviors.Reduced Oxide Content:
The controlled environment during production helps maintain lower levels of oxidation compared to irregular powders.Improved Process Efficiency:
The combined benefits of uniformity and predictability reduce the likelihood of processing defects, leading to higher yields and lower production costs.
Chapter 12
Key Powder Suppliers
FAQ 12: Who are the main suppliers of spherical powder?
A robust supply chain is critical for industries reliant on high-quality spherical powders. Several specialized manufacturers focus on producing metal powders using advanced techniques such as gas and plasma atomization. In addition, many global industrial suppliers now offer a wide range of powder products to meet the diverse needs of additive manufacturing, powder metallurgy, and related applications. When selecting a supplier, manufacturers typically consider the supplier’s ability to consistently meet specifications, offer technical support, and provide reliable delivery schedules.
Chapter 13
Additional Frequently Asked Questions
While our initial FAQs cover many essential aspects, the following additional questions address further nuances of spherical powder technology that were not previously detailed.
FAQ 13: How small can spherical powders be produced?
Advanced production techniques have pushed the limits of how fine spherical powders can be made. While the typical particle size used in most industrial applications ranges from 15 µm to 60 µm, state-of-the-art gas atomization methods have demonstrated the ability to produce powders in the nano-scale range—sometimes as small as 1 to 100 nanometers. However, it’s important to note that for most applications, powders are manufactured in the micron range to balance flowability, ease of handling, and cost-effectiveness.
FAQ 14: What are the limitations of spherical powders?
Despite their numerous advantages, spherical powders have certain limitations that may affect their use in some applications:
Cost:
The specialized production processes (especially plasma atomization) tend to be more expensive compared to methods used for producing irregular powders.Production Volume:
Spherical powder production often yields smaller volumes than conventional powders, potentially limiting supply for very large-scale manufacturing.Oxidation Risk:
During production and handling, there is a risk of oxidation if proper inert atmospheres and protective measures are not maintained.Size Range Constraints:
While spherical powders are ideal for many high-precision applications, the available size ranges may not always meet the specific requirements of every manufacturing process. For certain bulk applications, irregular powders might still be preferred due to lower cost and easier production.

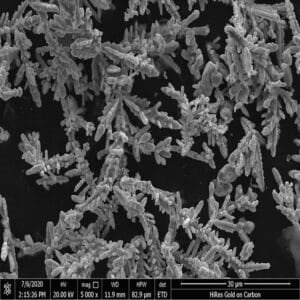

FAQ 15: How are spherical and non‑spherical powders differentiated?
Differentiating spherical from non‑spherical powders is primarily done through quantitative and qualitative assessments:
Quantitative Measurement:
Advanced image analysis software evaluates shape factors—such as circularity, roundness, and aspect ratio—to determine how closely a particle approaches a perfect sphere. Measurements taken via optical microscopy or SEM help in this evaluation.Qualitative Descriptors:
In addition to numerical data, powders are often described using qualitative terms such as “spherical,” “irregular,” “dendritic,” or “popcorn” to provide a visual and tactile context regarding their shape. These descriptors aid in quickly categorizing the powders for various processing requirements.
FAQ 16: Are there health risks associated with spherical powders?
Like any fine particulate material, spherical powders can pose health risks if proper safety protocols are not followed:
Inhalation Hazard:
Fine powders, regardless of shape, can become airborne during handling and processing, posing respiratory risks. Inhalation of these particles may lead to lung irritation or more serious respiratory conditions if exposure is prolonged.Engineering Controls:
To mitigate these risks, industries typically employ strict engineering controls such as proper ventilation, enclosed processing systems, and the use of personal protective equipment (PPE) including respirators.Handling Best Practices:
Establishing standard operating procedures and ensuring that workers are trained in safe handling techniques are essential to minimize exposure risks.
Chapter 14
Conclusion
Spherical powder stands at the forefront of material innovation in modern manufacturing. Its exceptional properties—stemming from its controlled spherical morphology—have enabled significant advancements in metal additive manufacturing, powder metallurgy, and metal injection molding. By ensuring excellent flowability, high packing density, and consistent particle size distribution, spherical powder facilitates the production of components with superior mechanical properties and enhanced reliability.
Throughout this article, we have addressed key questions related to spherical powder—from its production methods (gas atomization, plasma atomization, and more) to the impact of particle size distribution on process performance. The advantages of spherical powders over irregularly shaped powders are clear: they lead to smoother processing, reduced waste, and improved final part quality. Additionally, our detailed discussion on quality control techniques such as optical microscopy, SEM, and laser diffraction underscores the importance of maintaining strict standards in powder production.
The additional FAQs further broaden the discussion by exploring advanced topics such as the nano-scale production of spherical powders, inherent limitations, methods of differentiation between spherical and non‑spherical powders, and critical health and safety measures. Manufacturers and researchers alike must consider these factors when selecting materials and designing processes, as they directly impact the quality, cost, and feasibility of production.
As global industries continue to push the envelope of precision engineering, the role of spherical powder will undoubtedly grow. Whether you are in aerospace, automotive, medical devices, or consumer electronics, understanding the nuances of spherical powder can provide a competitive edge—driving innovations that result in more efficient, reliable, and cost-effective manufacturing solutions.
By maintaining strict quality controls and continually refining production methods, the industry is poised to overcome the current limitations of spherical powders, paving the way for even more sophisticated applications. In this dynamic environment, collaboration with reputable powder suppliers and ongoing research into new production technologies will be key to unlocking the full potential of this transformative material.
In summary, spherical powder is not just a material—it is a cornerstone of modern manufacturing technology. Its ability to improve process efficiency, enhance product performance, and support advanced fabrication methods makes it indispensable for today’s high-performance applications. As the market evolves, so too will the techniques and innovations surrounding spherical powder, ensuring its continued relevance in the rapidly advancing landscape of manufacturing.
