Rotary Sputtering Targets: Advancements, Applications, and FAQs

Rotary sputtering targets have emerged as a transformative technology in the field of thin film deposition. With growing demand for high‐volume, large‐area coatings and cost‐effective manufacturing solutions, these targets are increasingly replacing traditional planar configurations. This article explains the principles behind rotary, rotatable, and rotatory sputtering targets; highlights their role in achieving high target utilization, extended target life, and high power density sputtering; and provides an in-depth FAQ section to address common queries. Key industry terms such as “large area coating,” “thin film deposition,” “plasma spraying target,” “reactive sputtering target,” and “sputtering target manufacturing” are integrated throughout the discussion.

Chapter 1

1. Introduction

Thin film deposition processes are critical to modern manufacturing—whether in the electronics, solar, architectural, or semiconductor industries. Sputtering, a widely used physical vapor deposition (PVD) method, relies on energetic ions that bombard a target material, ejecting atoms that then condense on a substrate to form a film. For many years, planar sputtering targets dominated the industry. However, when it comes to processes such as large area coating or continuous high-volume production, these flat targets often suffer from low material utilization and uneven erosion.

Enter the rotary sputtering target. Sometimes also called a rotatable or rotatory sputtering target, its cylindrical design maximizes the effective use of material, dissipates heat more efficiently, and ultimately offers a cost‐effective sputtering target solution. In addition to increasing throughput and ensuring uniform thin film deposition, rotary targets are a preferred choice when reactive sputtering target processes are employed, as they can handle higher power densities without significant degradation.

This article provides an in-depth analysis of rotary sputtering targets, covering the fundamentals of sputtering, the design and manufacturing methods of rotary targets, and the distinct advantages they offer over traditional planar targets. We also include an FAQ section answering 12 of the most common questions in the industry, along with 12 popular keywords integrated into the discussion.

Chapter 2

2. Fundamentals of Sputtering

2.1 Overview of Thin Film Deposition

Thin film deposition is a process where materials are deposited on a substrate to form a thin, uniform layer. Among various PVD techniques, sputtering stands out due to its versatility and ability to coat diverse materials—from metals to oxides and ceramics. In a typical sputtering process, a target material is bombarded by ions (usually argon) in a plasma environment. These ions dislodge atoms from the target, which then travel through the vacuum chamber and condense on the substrate.

Key terms such as thin film deposition and reactive sputtering target (when reactive gases are added to form compounds) play an important role in tailoring film properties for specific applications. However, for optimal process efficiency, the design and utilization of the sputtering target are critical.

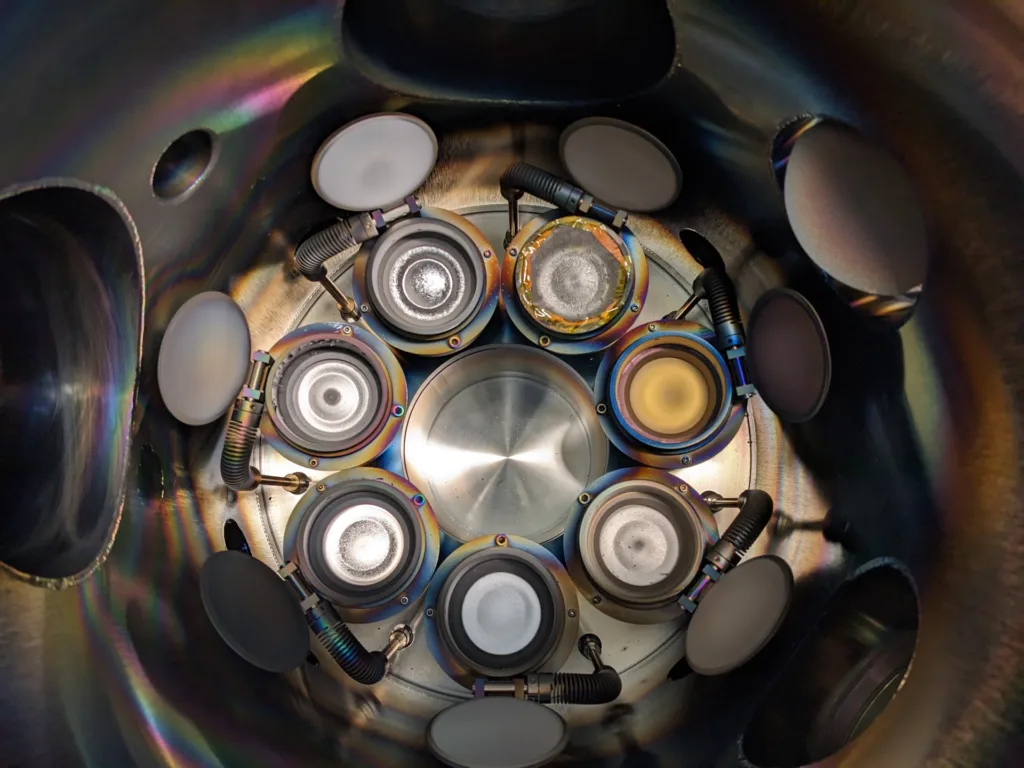

2.2 Planar vs. Rotary Sputtering Targets

Traditional planar sputtering targets have a flat surface, and while they are simple to manufacture, they often present limitations:

Low Material Utilization: Typically, only 20–30% of the target material is consumed because the sputtering occurs mainly within the narrow “race track” created by the magnetic field.
Uneven Erosion: This localized erosion results in a limited lifetime, causing frequent downtime for target replacement.
Thermal Hotspots: Concentrated ion bombardment on a flat surface can lead to localized overheating.

By contrast, rotary sputtering targets feature a cylindrical design that rotates during deposition. This rotation distributes the ion bombardment over a larger surface area, which leads to:

High Target Utilization: Up to 80% of the material can be used.
Extended Target Life: More even erosion profiles extend the operational period before replacement.
Enhanced Heat Dissipation: The rotation helps manage thermal loads and supports high power density sputtering.

Because of these advantages, rotary sputtering targets are increasingly adopted for large area coating and high-volume production processes.

Chapter 3

3. Design Principles of Rotary Sputtering Targets

3.1 Geometric Considerations

The key to a high-performance rotary sputtering target is its geometry. Whether you call it a rotary, rotatable, or rotatory sputtering target, the cylindrical shape is engineered to:

Maximize Surface Area: Increasing the active area available for sputtering ensures that more material is utilized.
Evenly Distribute Ion Bombardment: Rotation minimizes the formation of localized “race tracks” and creates a uniform erosion profile.
Enhance Thermal Management: The continuous rotation spreads out heat, preventing hotspots and reducing thermal stress on the target.

For manufacturers, optimizing dimensions such as thickness and diameter is crucial. A well-designed rotary target balances the need for an extended target life with the ability to handle high power density sputtering.

3.2 Material Selection and Surface Engineering

The choice of target material is driven by the application. Rotary sputtering targets are available in a variety of compositions:

Metals and Alloys: Used extensively in electronics, decorative coatings, and microelectronics.
Oxides: Such as ITO (indium tin oxide) for transparent conductive layers.
Ceramics and Composites: Employed in specialized applications that require durability or high-temperature stability.

The manufacturing process may involve techniques like plasma spraying, casting, extrusion, and hot isostatic pressing (HIP). For instance:

Plasma Spraying Target: In this process, the target material is melted in a plasma torch and sprayed onto a rotating base tube.
Casting/Extrusion: Molten material is poured or forced through a die to form a continuous cylinder.
HIP and Sintering: Particularly for ceramic or composite targets, these methods produce a dense, high-quality product.

Surface engineering is also critical. Achieving a smooth, defect-free surface improves the uniformity of thin film deposition. Advanced treatments and microstructural controls help in obtaining a cost‐effective sputtering target that meets strict purity and performance criteria.

Chapter 4

4. Manufacturing Methods for Rotary Sputtering Targets

Rotary sputtering target manufacturing is a specialized field, combining materials science with precision engineering. Here are the main manufacturing methods:

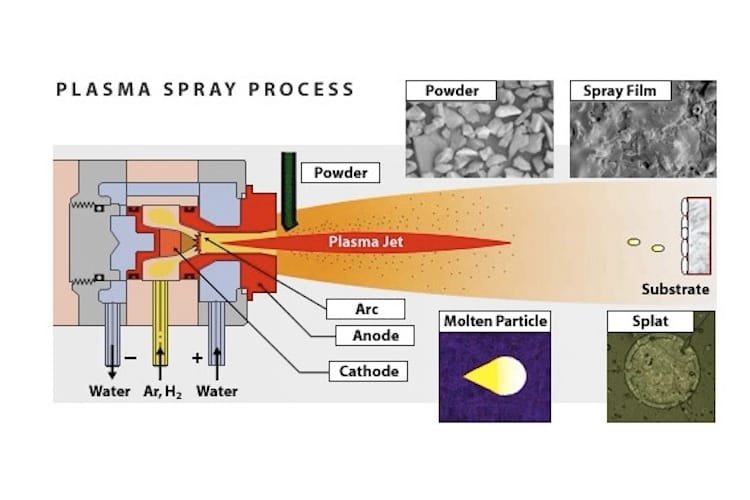

4.1 Plasma Spraying onto Base Tubes

Plasma spraying is one of the most popular techniques:

Process: A cylindrical base tube is prepared, and a plasma torch is used to melt the target material. The molten material is then sprayed onto the tube’s exterior.
Advantages: This method results in targets with excellent adhesion, uniform microstructure, and is particularly suitable for materials like ITO, AZO, and certain metals.
Key Term: The process creates a plasma spraying target that is optimized for consistent deposition.

4.2 Casting and Extrusion

For many metallic targets, casting or extrusion is preferred:

Casting: Molten metal is poured into a mold that forms the cylindrical shape. After solidification, further machining may refine the dimensions.
Extrusion: In extrusion, heated material is forced through a die to produce a continuous rod, which can then be cut to size.
Benefits: These methods yield targets with high purity and excellent density, contributing to extended target life and efficient sputtering target manufacturing.

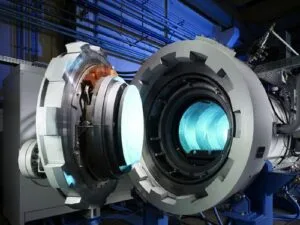

4.3 Hot Isostatic Pressing (HIP) and Sintering

HIP and sintering are essential for producing ceramic and composite rotary targets:

HIP: The target powder is subjected to high temperature and pressure in an inert atmosphere, reducing porosity and enhancing density.
Sintering: The powder is pressed into a shape and then heated (below its melting point) to fuse the particles.
Outcome: These processes provide excellent uniformity and high material utilization, crucial for reactive sputtering targets that require precise stoichiometry.

Quality control throughout the manufacturing process is rigorous. Techniques such as scanning electron microscopy (SEM), X-ray diffraction (XRD), glow discharge mass spectrometry (GDMS), and inductively coupled plasma (ICP) analysis ensure that the final rotary sputtering target meets the stringent demands of modern thin film deposition.

Chapter 5

5. Advantages of Rotary Sputtering Targets

Rotary sputtering targets offer numerous benefits over traditional planar targets. Here, we explore the key advantages:

5.1 High Target Utilization

One of the most compelling benefits is the high target utilization:

Efficiency: Whereas planar targets typically use only 20–30% of the available material, rotary sputtering targets can reach up to 80% utilization.
Economic Impact: Higher utilization means less frequent target changes and lower material costs, making them a cost‐effective sputtering target solution.
Process Consistency: A uniform erosion profile ensures stable deposition rates over extended periods.

5.2 Superior Heat Dissipation

The rotating cylindrical design significantly improves thermal management:

Uniform Temperature: Continuous rotation distributes heat evenly, reducing the risk of hot spots.
Power Density: Enhanced cooling allows for operation at higher power densities, essential for high power density sputtering applications.
Target Life: Improved thermal management contributes to an extended target life, reducing downtime and maintenance costs.

5.3 Increased Throughput and Productivity

For high-volume processes, rotary targets are ideal:

Longer Run Times: Reduced downtime due to fewer target changes increases overall productivity.
Faster Deposition: The ability to handle higher power densities can lead to faster thin film deposition, crucial in large area coating applications.
Economic Benefits: Increased throughput directly translates into lower per-unit production costs.

5.4 Versatility in Material and Application

Rotary sputtering targets are versatile:

Material Diversity: They can be produced in various materials including metals, alloys, oxides, and ceramics.
Application Flexibility: Their use spans multiple industries—architectural glass, automotive coatings, photovoltaics, displays, and semiconductor manufacturing.
Reactive Sputtering: They can be used effectively in reactive sputtering processes, where controlling film composition is critical.

Chapter 6

6. Applications of Rotary Sputtering Targets

Due to their unique design and advantages, rotary sputtering targets have found applications in several key industries.

6.1 Large Area Coating in Architectural and Automotive Industries

For manufacturers of architectural and automotive glass:

Uniform Coatings: Rotary targets ensure that large panels receive uniform thin films, crucial for properties like low-emissivity and UV blocking.
High Throughput: Extended run times and high target utilization improve production rates.
Cost Efficiency: Reduced downtime and better material usage lower overall production costs.

6.2 Thin Film Deposition for Photovoltaic Devices

In the solar industry, deposition uniformity is essential:

Efficient Deposition: The design of rotary targets maximizes material usage while maintaining uniform film thickness.
Scalability: Large area coatings for thin film solar panels are achieved more effectively with rotary targets.
Performance: Enhanced heat dissipation supports higher power densities, leading to faster and more efficient film deposition.

6.3 Display Technologies and Semiconductor Fabrication

Flat-panel displays and semiconductor devices require precision:

Consistent Film Properties: Uniform sputtering results in high-quality, defect-free films.
Adaptability: Rotary targets can be used to deposit conductive, dielectric, or protective films as required.
Product Reliability: The long run times and stable plasma conditions translate into consistent production quality.

6.4 Advanced and Reactive Sputtering Processes

When reactive gases are introduced to form compounds:

Complex Films: Rotary targets enable the deposition of complex materials like oxides and nitrides, even under reactive sputtering conditions.
Uniform Composition: Consistent erosion and temperature control contribute to films with uniform stoichiometry.
Specialized Applications: These targets are used in coatings for advanced optical devices, sensors, and high-performance electronics.

Chapter 7

7. Process Optimization and Challenges

Despite their numerous advantages, integrating rotary sputtering targets into manufacturing processes presents some challenges that engineers must address.

7.1 Achieving Uniformity and Plasma Stability

The cylindrical geometry can lead to variations in the plasma distribution:

Magnetron Design: Optimizing the magnetic field configuration is crucial to ensure that ion bombardment is uniform over the rotating surface.
Real-Time Control: Advanced feedback systems and in-situ diagnostics help maintain stable plasma conditions and consistent deposition rates.
Reactive Processes: When using reactive sputtering target techniques, controlling the reactive gas flow is vital to avoid non-uniform film properties.

7.2 Thermal Management and Cooling

Even with improved design, managing thermal loads remains critical:

High Power Operation: Rotary targets can operate at higher power densities; however, this necessitates robust cooling solutions such as water-cooled backing plates.
Heat Spreading: The rotation aids in even heat distribution, but ensuring that the entire target maintains a stable temperature is essential for long-term performance.
Material Properties: Selecting materials with favorable thermal conductivity and expansion characteristics is important to avoid thermal stress.

7.3 Equipment Integration and Cost Considerations

Transitioning from planar to rotary target systems may require equipment modifications:

Chamber Adaptation: Sputtering chambers might need to be reconfigured to accommodate larger, rotating targets.
Process Re-optimization: Parameters such as power, pressure, and deposition time may need to be recalibrated for optimal performance.
Economic Analysis: Although rotary sputtering targets often come at a higher initial cost, the benefits in productivity, material savings, and lower downtime typically justify the investment.

Chapter 8

8. Future Trends and Research Directions

The sputtering industry continues to innovate, and several trends are poised to shape the future of rotary sputtering targets.

8.1 Development of Advanced Materials

Nanostructured Targets: Research into nanostructured materials may lead to targets with engineered microstructures that enhance deposition efficiency.
Hybrid and Composite Targets: Combining different materials (such as metal-ceramic composites) could result in targets that offer tailored properties for specific applications.
Purity Improvements: Advances in processing techniques will continue to push the boundaries of material purity, crucial for high-end semiconductor and optical applications.

8.2 Integration of Real-Time Process Control

In-Situ Diagnostics: Techniques like optical emission spectroscopy and in-situ ellipsometry are being integrated to monitor plasma conditions and deposition rates in real time.
Machine Learning: Adaptive control algorithms powered by machine learning can adjust process parameters dynamically, ensuring consistent deposition quality even as the target erodes.
Feedback Systems: Advanced feedback loops help maintain stable plasma conditions, optimizing the performance of rotary targets during both DC and reactive sputtering processes.

8.3 Sustainable and Energy-Efficient Manufacturing

Material Utilization: The high target utilization of rotary systems inherently reduces waste, supporting greener manufacturing practices.
Energy Efficiency: Optimizing power consumption during high power density sputtering not only lowers production costs but also reduces the environmental impact.
Recycling Programs: Developing methods to reclaim and recycle target materials—especially precious metals—will contribute to more sustainable production cycles.

8.4 Equipment Modularity and Flexibility

Modular Systems: Future sputtering systems may allow for easier switching between rotary and planar targets, providing flexibility to manufacturers.
Enhanced Cooling Technologies: Innovations in cooling, such as advanced heat sinks or phase-change materials, will further extend target life and improve process stability.
Cost Reduction: As manufacturing processes improve and become more standardized, the overall cost of rotary sputtering target systems is expected to decrease, making them more accessible across various industries.

Chapter 9

9. Frequently Asked Questions (FAQs)

Below are 12 of the most frequently asked questions in the industry regarding rotary sputtering targets. These answers incorporate key terms such as “rotary sputtering target,” “rotatable sputtering target,” “rotatory sputtering target,” “large area coating,” “thin film deposition,” “plasma spraying target,” “high target utilization,” “reactive sputtering target,” “sputtering target manufacturing,” “extended target life,” “high power density sputtering,” and “cost‐effective sputtering target.”

What is a rotary sputtering target?

A rotary sputtering target is a cylindrical (or rotatable/rotatory) target designed for sputtering processes. It is used in thin film deposition, where the target rotates during deposition to ensure uniform erosion and higher material utilization.

How do rotary targets differ from planar sputtering targets?

Unlike planar targets that are flat, rotary targets offer increased surface area for ion bombardment, leading to higher target utilization (up to 80%), improved heat dissipation, and longer operational life. This makes them ideal for large area coating applications.

What are the advantages of using a rotary sputtering target?

Key advantages include high target utilization, extended target life, improved thermal management, and the ability to operate at higher power densities. These benefits contribute to a cost‐effective sputtering target solution for high-volume processes.

Which manufacturing methods are used in sputtering target manufacturing?

Common methods include plasma spraying onto a base tube (creating a plasma spraying target), casting, extrusion, and hot isostatic pressing (HIP)/sintering. These methods are selected based on the material and the desired microstructure.

Can rotary sputtering targets be used for reactive sputtering?

Yes. Rotary targets can be used in reactive sputtering processes (for instance, depositing oxides or nitrides), although maintaining plasma uniformity and controlling reactive gas flows require optimized process parameters.

How does the cylindrical design enhance heat dissipation?

The rotation of the cylindrical target distributes the ion bombardment—and therefore the generated heat—more evenly over its surface, which prevents localized overheating and supports high power density sputtering.

What materials are commonly used in rotary sputtering targets?

They are manufactured from metals, alloys, oxides (such as ITO), ceramics, and even composite materials. The choice depends on the application, whether it is for electronic, optical, or decorative coatings.

How do rotary targets support large area coating?

Their geometry allows for uniform film deposition over extensive surfaces. This is particularly beneficial for applications like architectural glass, solar panels, and display technologies, where uniformity is critical.

What does high target utilization mean and why is it important?

High target utilization means that a larger fraction of the target material is used during sputtering. In rotary targets, this can reach up to 80%, reducing waste, lowering material costs, and extending the target’s lifetime.

How does improved thermal management affect the sputtering process?

Better thermal management reduces the risk of thermal hotspots, enabling operation at higher power densities. This leads to faster deposition rates and enhances overall process stability, resulting in improved film quality.

What challenges exist in using rotary sputtering targets?

Some challenges include maintaining plasma uniformity across a rotating cylinder, integrating rotary target systems into existing sputtering chambers, and optimizing process parameters for reactive sputtering. Advanced control systems and diagnostics help overcome these issues.

How can process optimization with rotary targets lower overall production costs?

By extending target life, reducing downtime for target replacement, and increasing deposition rates, rotary sputtering targets enable higher throughput. This efficiency, combined with improved material utilization, makes them a cost‐effective solution for large-scale thin film deposition.

Chapter 10

10. Conclusion

Rotary sputtering targets have revolutionized the thin film deposition landscape by addressing many of the limitations inherent to traditional planar targets. With their cylindrical design, these targets ensure high material utilization, extended operational life, and superior thermal management. As industries demand uniform, large area coatings—whether for architectural glass, photovoltaics, displays, or semiconductor devices—the advantages of rotary (rotatable/rotatory) sputtering targets become ever more apparent.

Advancements in manufacturing methods such as plasma spraying, casting, extrusion, and HIP/sintering have enabled high-quality, cost‐effective sputtering target manufacturing. These innovations support processes that can handle high power density sputtering while delivering consistent thin film deposition, even under challenging reactive conditions.

Furthermore, integrated process control systems, real-time diagnostics, and advanced cooling technologies are continually enhancing the performance of rotary targets. Future research is focused on developing hybrid materials, adaptive process control algorithms, and more sustainable production practices. These efforts will ensure that rotary sputtering targets remain at the forefront of thin film deposition technology, driving both innovation and efficiency in a variety of industrial applications.

The comprehensive FAQ section provided here answers common industry queries, clarifying key concepts and technical details. As this article has shown, whether you are looking to improve large area coating processes, achieve better heat management for high power density sputtering, or simply lower production costs, rotary sputtering targets offer a promising pathway forward in the ever-evolving field of thin film deposition.
