Crucible Heaters: Comprehensive Guide to Types, Applications, and Technologies
A crucible heater is an essential tool across various industries where high temperatures are required for processing, melting, or refining materials. These heaters provide the controlled heat necessary for performing critical tasks like melting metals, synthesizing chemicals, and manufacturing high-purity glass and ceramics. They are designed to heat crucibles—heat-resistant containers, typically made from graphite, ceramic, or other refractory materials. Crucibles are used to contain materials that are heated to extremely high temperatures, often for extended periods, allowing precise control over their state, chemical composition, or physical properties.
Crucible heaters come in various configurations—electric, induction, and gas-fired—each with specific benefits depending on the type of material to be processed and the scale of the operation. This article will take you through the types of crucible heaters, their applications, the latest technologies driving innovation in the field, and answer some of the most frequently asked questions (FAQs).
Table of Contents
Chapter 1
What is a Crucible Heater?
A crucible heater is a device designed to heat a crucible—typically a vessel made from materials such as graphite, ceramics, or metals—that is used to hold substances that need to be melted, cast, or refined. In most industrial applications, the purpose of the heater is to provide an environment where high temperatures can be controlled and maintained precisely to process various materials.
These heaters can be used in many fields, such as metallurgy, materials science, glass production, and semiconductor manufacturing. Crucible heaters are particularly important because of their ability to generate and control the high temperatures necessary for processes such as melting metal alloys, refining precious metals, sintering ceramic materials, or growing single crystals for semiconductors.
Chapter 2
Types of Crucible Heaters
Crucible heaters come in several different forms, each suitable for various industrial, research, and commercial applications. Below is an in-depth look at the three main types:

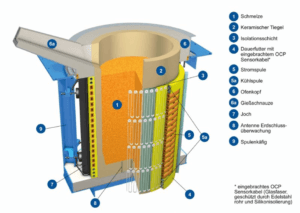

1. Induction Crucible Heaters
Induction heating is an advanced and highly efficient method of heating materials using electromagnetic fields. This method works by generating an alternating magnetic field that induces electric currents within the crucible material, causing it to heat up.
Benefits:
Efficiency: Induction heating is highly efficient because it directly heats the material within the crucible without relying on an external heating element. This reduces energy consumption.
Precision: Induction crucible heaters allow for extremely precise control over temperature, which is important in applications where specific material properties need to be achieved.
Faster Heating: The electromagnetic field directly heats the material, which leads to rapid temperature changes, ideal for industries like metal casting and refining.
Cleaner: Induction heating minimizes contamination, as there are no direct emissions or open flames.
Typical Uses:
Metal Smelting: For metals such as gold, silver, copper, and aluminum, induction heating ensures uniform melting, critical for producing high-quality metal alloys.
Semiconductor Manufacturing: Induction heaters are used for growing crystals or refining semiconductor materials, where precision is key.
2. Electric Crucible Heaters
Electric crucible heaters use electrical resistance to generate heat. The crucible is heated by an electrical heating element, typically composed of resistance wire such as nichrome or tungsten. The electricity flows through the resistance element, generating heat that is transferred to the crucible.
Benefits:
Versatility: Electric crucible heaters come in a wide range of sizes, making them suitable for both small-scale and large-scale applications.
Ease of Use: These heaters are easy to operate and maintain, with simpler control systems that regulate temperature.
Availability: Electric crucible heaters are more common and affordable than induction-based heaters, making them suitable for a wider range of industries, including research and development.
Typical Uses:
Laboratories: In labs where precise temperature control is required, electric crucible heaters are commonly used for melting chemicals, testing material properties, and conducting experiments.
Small-Scale Metal Casting: For small-scale metal casting operations where larger, industrial-scale induction systems might not be cost-effective, electric crucible heaters are often employed.

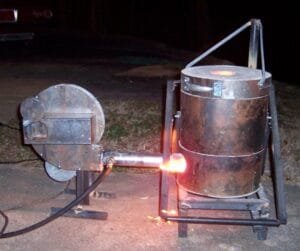

3. Gas-Fired Crucible Heaters
Gas-fired crucible heaters operate by using natural gas or propane to produce heat. These are typically used in large-scale industrial applications, where electric or induction heating might be too expensive or unnecessary. In gas-fired heaters, the crucible is heated by a gas burner that ignites the fuel and produces hot gases that heat the crucible.
Benefits:
Cost-Effective for Large Operations: Gas-fired crucible heaters are cheaper to operate than electric or induction systems in large-scale production environments, as natural gas or propane is often less expensive than electricity.
High Temperature: These systems can achieve very high temperatures, making them suitable for melting metals with high melting points, such as steel or iron.
Durability: Gas-fired heaters are typically robust and can handle high-volume heating tasks over extended periods.
Typical Uses:
Foundries: In metal casting foundries, gas-fired crucible heaters are often used to melt metals like steel, copper, or brass.
Ceramic Processing: Gas-fired systems are sometimes used in the sintering and firing of ceramics, where the material is heated to extremely high temperatures to enhance strength.
Chapter 3
Applications of Crucible Heaters
Crucible heaters are indispensable tools in various industries that require precision heating. Here are some of the main application areas:
1. Metal Refining and Smelting
One of the most important applications of crucible heaters is in the refining and smelting of metals. Whether for the production of high-quality alloys, refining precious metals like gold or silver, or creating industrial metals like aluminum, copper, or steel, crucible heaters provide the high temperatures necessary for melting and alloying these metals.
Induction Crucible Heaters are commonly used in metal refining for their ability to heat the material quickly and precisely, making them ideal for processes that require the removal of impurities or the creation of specialized alloys.
Electric Crucible Heaters are often used for smaller-scale metal casting operations, where precision is necessary, but the cost of induction heating may not be justified.
2. Glass Manufacturing
In the glass manufacturing industry, crucible heaters are used to melt raw materials such as silica, soda ash, and limestone to form molten glass. The precise temperature control is vital for ensuring the proper chemical composition of the glass and preventing defects such as bubbles or cracks.
Gas-fired Crucible Heaters are commonly used in large-scale glass production due to their ability to produce and maintain the high temperatures necessary for continuous glass melting.
Electric Crucible Heaters are used in laboratories or smaller-scale glass production for research and development purposes, where temperature control is critical for creating high-quality glass products, including fiber optic cables and optical lenses.
3. Semiconductor Manufacturing
The semiconductor industry relies heavily on crucible heaters for processes such as silicon crystal growth, metallic vapor deposition, and doping. Crucible heaters help achieve the high temperatures needed for melting materials like silicon, gallium, and arsenic to form semiconductors.
Induction Crucible Heaters are often employed in semiconductor manufacturing due to their fast and efficient heating capabilities, which are essential for growing high-purity crystals and producing uniform semiconductor wafers.
4. Laboratory Research and Material Synthesis
Crucible heaters are indispensable tools in research and development, particularly in fields like materials science, chemistry, and metallurgy. They are used for melting materials, sintering powders, and conducting experiments that require controlled high-temperature environments.
Electric Crucible Heaters are widely used in laboratories for their ease of use, portability, and precise temperature control. Researchers rely on these heaters to melt metals, create new alloys, and test materials under high temperatures.
5. Ceramic and Refractory Materials Production
In the production of ceramic and refractory materials, crucible heaters are used to sinter metal powders or to melt ceramic materials. These processes require very high temperatures to alter the material’s properties or to form solid structures.
Gas-fired Crucible Heaters and electric crucible heaters are both widely used in sintering and firing processes for producing high-performance ceramic components, such as those used in aerospace and military applications.
Chapter 4
Technologies and Innovations in Crucible Heater Systems
1. Advanced Temperature Control Systems
Many modern crucible heaters are equipped with sophisticated temperature control systems, often digital or programmable. These systems allow operators to set specific temperature profiles, including ramp rates and hold times, which is particularly useful for processes that require gradual temperature changes.
Digital Controllers offer precise feedback and make it easier to monitor the temperature at all stages of the process.
PID Controllers (Proportional, Integral, Derivative) are often used in industrial systems to ensure precise control and avoid temperature fluctuations.
2. Energy-Efficient Heating Systems
Energy efficiency is a growing concern across industries, and crucible heater manufacturers are designing units that minimize energy consumption. Induction heating, in particular, is known for its energy efficiency, as it minimizes heat loss by directly heating the material. Additionally, energy recovery systems are being incorporated into furnace-type crucible heaters to capture and reuse heat.
High-efficiency insulation in crucible heaters reduces heat loss and minimizes operational costs, which is especially important in large-scale industrial applications.
3. Smart Technology and IoT Integration
Some modern crucible heaters are now equipped with Internet of Things (IoT) technology, allowing for remote monitoring and control. Operators can access real-time data from the heating system, such as temperature, energy consumption, and other performance metrics, through a mobile app or web-based interface.
Remote diagnostics and troubleshooting capabilities help minimize downtime and improve overall system reliability.
4. Safety Features
As crucible heaters operate at extremely high temperatures, safety is a critical consideration. Modern heaters come equipped with a range of safety features, including:
Over-temperature protection: This feature automatically shuts down the heater if the temperature exceeds preset limits, preventing overheating.
Emergency cooling systems: In the event of a failure or power outage, these systems quickly reduce the temperature to safe levels.
Fire-resistant enclosures and temperature sensors are used to safeguard against accidents.
Chapter 5
Advanced Heating Materials for Crucible Heaters

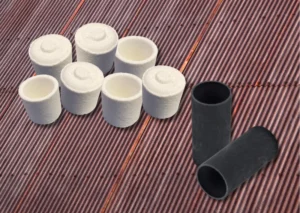

1. Graphite and Ceramic Crucibles
Crucibles are essential for holding the material being heated, and the choice of crucible material directly affects the heater’s performance. Graphite and ceramic crucibles are two of the most commonly used types due to their high-temperature resistance and durability.
Graphite crucibles are excellent for high-temperature applications, such as melting metals like gold, silver, and aluminum. They have high thermal conductivity, which makes them ideal for fast and efficient heating.
Ceramic crucibles, often made from alumina or zirconia, offer superior resistance to thermal shock and are used for materials that are chemically reactive or prone to oxidation at high temperatures.
2. Silicon Carbide (SiC) Crucibles
Silicon carbide (SiC) crucibles are becoming increasingly popular due to their high melting point, excellent thermal conductivity, and durability in aggressive environments. SiC crucibles are often used in applications involving precious metals, semiconductor materials, and high-performance alloys that require precise temperature control and long-lasting equipment.
Advantages: Superior wear resistance, thermal shock resistance, and chemical stability.
Applications: Ideal for industries such as aerospace, automotive, and electronics.
3. Molybdenum Crucibles
Molybdenum is known for its high melting point and strength at elevated temperatures, which makes it suitable for crucibles used in extremely high-temperature applications, such as melting refractory metals and producing thin films in semiconductor manufacturing. Molybdenum crucibles provide high thermal stability and electrical conductivity.
Application: High-performance vacuum deposition and sputtering processes in electronics manufacturing.
Chapter 6
Applications of Crucible Heaters in Various Industries
1. Metal Smelting and Refining
Crucible heaters play an indispensable role in the metal smelting and refining industries. These heaters are used to melt and purify metals such as gold, silver, platinum, copper, and aluminum. The high temperatures and precise control provided by modern crucible heaters enable manufacturers to produce high-quality materials with consistent properties.
Electric and Induction Heaters are preferred for smelting non-ferrous metals due to their high efficiency and ability to precisely control the melting process.
2. Semiconductor Industry
In the semiconductor industry, crucible heaters are employed for processes such as crystal growth, vapor deposition, and thermal treatment of silicon wafers. Induction heating and resistance heating are commonly used methods, with induction heating being particularly effective for ensuring precise temperature control and uniform heating across large surfaces.
Crucibles made from high-purity quartz or ceramic materials are used for growing high-quality silicon crystals and other semiconductor materials.
3. Glass Manufacturing
Crucible heaters are widely used in glass production for melting raw materials and maintaining high temperatures during the forming and shaping of glass products. The ability to maintain consistent heat and prevent thermal shock is crucial in glassmaking, especially in the production of high-performance glass for optical and automotive applications.
Electric resistance and gas-fired crucible heaters are used depending on the scale of production, with electric systems offering cleaner, more energy-efficient solutions.
4. Aerospace and Military Applications
In aerospace and military applications, crucible heaters are used for processing high-performance materials like titanium, superalloys, and other heat-resistant metals. These materials are crucial for applications such as aircraft construction, rocket components, and military-grade hardware. The heaters must maintain extremely high temperatures and be able to withstand extreme environments.
Induction heating offers significant benefits in these industries, as it provides more controlled and precise temperature profiles.
Chapter 7
Smart Technology Integration in Crucible Heaters
1. Remote Monitoring and Control
With the increasing adoption of smart manufacturing technologies, crucible heaters are now equipped with remote monitoring and control systems. This allows operators to access real-time data on heater performance, temperature, energy consumption, and maintenance needs from anywhere using a smartphone, tablet, or desktop computer.
IoT-enabled crucible heaters can communicate with central control systems and send alerts for issues such as overheating, system malfunctions, or low power levels.
2. Predictive Maintenance and Diagnostics
Predictive maintenance is an emerging trend in industrial heating systems, including crucible heaters. Through advanced data analytics and machine learning algorithms, crucible heaters can analyze operational data and predict when components are likely to fail.
This technology helps prevent unexpected breakdowns and extends the service life of the equipment by scheduling maintenance before failure occurs. It also minimizes downtime and optimizes operational efficiency.
Chapter 8
Key Considerations When Selecting Crucible Heaters
1. Temperature Range and Accuracy
The temperature range and accuracy of a crucible heater are critical factors when selecting the right heater for your application. It’s important to choose a system that can reach the necessary temperatures without exceeding them, as overheating can damage the material being processed.
Induction heaters tend to offer higher precision compared to other heating methods, making them ideal for applications requiring exact temperature control.
2. Material Compatibility
The material of both the crucible and the heater itself must be compatible with the material being processed. Some metals, for example, may require non-reactive crucible materials like graphite or ceramic to avoid contamination.
Crucible heaters designed for use in the electronics or aerospace industries will often use specialized materials to ensure there is no interaction between the heating system and the substances being processed.
3. Energy Efficiency and Cost
Energy efficiency is one of the most important considerations when choosing a crucible heater. More efficient systems reduce overall operating costs and lower energy consumption. Induction heating is generally the most energy-efficient method, but it can also be more expensive than electric resistance heating or gas-fired systems.
Long-term operational costs should be considered alongside the initial purchase price to ensure the system is both economically viable and sustainable in the long run.
Chapter 9
Frequently Asked Questions
What is a crucible heater?
→ A crucible heater is a device designed to heat a crucible (used for melting metals or other materials) to high temperatures, typically in a controlled and uniform manner.
How does a crucible heater work?
→ Crucible heaters use electrical resistance or induction heating to generate heat. The heater surrounds the crucible, providing consistent heat for melting or heating materials inside.
What materials can a crucible heater heat?
→ Crucible heaters are designed for materials like metals (gold, silver, aluminum, etc.), glass, ceramics, and some chemicals, depending on the temperature range.
What is the maximum temperature a crucible heater can reach?
It varies by the heater’s design, but many can reach temperatures up to 2000°C (3632°F) or more.
How do I choose the right crucible heater?
Consider factors such as the material being melted, the maximum temperature needed, the type of heating method (resistance or induction), and the size of the crucible.
What are induction crucible heaters?
Induction crucible heaters use electromagnetic induction to generate heat directly in the crucible, providing efficient and precise heating without direct contact with the heating elements.
Can I use a crucible heater for gold melting?
Yes, crucible heaters are commonly used for gold melting. High-quality graphite or ceramic crucibles are used with electric or induction heaters to melt gold.
Is a crucible heater necessary for melting metals?
While not absolutely necessary, a crucible heater provides better control over the heating process, ensuring a more efficient and uniform melt compared to other methods.
Can a crucible heater be used in a laboratory?
Yes, laboratory crucible heaters are designed for precise temperature control and can be used in scientific experiments, material testing, or research involving high temperatures.
What are the advantages of using a crucible heater over other heating methods?
Crucible heaters offer more controlled and uniform heating, greater efficiency, and are safer than traditional open flame methods, reducing the risk of contamination.
How long do crucible heaters last?
The lifespan of a crucible heater depends on usage, but with proper maintenance, it can last many years. Heating elements may need replacing over time.
Where can I buy a crucible heater?
Crucible heaters can be purchased from industrial suppliers, laboratory equipment stores, or specialized online retailers such as TFM or other metallurgy suppliers.
Chapter 10
Conclusion
Crucible heaters have become indispensable across a wide range of industries due to their ability to provide precise and efficient heating for materials with high melting points. With advancements in smart technologies, energy efficiency, and high-performance materials, the future of crucible heaters looks promising. Whether in metal refining, semiconductor production, or glass manufacturing, understanding the latest technologies and innovations will help industries optimize their processes and improve overall production efficiency.
The evolution of crucible heater systems continues to be driven by the demand for sustainability, reliability, and precision, ensuring that these systems will remain critical components in high-temperature manufacturing for years to come.
