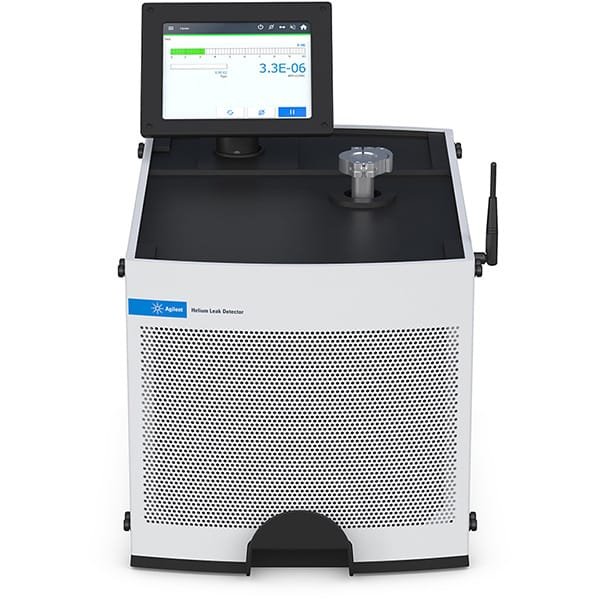

Agilent PR02 and PD03 Portable Leak Detectors
Agilent PR02 and PD03 Portable Leak Detectors
Features
Six different application setup guides assist in configuring your instrument for optimal performance, ensuring that all parameters are properly set for thorough and efficient testing.
The instrument comes with a durable, responsive industrial touch screen that rotates 180° for optimal viewing. This feature enhances usability, allowing users to adjust the screen to their preferred angle.
The clean and intuitive user interface provides immediate access to frequently used features. Its flat menu structure allows for quick navigation, helping you easily find the settings you need.
To simplify first-time use, the startup wizard makes setup easy upon initial power-up.
Enhanced charting capabilities include a zoom feature for close data inspection, color-coded set points, and time-based plots of leak rates and pressure records for better analysis.
A large work surface offers plenty of room for parts, tools, and other essential items required during testing.
Additionally, the improved power-off process keeps the spectrometer under vacuum, protecting the turbomolecular pump and ensuring longevity.
Specifications Table
| Leak Detector Model | PR02 | PD03 |
|---|---|---|
| Backing Pump | Wet | |
| Pumping Speed | He 1.80 L/s Rough 2.00 CFM 3.40 m3/hr | He 1.80 L/s Rough 3.00 CFM 5.10 m3/hr |
| Detectable Masses AMU | 4 | 4 |
| Mass Spectrometer | 180° Magnetic Sector Field | |
| Ion Source | Two yttrium coated iridium magnetic filaments | |
| Inlet Flange | KF25 | |
| Smallest Detectable Leak Rate | Helium Vacuum Operation < 5 x 10-12 mbar*L/s | Helium Vacuum Operation < 5 x 10-12 mbar*L/s |
| Units of Measurement | Leak Rate mbar*L/s Pa*m^3/s Torr*L/s atm*cc/s s*ft^3/yr | Leak Rate mbar*L/s Pa*m^3/s Torr*L/s atm*cc/s s*ft^3/yr |
| Leak Rate Display Area Min | 5.000 x 10-12 mbar*L/s | |
| Time Constant | Leak Signal < 0.50 seconds | |
| Inlet Pressure | max 13.0 mbar 1300 Pa 13.0 hPA 9.00 Torr | max 13.0 mbar 1300 Pa 13.0 hPA 9.00 Torr |
| Languages | English Chinese | English Chinese |
| Dimensions in. (mm.) | 27.0 x 16.0 x 21.0 ( 625 x 403 x 517 ) | |
| Weight Lbs (kg) | 77.0 ( 35.0 ) |
