Chromium Tube
At TFM, with our expertise in manufacturing Chromium and Chromium Alloy Tubes to exacting standards and our unwavering commitment to quality assurance, we stand ready to meet the diverse needs of our customers, delivering excellence and innovation in every Chromium Tube we produce.
Chromium Tube Pipe
Material: Chromium, CAS # 7440-47-3
Purity: Cr 99.8%, 99.95%, 99.98%, 99.99% or Cr Alloy
Density: 7.18 g/cc
Temperatures: 1,900°C M.P., 2,672°C M.P.
Form: Ring, Tube, Pipe
Chromium Ring
Material: Chromium, CAS # 7440-47-3
Purity: Cr 99.8%, 99.95%, 99.98%, 99.99% or Cr Alloy
Density: 7.18 g/cc
Temperatures: 1,900°C M.P., 2,672°C M.P.
Form: Ring, Tube, Pipe

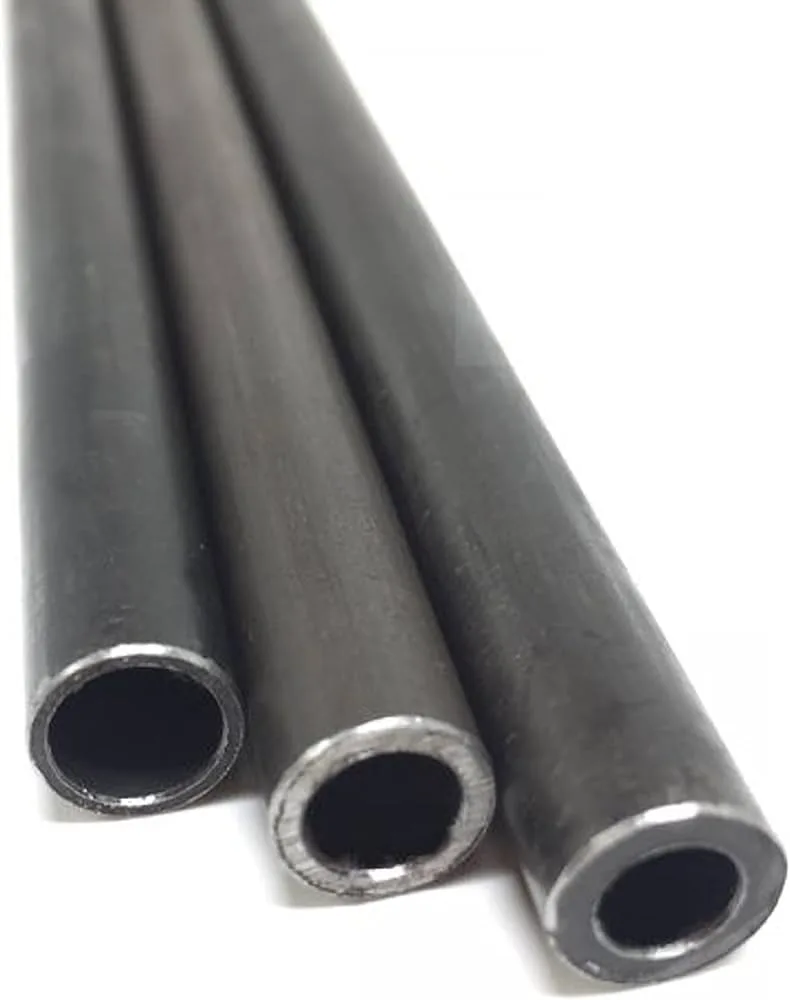

Chromium Alloy Capillary Tube
Material: Chromium Alloys
Alloy Type: Inconel, Duplex, Monel, Incoloy, HastelloyAus Steel, SS Steel
Product Form: Pipe, Capillary Tube
Size: As Listed Below
Nickel Chromium Alloy Tube & Capillary
Material: Nickel Chromium Alloys
Composition: Ni80-Cr20, or Customized
Product Form: Pipe, Capillary Tube
Size: Can be Customized
Nickel Chromium Tube Price Referrence - Extruded Seamless
Outside Diameter | Inside Diameter | Wall Thickness | Maximum Operating Pressure | Overall Length | Price |
1/8 in | 0.055 in | 0.035 in | 9,087 psi @72°F | 6 ft | US$194.41 |
1/4 in | 0.152 in | 0.049 in | 6,918 psi @72°F | 6 ft | US$161.47 |
1/4 in | 0.18 in | 0.035 in | 4,941 psi @72°F | 6 ft | US$128.86 |
3/8 in | 0.277 in | 0.049 in | 4,318 psi @72°F | 6 ft | US$258.38 |
3/8 in | 0.305 in | 0.035 in | 3,084 psi @72°F | 6 ft | US$184.27 |
1/2 in | 0.37 in | 0.065 in | 4,223 psi @72°F | 6 ft | US$324.82 |
1/2 in | 0.402 in | 0.049 in | 3,184 psi @72°F | 6 ft | US$238.37 |
1/2 in | 0.43 in | 0.035 in | 2,274 psi @72°F | 6 ft | US$214.16 |
3/4 in | 0.62 in | 0.065 in | 2,894 psi @72°F | 6 ft | US$636.51 |
1 in | 0.834 in | 0.083 in | 2,779 psi @72°F | 6 ft | US$2,133.66 |
1 in | 0.87 in | 0.065 in | 2,176 psi @72°F | 6 ft | US$675.23 |
Typical Chemical Composition (wt%):
| Composition | Cr | Fe | Al | Si | Cu | S | C | O | N | Pb | P |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Value | 99.95 | 0.025 | 0.0048 | 0.0037 | <0.005 | ≤0.005 | ≤0.02 | ≤0.10 | ≤0.03 | ≤0.001 | <0.005 |
Chromium Tube Properties (Theoretical)
| Molecular Weight | 52 |
|---|---|
| Appearance | Silvery |
| Melting Point | 1857 °C |
| Boiling Point | 2672 °C |
| Density | 7.18 g/cm3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 12.9 microhm-cm @ 0 °C |
| Electronegativity | 1.6 Paulings |
| Heat of Fusion | 3.66 Cal/gm mole |
| Heat of Vaporization | 72.97 K-cal/gm atom at 2672 °C |
| Poisson’s Ratio | 0.21 |
| Specific Heat | 0.107 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 0.939 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 4.9 µm·m-1·K-1 |
| Vickers Hardness | 1060 MN m-2 |
| Young’s Modulus | 279 GPa |
Chromium Alloy Tube Specifications
Description
Crafted from high-purity chromium, the Chromium Tube offers superior corrosion resistance, high strength, and excellent heat transfer capabilities, making it an indispensable solution across numerous industries. The Chromium Tube demonstrates unparalleled performance, reliability, and longevity, whether utilized in hydraulic systems, automotive engineering, heat exchangers, or aerospace components.
Application
Chromium Tubes are versatile components with a wide range of applications across various industries, owing to their unique properties. Some critical applications include:
1. Hydraulic Systems: Chromium Tubes are commonly used in hydraulic systems for their excellent corrosion resistance, high strength, and smooth surface finish. They are employed in hydraulic cylinders, piston rods, and actuators in construction equipment, agricultural machinery, and industrial machinery.
2. Automotive Engineering: Chromium Tubes find applications in automotive manufacturing for components such as shock absorbers, suspension systems, and drive shafts. Their durability, resistance to corrosion, and ability to withstand high loads make them ideal for demanding automotive applications.
3. Heat Exchangers: In thermal management systems, Chromium Tubes are utilized in heat exchangers for their thermal conductivity and resistance to corrosion at elevated temperatures. They are used in HVAC systems, refrigeration units, and industrial cooling applications.
4. Instrumentation and Control Systems: Chromium Tubes are employed in instrumentation and control systems where precise measurement and control of fluids or gases are required. They are utilized in pressure gauges, flow meters, and analytical instruments in laboratories and industrial settings.
5. Aerospace Components: Chromium Tubes find applications in aerospace engineering for structural components, fuel lines, and hydraulic systems in aircraft and spacecraft. Their lightweight, high strength and resistance to corrosion make them suitable for aerospace applications.
6. Medical Devices: Chromium Tubes manufactures medical devices and equipment, such as surgical instruments, catheters, and implantable devices. Their biocompatibility, corrosion resistance, and sterilizability are essential properties in medical applications.
7. Oil and Gas Industry: Chromium Tubes are employed in the oil and gas industry for downhole tools, production tubing, and subsea equipment. Their resistance to corrosion and high-pressure environments make them suitable for use in oil wells and offshore drilling operations.
8. Chemical Processing: Chromium Tubes find applications in chemical processing plants for conveying corrosive fluids, acids, and chemicals. Their resistance to corrosion and chemical degradation ensures the integrity and safety of chemical handling systems.
9. Food and Beverage Industry: In food processing plants, Chromium Tubes are used to convey potable water, beverages, and food products safely and hygienically. Their smooth surface finish and resistance to corrosion make them suitable for use in food-grade applications.
10. Renewable Energy: Chromium Tubes are used in renewable energy systems such as solar thermal collectors and geothermal heat exchangers. Their thermal conductivity and resistance to corrosion make them ideal for transferring heat in renewable energy applications.
Overall, Chromium Tubes play a crucial role in various industries where durability, corrosion resistance, and high performance are essential requirements. They contribute to the efficiency and reliability of systems and equipment in diverse applications.
Packaging
Our Chrome and Chromium Alloy Tubes and Capillaries are clearly labeled externally to ensure efficient identification and quality control. We take great care to prevent damage during storage or transportation.
