Basket Crucible Heaters
Overview
Basket crucible heaters require less power than shielded crucible heaters. These are a good, lower cost option for many materials. Choose a source that best matches the substrate’s area requirements and characteristics or form of material you plan to heat. When heating the same material multiple times, these sources may be satisfactory for more than a single-time use. It’s important to review power requirements and geometry of each source prior to selecting.
Crucible Heaters

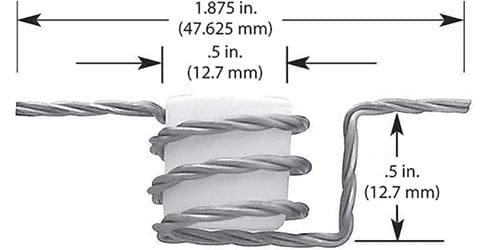

Tungsten Basket Crucible Heater
#226: 3 Wire * Dia.0.635mm/0.025″, 6.28Volt, 47 Amps, 295 Watts
#227: 3 Wire * Dia.0.75mm/0.03″, 6.06Volt, 55 Amps, 333 Watts
Tungsten Basket Crucible Heater
#228: 3 Wire * Dia.0.635mm/0.025″, 5.8Volt, 43 Amps, 249 Watts
#229: 3 Wire * Dia.0.75mm/0.03″, 5.15Volt, 57 Amps, 294 Watts
Tungsten Basket Crucible Heater
#230: 3 Wire * Dia.0.75mm/0.03″, 8.42Volt, 57 Amps, 480 Watts
#231: 3 Wire * Dia.1.000mm/0.04″, 7.18Volt, 85 Amps, 610 Watts
#232: 4 Wire * Dia.0.75mm/0.03″, 7.76Volt, 70 Amps, 543 Watts
Tungsten Basket Crucible Heater
#233: 3 Wire * Dia.1.000mm/0.04″, 8.73Volt, 85 Amps, 742 Watts
#234: 4 Wire * Dia.0.75mm/0.03″, 9.76Volt, 71 Amps, 693 Watts
Tungsten Basket Crucible Heater
#235: 3 Wire * Dia.1.000mm/0.04″, 19.7Volt, 84 Amps, 1655 Watts
Tungsten Basket Crucible Heater
#236: 3 Wire * Dia.0.635mm/0.025″, 6.56Volt, 48 Amps, 315 Watts
#237: 3 Wire * Dia.0.75mm/0.03″, 5Volt, 55 Amps, 275 Watts
Tungsten Basket Crucible Heater
#238: 3 Wire * Dia.0.635mm/0.025″, 4.25Volt, 56 Amps, 238 Watts
