Thermal Filament Tungsten Coils
Select a source that best fits the size and properties of the surface you want to heat or the type of material you want to heat. Some of these sources may be suitable for more than one use if you are heating the same material multiple times. Make sure you check the power requirements and shape of each source before you choose one.
Tungsten Coil (1800°C)

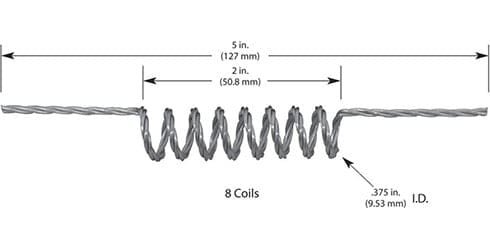

Tungsten Coil Heaters
#098: 1 Wire * Dia. 1.00mm / 0.04″， 3.07 Volt, 36 Amps, 111 Watts
#099: 3 Wires * Dia. 0.635mm / 0.025″， 3 Volt, 42 Amps, 126 Watts
#100: 3 Wires * Dia. 0.762mm / 0.03″， 2.94 Volt, 54 Amps, 159 Watts

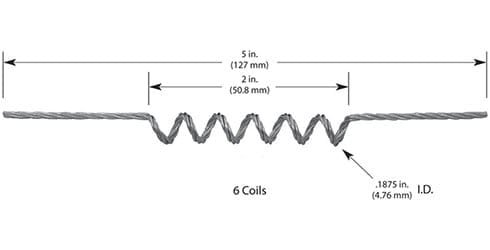

Tungsten Coil Heaters
#101: 3 Wires * Dia. 0.635mm / 0.025″， 3.43 Volt, 49 Amps, 168 Watts
#102: 3 Wires * Dia. 0.762mm / 0.03″， 3.08 Volt, 63 Amps, 194 Watts
#103: 4 Wires * Dia. 0.762mm / 0.03″， 2.7 Volt, 77 Amps, 208 Watts

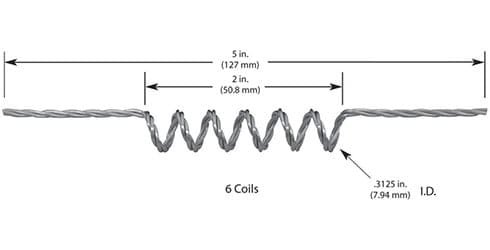

Tungsten Coil Heaters
#104: 1 Wire * Dia. 1.00mm / 0.04″， 3.91 Volt, 39 Amps, 152 Watts
#105: 2 Wires * Dia. 1.00mm / 0.04″， 4 Volt, 68 Amps, 272 Watts
#106: 3 Wires * Dia. 0.635mm / 0.025″, 4.61 Volt, 48 Amps, 221 Watts
#107: 3 Wires * Dia. 0.762mm / 0.03″， 4.15 Volt, 60 Amps, 249 Watts
#108: 4 Wires * Dia. 0.762mm / 0.03″， 4 Volt, 77 Amps, 308 Watts

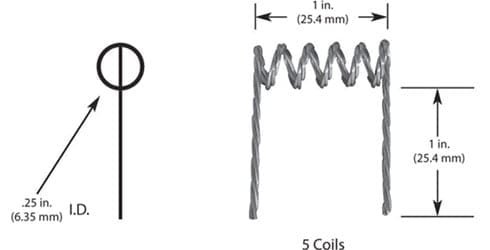

Tungsten Coil Heaters
#105: 1 Wire * Dia. 1.00mm / 0.04″， 3.7 Volt, 38 Amps, 141 Watts
#106: 2 Wires * Dia. 1.00mm / 0.04″， 3.97 Volt, 66 Amps, 262 Watts
#107: 3 Wires * Dia. 0.635mm / 0.025″, 5.29 Volt, 48 Amps, 254 Watts
#108: 3 Wires * Dia. 0.762mm / 0.03″， 4.28 Volt, 62 Amps, 265 Watts
#109: 4 Wires * Dia. 0.762mm / 0.03″， 3.63 Volt, 73 Amps, 265 Watts

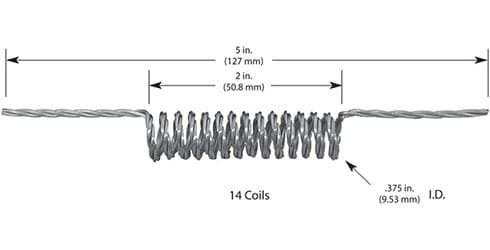

Tungsten Coil Heaters
#110: 1 Wire * Dia. 1.00mm / 0.04″， 6.9 Volt, 37 Amps, 255 Watts
#111: 2 Wires * Dia. 1.00mm / 0.04″， 6.82 Volt, 64 Amps, 436 Watts
#112: 3 Wires * Dia. 0.635mm / 0.025″, 8.05 Volt, 45 Amps, 362 Watts
#113: 3 Wires * Dia. 0.762mm / 0.03″， 6.58 Volt, 57 Amps, 375 Watts
#114: 3 Wires * Dia. 1.00mm / 0.04″， 5.6 Volt, 83 Amps, 465 Watts
#115: 4 Wires * Dia. 0.762mm / 0.03″， 6.1 Volt, 69 Amps, 421 Watts
Tungsten Coil Heaters
Tungsten Coil Heaters
#121: 2 Wires * Dia. 1.00mm / 0.04″， 10.97 Volt, 55 Amps, 603 Watts
#122: 3 Wires * Dia. 0.762mm / 0.03″， 11.65 Volt, 52 Amps, 606 Watts
#123: 3 Wires * Dia. 1.00mm / 0.04″， 9.4 Volt, 78 Amps, 733 Watts
#124: 4 Wires * Dia. 0.762mm / 0.03″， 10.31 Volt, 65 Amps, 670 Watts
Tungsten Coil Heaters
#125: 2 Wires * Dia. 1.00mm / 0.04″， 5 Volt, 66 Amps, 330 Watts
#126: 3 Wires * Dia. 0.762mm / 0.03″， 5.39 Volt, 62 Amps, 334 Watts
#127: 3 Wires * Dia. 1.00mm / 0.04″， 4.61 Volt, 87 Amps, 401 Watts
#128: 4 Wires * Dia. 0.762mm / 0.03″， 5.09 Volt, 74 Amps, 377 Watts
Tungsten Coil Heaters
#129: 2 Wires * Dia. 1.00mm / 0.04″， 6.66 Volt, 65 Amps, 433 Watts
#130: 3 Wires * Dia. 0.762mm / 0.03″， 6.5 Volt, 57 Amps, 370 Watts
#131: 3 Wires * Dia. 1.00mm / 0.04″， 5.43 Volt, 86 Amps, 467 Watts
#132: 4 Wires * Dia. 0.762mm / 0.03″， 6.07 Volt, 71 Amps, 431 Watts
Tungsten Coil Heaters
#133: 2 Wires * Dia. 1.00mm / 0.04″， 10.2 Volt, 61 Amps, 648 Watts
#134: 3 Wires * Dia. 0.762mm / 0.03″， 10.9 Volt, 55 Amps, 600 Watts
#135: 3 Wires * Dia. 1.00mm / 0.04″， 9.02 Volt, 83 Amps, 749 Watts
#136: 4 Wires * Dia. 0.762mm / 0.03″， 10 Volt, 68 Amps, 680 Watts
Tungsten Coil Heaters
#137: 2 Wires * Dia. 1.00mm / 0.04″， 6.74 Volt, 65 Amps, 438 Watts
#138: 3 Wires * Dia. 0.762mm / 0.03″， 7.07 Volt, 58 Amps, 410 Watts
#139: 3 Wires * Dia. 1.00mm / 0.04″， 5.7 Volt, 87 Amps, 496 Watts
#140: 4 Wires * Dia. 0.762mm / 0.03″， 6.4 Volt, 70 Amps, 443 Watts
Tungsten Coil Heaters
#141: 3 Wires * Dia. 0.635mm / 0.025″， 4.44 Volt, 46 Amps, 204 Watts
#142: 3 Wires * Dia. 0.762mm / 0.03″， 3.82 Volt, 57 Amps, 218 Watts
Tungsten Coil Heaters
#143: 3 Wires * Dia. 0.635mm / 0.025″， 4.44 Volt, 46 Amps, 204 Watts
#144: 3 Wires * Dia. 0.762mm / 0.03″， 3.82 Volt, 57 Amps, 218 Watts
#145: 4 Wires * Dia. 0.762mm / 0.03″， 3.82 Volt, 57 Amps, 218 Watts
Tungsten Coil Heaters
#146: 3 Wires * Dia. 0.762mm / 0.03″， 9.44 Volt, 56 Amps, 529 Watts
#147: 3 Wires * Dia. 1.00mm / 0.04″， 8.2 Volt, 88 Amps, 722 Watts
#148: 4 Wires * Dia. 0.762mm / 0.03″， 8.8 Volt, 68 Amps, 598 Watts
Tungsten Coil Heaters
#149: 3 Wires * Dia. 0.762mm / 0.03″， 11.53 Volt, 57 Amps, 657 Watts
#150: 3 Wires * Dia. 1.00mm / 0.04″， 9.66 Volt, 85 Amps, 821 Watts
#151: 4 Wires * Dia. 0.762mm / 0.03″， 10.63 Volt, 70 Amps, 744 Watts
