Titanium Powder
TFM Engineering offers high-quality Titanium Powder that sets the benchmark in deposition materials. Our finely divided particles are ideal for cutting-edge technologies, including additive manufacturing and powder metallurgy. As a leading manufacturer and supplier, we take pride in delivering exceptional quality and purity that meets the stringent demands of diverse industries.

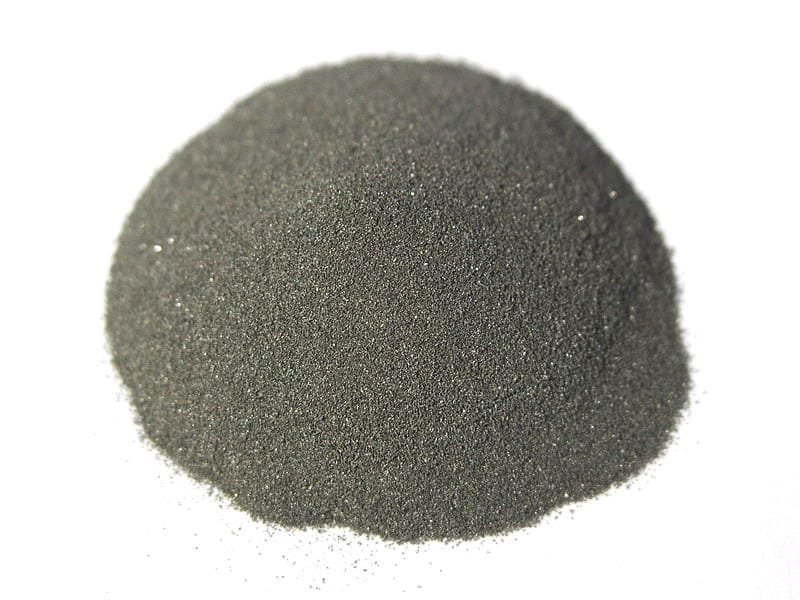

Titanium Powder
Spherical Titanium Powder
Purity: Ti≥99.5%, TA1, TA2, TA3
Shape: Spherical Powder
Particle Size: 0-15μm,15-53μm,45-105μm,75-150μm
Oxygen Content: 800~1,500 ppm
Main Application: 3D Printing (Additive Manufacturing)
| Grade | Ti | Fe | C | N | H | O | Other-Single | Other-Sum. |
|---|---|---|---|---|---|---|---|---|
| TA1 | Balance | 0.2 | 0.08 | 0.03 | 0.015 | 0.18 | 0.1 | 0.4 |
| TA2 | Balance | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | 0.1 | 0.4 |
| TA3 | Balance | 0.3 | 0.08 | 0.05 | 0.015 | 0.35 | 0.1 | 0.4 |

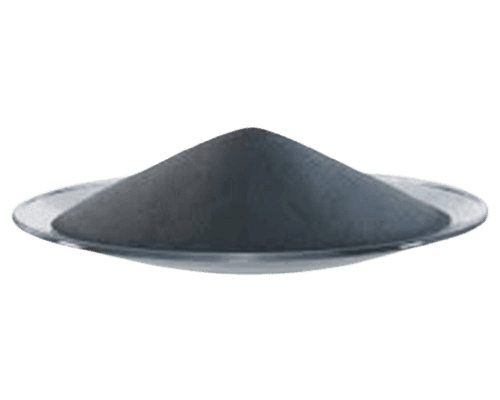

Thermal Spraying Titanium Powder
Purity: Ti≥99.5%
Particle Size: -75µm, 18-90µm, 53-180µm, 90-250µm
Process: HDH Process (hydride – dihydride)

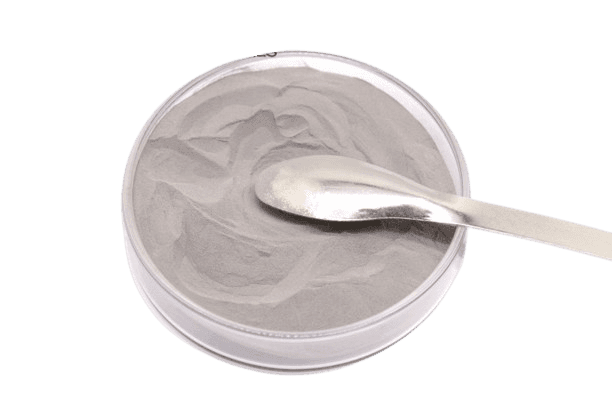

Micro Titanium Powder
Purity: Ti≥99.9%
Density: 4.507 g/cc
Thermal: 1,668℃ M.P., 3,260℃ B.P
Shape: Nearly Spherical
Particle Size: 325 Mesh

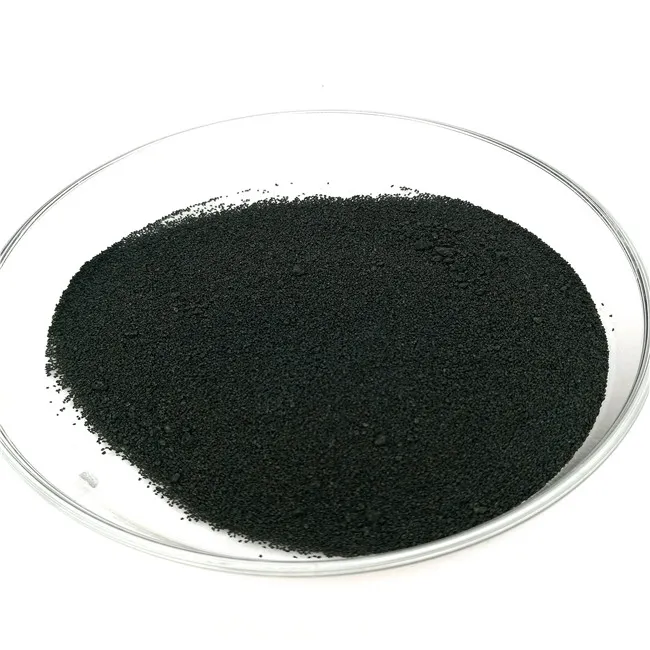

Nano Titanium Powder
Purity: Ti≥99.9%
Specific Surface Area: 15 m2/g
Bulk Density: 0.54 g/cc
Thermal: 1,668℃ M.P., 3,260℃ B.P
Shape: Nearly Spherical
Particle Size: 80nm

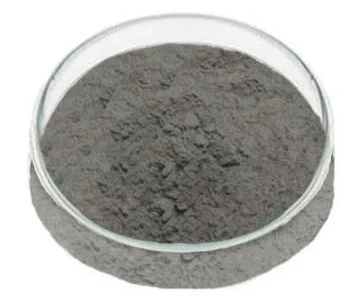

TA1 Spherical Titanium Powder
Composition: Titanium Based, Cu, Sn
Impurities: Fe≤0.20%, C≤0.08%, O≤1,300ppm, N≤300ppm
Shape: Spherical
Particle Size: 15~53µm, 45~105µm
Applications: Aerospace Parts, Aero-Engine Blades, Medical Equipment
Commercially Pure Titanium Spherical Powder (CP Ti)
Composition: Titanium Based, Fe, C, O, N Added
Grade: GR. 1~4
Particle Size: 0~25µm, 15~45µm, 15~53µm, 20~63µm, 45~106µm, 45~150µm, or Customized
Properties of CP Ti Powder
| Grade | Ti | Fe | C | N | H | O | Other-Single | Other-Sum. |
|---|---|---|---|---|---|---|---|---|
| TA1 | Balance | 0.2 | 0.08 | 0.03 | 0.015 | 0.18 | 0.1 | 0.4 |
| TA2 | Balance | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | 0.1 | 0.4 |
| TA3 | Balance | 0.3 | 0.08 | 0.05 | 0.015 | 0.35 | 0.1 | 0.4 |
Chemical Compositions
| Grade | Titanium | Fe | C | O | H | N |
|---|---|---|---|---|---|---|
| Grade 1 | Bal. | 0.20% | 0.08% | 0.18% | 0.02% | 0.03% |
| Grade 2 | Bal. | 0.30% | 0.08% | 0.25% | 0.02% | 0.03% |
| Grade 3 | Bal. | 0.30% | 0.08% | 0.35% | 0.02% | 0.05% |
| Grade 4 | Bal. | 0.50% | 0.08% | 0.40% | 0.02% | 0.05% |
Description
Titanium Powder is finely divided particles of titanium metal. Titanium Metal is a versatile material widely used in various industries due to its unique properties. It is a lustrous and silvery-white transition metal with the atomic number 22 and atomic weight 47.867. Titanium has a melting point of 1,660°C, a density of 4.5 g/cc, and a vapor pressure of 10-4 Torr at 1,453°C. It is known for its excellent corrosion resistance, biocompatibility, and strength-to-weight ratio, making it ideal for various applications.
Titanium Powder is a versatile material with various applications across various industries. It is used in foundries, die castors, pyrotechnics, powder metallurgy, steel production, and thermal spray applications. Titanium Powder is also employed in producing titanium sputtering targets, essential for thin-film deposition processes.
Titanium Properties
| Type | Properties | Metric | English |
|---|---|---|---|
| Descriptive Properties | Titanium, Ti | 100% | 100% |
| CAS Number | 7440-32-6 | 7440-32-6 | |
| Physical | Density | 4.50 g/cc | 0.163 lb/in³ |
| Mechanical Properties | Hardness, Brinell | 70 | 70 |
| Hardness, Vickers | 60 | 60 | |
| Tensile Strength, Ultimate | 220 MPa | 31900 psi | |
| Tensile Strength, Yield | 140 MPa | 20300 psi | |
| Elongation at Break | 54% | 54% | |
| Modulus of Elasticity | 116 GPa | 16800 ksi | |
| Poissons Ratio | 0.34 | 0.34 | |
| Electrical Properties | Electrical Resistivity | 0.0000554 ohm-cm | 0.0000554 ohm-cm |
| Magnetic Susceptibility | 1.25e-6 | 1.25e-6 | |
| Critical Magnetic Field Strength, Oersted | 56 | 56 | |
| Critical Superconducting Temperature | 0.360 – 0.440 K | 0.360 – 0.440 K | |
| Thermal Properties | Heat of Fusion | 435.4 J/g | 187.3 BTU/lb |
| CTE, linear | 8.90 µm/m-°C | 4.94 µin/in-°F | |
| CTE, linear | @Temp. 20.0 – 100 °C | @Temp. 68.0 – 212 °F | |
| CTE, linear | 10.1 µm/m-°C | 5.61 µin/in-°F | |
| Specific Heat Capacity | @Temperature 1000 °C | @Temperature 1830 °F | |
| Specific Heat Capacity | 0.528 J/g-°C | 0.126 BTU/lb-°F | |
| Thermal Conductivity | 17.0 W/m-K | 118 BTU-in/hr-ft²-°F | |
| Melting Point | 1650 – 1670 °C | 3000 – 3040 °F | |
| Optical Properties | Emissivity (0-1) | 0.63 | 0.63 |
*Different grades and compositions may have different properties.
Applications of Titanium Powder
Some typical applications of Titanium Powder include:
- 1. Additive Manufacturing (3D Printing): Titanium powder is often used in additive manufacturing processes, such as 3D printing, to produce intricate and lightweight titanium components for aerospace, medical, and automotive applications.
- 2. Powder Metallurgy: Titanium powder is employed in powder metallurgy processes to create sintered components, offering improved strength, corrosion resistance, and other desirable properties.
- 3. Surface Coatings: Titanium powder can be used in thermal spray processes to apply protective coatings on surfaces, enhancing wear resistance and providing corrosion protection.
- 4. Pyrotechnics and Fireworks: Titanium powder is a key ingredient in pyrotechnic formulations, contributing to the production of bright and sparkling effects in fireworks displays.
- 5. Chemical Reactions and Catalysts: Titanium powder is utilized as a catalyst in various chemical reactions and processes, contributing to the synthesis of certain compounds and facilitating reactions.
- 6. Alloy Production: Titanium powder is a precursor in the production of titanium alloys, which are widely used in aerospace, automotive, and medical applications for their high strength-to-weight ratio and corrosion resistance.
TFM Engineering ensures the quality and purity of our Titanium Powder, catering to the specific needs of industries relying on titanium-related materials. Our commitment lies in providing reliable and high-performance products for various applications.
Packaging
Our Titanium Powders are clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
