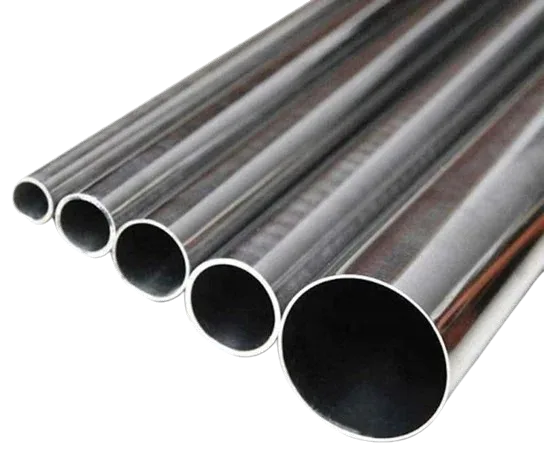

Tantalum Tube
Tantalum Tube, Tantalum Pipe
Material: Tantalum / Tantalum Alloy
Grade: R05200, R05400, R05252(Ta-2.5W), R05255(Ta-10W)
Purity: 99.9%, 99.95%, 99.99%
Standard: ASTM B521-98
Standard Sizes: OD1~150mm, Wall Thick 0.2~5.0mm, Length 10~6,000mm
Other: Material, Size, and Surface Can be Customized
Applications: Reaction Vessel Production, Heat Exchange Pipe, Condensers, Bayonet Heaters, Helical Coils, Thermocouples, Protective Tubes, etc.
Tantalum Capillary
Material: Tantalum / Tantalum Alloy
Grade: R05200, R05400, R05252(Ta-2.5W), R05255(Ta-10W)
Purity: 99.9%, 99.95%, 99.99%
Standard: ASTM B521-98
Standard Sizes: OD0.3~35.0mm, Wall Thick 0.08~1.00mm, Length Tailored
Tolerances: OD +/-0.003mm, Wall Thick +/-0.005mm, Length +/-0.05mm
Other: Material, Size, and Surface Can be Customized
Applications: Platinum Substitute, Filament Lead Tube of the Cathode Insulator in X-Ray Tube, Liquid Tantalum Electrolytic Capacitors
Tantalum Tubing Size Ranges
Outer Diameter | 0.30~150.00mm |
Wall Thickness | 0.08~5.00mm |
Length | <6000mm, Tailored Lengths |
Material | R05200, R05400, R05252, R05255, R05240 |
Standatd | ASTM B521 |
Purity | 99.95% or 99.99%, or Customized |
Tantalum Tubing Price Referrences
- OD8.7mm*ID8.34mm*W.T.0.18mm*100mm US$356.00
Tantalum Tube, Ta 99.9% Min., Length Can be Tailored
- OD1.05mm*ID0.65mm*W.T.0.2mm*500mm US$865.00
Tantalum Capillary, Ta 99.9% Min., Length Can be Tailored
- OD0.31mm*ID0.19mm*W.T.0.06mm*300mm US$802.00
Tantalum Capillary, Ta 99.9% Min., Length Can be Tailored
*Price for reference only. Bulk orders are with factory-direct prices.
Description
Tantalum Tube or Tantalum Pipe is a type of tube made from the rare and highly dense metal tantalum (CAS# 7440-25-7). It is known for its excellent corrosion resistance and good thermal conductivity, making it suitable for various applications, such as heat exchangers, condensers, shell and tube heaters, and high-temperature furnace parts, as well as military satellites, cutting-edge medical technologies, semiconductor and electronics, defense, furnace parts, chemical processing equipment, and medical applications.
Tantalum finds versatile applications in fabricating both welded and seamless tubes/pipes. Producing seamless tantalum tubes/pipes involves techniques such as extrusion, tube reduction, or deep drawing using sheet metal. In contrast, welded tantalum tubes/pipes are manufactured by forming a strip, shaping it into a tube, and welding the joint using gas tungsten arc welding. These seamless or welded tubes cater to a broad spectrum of industrial uses.
There are two types of tubes for Tantalum tubes: seamless tubes and welded tubes. The welded tube is recommended for a thin-wall thickness tube, while for a thicker-wall thickness tube, a seamless tube is recommended. For even smaller-sized tubes, Tantalum Capillary is your choice. The outer surface of the Tantalum Tube is polished, with roughness below 3.2um. The inner surface is up to customers’ unique needs.
Common Specifications
- ASTM B521 R05200 » Electron Beam Melted (unalloyed)
- ASTM B521 R05400 » Powder Metallurgy Grade (unalloyed)
- ASTM B521 R05252 » Tantalum 2.5% Tungsten Alloy
- ASTM B521 R02555 » Tantalum 10% Tungsten Alloy
- ASTM B521 R05240 » Tantalum 40% Niobium Alloy
Available Materials
- Tantalum
- Tantalum 2.5% Tungsten
- Tantalum 7.5% Tungsten
- Tantalum 10% Tungsten
- Furnace Grade Tantalum
- Tantalum 40% Niobium
| Grade | Tensile Strength | Yield Strength | Elongation in 1″ / 2″ Gage Length |
|---|---|---|---|
| bpsi / MPa, ≥ | psi / MPa, ≥ | %, ≥ | |
| R05200 | 30000 (207) | 20000 (138) | 25 |
| R05400 | 30000 (207) | 20000 (138) | 25 |
| R05252 | 40000 (276) | 28000 (193) | 20 |
| R05255 | 70000 (481) | 60000 (414) | 15 |
| R05240 | 40000 (276) | 28000 (193) | 20 |
Applications
Tantalum Tubes, renowned for their exceptional corrosion resistance and thermal stability, find extensive applications across various industries. Some notable uses include:
- 1. Chemical Industry: Tantalum tubes are widely employed in the chemical sector, particularly for handling corrosive acids and reactive chemicals due to their resistance to corrosion.
- 2. Electronics and Semiconductors: Tantalum Tubes play a vital role in the electronics industry, where their high melting point and conductivity make them suitable for manufacturing capacitors and other electronic components.
- 3. Aerospace and Defense: Tantalum Tubes contribute to aerospace applications, including the production of components for satellites and other space exploration equipment, owing to their durability and resistance to extreme conditions.
- 4. Medical Devices: Tantalum Tubes are utilized in medical applications, such as the manufacture of implants and medical devices, benefiting from their biocompatibility and resistance to bodily fluids.
- 5. Energy Industry: In the energy sector, Tantalum Tubes are employed in various capacities, from handling corrosive materials in chemical processes to contributing to the development of high-temperature and corrosion-resistant components.
- 6. Nuclear Applications: Tantalum's ability to withstand harsh environments makes it valuable in nuclear applications, where it can be used in the construction of reactor components.
- 7. Heat Exchangers: Tantalum Tubes are suitable for use in heat exchangers due to their resistance to corrosion and their ability to withstand high temperatures.
- 8. Research and Development: Tantalum Tubes are crucial in laboratory settings and research environments where resistance to corrosion and high temperatures is essential.
In summary, Tantalum Tubes are a critical material in various industries. Their unique properties make them indispensable for applications demanding durability, corrosion resistance, and high performance in challenging environments.
Packaging
Our Tantalum Tube are clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
