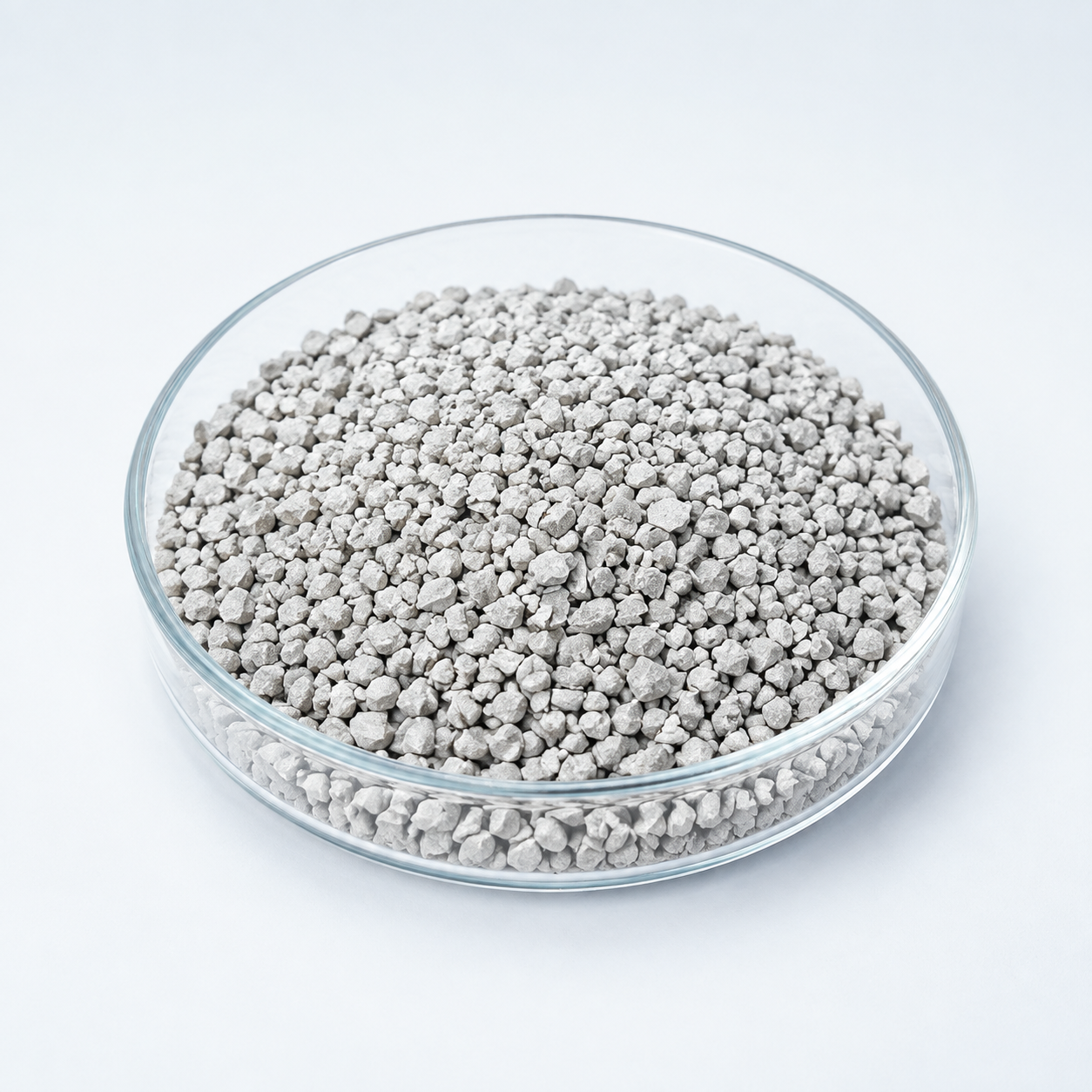

Aluminum (Al) Evaporation Materials

Material: Aluminum Evaporation Material
Formula: Al
Catalog No.: TFM-EVM-0005

Elemental Al source for vacuum evaporation. Specify grade, charge form, source-holder dimensions, and film acceptance tests. Grade, dimensions, assembly, documentation and availability are confirmed in the quotation.

MSDS File

What is an aluminum evaporation material?

Aluminum (Al) evaporation material is an elemental source for Al thin-film deposition. The useful source form depends on the evaporator and holder geometry, while film purity and continuity depend on the actual source, vacuum, substrate, and deposition recipe.

Explore related source materials in the Evaporation Materials catalog.


Evaporation Behavior and Process Considerations

The choice between resistance heating and electron-beam evaporation depends on vapor pressure, melting temperature, source mass, required rate, and the available boat or crucible. Low-to-moderate melting metals may be compatible with resistance heating, while higher-temperature materials can favor e-beam evaporation. Gradual preheating is useful for removing adsorbed gases and establishing a stable evaporation rate before deposition.

Material reference versus order specification

Elemental aluminum melts at approximately 660.32 °C (PubChem element reference). This bulk material property is not an available purity, charge form, size, packaging, or guaranteed evaporation rate. Select source form and acceptance criteria against the actual boat, crucible, or hearth and approved quotation.

How to specify aluminum evaporation material for an RFQ

The following fields define the order and the tests needed to qualify this source; final availability and acceptance criteria belong in the approved quotation or drawing.

DecisionInformation to provide or verify
Material identitySpecify Al grade, relevant trace limits and required lot evidence for the intended layer.
Source and equipment fitProvide thermal or e-beam method, boat/crucible/hearth dimensions, desired charge form and mass, and source-conditioning context.
Film acceptanceDefine film thickness, continuity, adhesion, and impurity measurements needed for the layer stack.

Send the specification and drawing for review. The selected source or target and the deposited film require separate acceptance evidence.

Typical Thin-Film Applications

  • Aluminum (Al) metallic coatings for electronic, optical, conductive, reflective, catalytic, or contact-layer applications
  • Semiconductor and laboratory PVD research
  • Multilayer stacks and co-evaporation processes requiring a pure elemental source

Source Form and Ordering Considerations

For quotation, provide material, purity, source form, particle or piece size, quantity, evaporation method, and any boat, basket, crucible, or e-beam hearth constraints. If the material will be used for a specific coating stack, sharing the intended film thickness or deposition application can help with source-form selection and packaging recommendations.

Frequently Asked Questions

Can Aluminum (Al) be used for thermal evaporation?

It depends on melting point, vapor pressure, charge size, and the source hardware. Many elemental metals can be resistance-heated, while higher-temperature materials are often more convenient to evaporate with an electron beam.

How do I choose between pellets, pieces, and granules for Aluminum (Al)?

Choose a form that loads securely into the boat, crucible, basket, or e-beam pocket and provides stable heating. Smaller pieces can improve packing, while larger pieces may reduce handling and dust.

Why should Aluminum (Al) be preheated before opening the shutter?

Preheating removes adsorbed gases and stabilizes the evaporation flux. This can reduce pressure spikes, spitting, and contamination during the actual film deposition.

Can the crucible material affect Aluminum (Al) evaporation?

Yes. At elevated temperature, the charge can react with, dissolve, wet, or contaminate some source materials. Crucible and boat compatibility should be checked for the actual evaporation temperature.

Does source purity directly affect film purity?

Source purity is one of the main contributors to film contamination, although chamber cleanliness, crucible condition, substrate preparation, and background pressure also affect the final film.

What information should I send TFM for Aluminum (Al) evaporation material?

Please provide purity, preferred source form and size, quantity, evaporation method, source-holder details, and any packaging, inspection, or documentation requirements.

Reviews

There are no reviews yet.

Be the first to review “Aluminum (Al) Evaporation Materials”

Your email address will not be published. Required fields are marked *

FAQ

  • They are high‐purity substances (e.g. metals, alloys, or compounds) used in thermal or electron‐beam evaporation processes to form thin films on substrates.

  • Typically, they’re processed into a form (often ingots, pellets, or wires) that can be efficiently vaporized. Preparation emphasizes high purity and controlled composition to ensure film quality.

  • Thermal evaporation and electron-beam (e-beam) evaporation are the two main techniques, where material is heated (or bombarded with electrons) until it vaporizes and then condenses on the substrate.

  • Thermal evaporation heats the material directly (often using a resistive heater), while e-beam evaporation uses a focused electron beam to locally heat and vaporize the source material—each method offering different control and energy efficiency.

  • Key parameters include source temperature, vacuum level, deposition rate, substrate temperature, and the distance between the source and the substrate. These factors influence film uniformity, adhesion, and microstructure.

  • Evaporation generally produces high-purity films with excellent control over thickness, and it is especially suitable for materials with relatively low melting points or high vapor pressures.

  • Challenges include issues with step coverage (due to line-of-sight deposition), shadowing effects on complex topographies, and possible re-evaporation of material from the substrate if temperature isn’t properly controlled.

  • Common evaporation materials include noble metals (e.g., gold, silver), semiconductors (e.g., silicon, germanium), metal oxides, and organic compounds—each chosen for its specific optical, electrical, or mechanical properties.

  • Selection depends on desired film properties (conductivity, optical transparency, adhesion), compatibility with the evaporation process, and the final device application (semiconductor, optical coating, etc.).

  • Optimizing substrate temperature, deposition rate, and chamber vacuum are critical for ensuring that the film adheres well and forms the intended microstructure without defects.

  • Troubleshooting may involve checking the source material’s purity, ensuring stable source temperature, verifying the vacuum level, adjusting the substrate’s position or temperature, and monitoring deposition rate fluctuations.

While evaporation tends to yield very high purity films with excellent thickness control, it is limited by its line-of-sight nature. In contrast, sputtering can deposit films more uniformly on complex surfaces and is more versatile for a broader range of materials.
