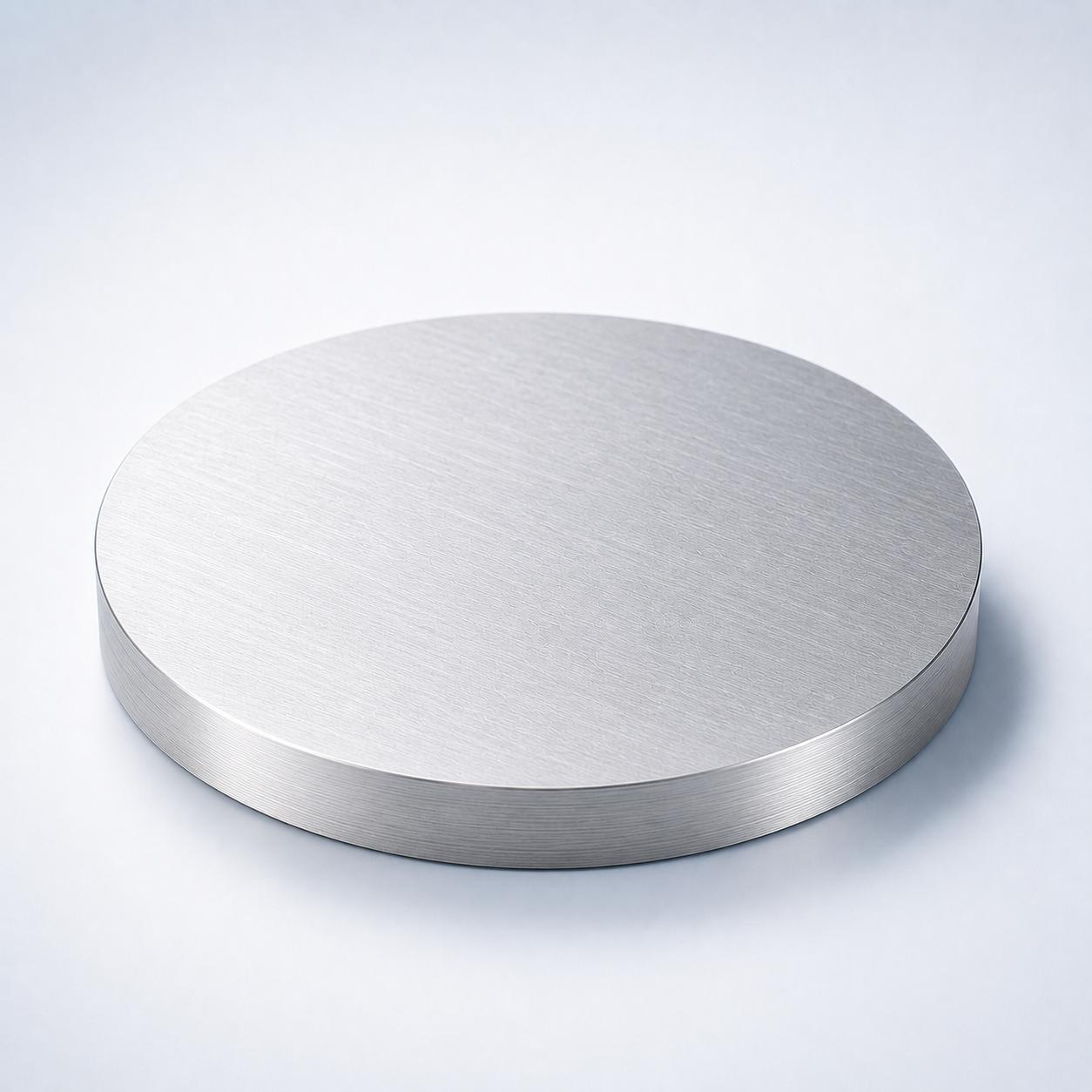

What is an aluminum sputtering target?
An aluminum (Al) sputtering target is an elemental-metal source for Al-containing thin films. Grade, surface condition, target geometry, and the selected process atmosphere should be specified separately from film thickness, adhesion, or electrical acceptance.
Element Aluminum
Bauxit

Material and Deposition Characteristics
Because the target is electrically conductive, DC magnetron sputtering is often applicable, although pulsed-DC or other power modes may also be used depending on the deposition system and film target. For high-specification films, target grain structure, residual stress, and surface preparation can influence erosion uniformity and the morphology of the deposited layer. When higher power loading or system-specific mounting is involved, a bonded target assembly may also be considered.
Element reference versus target specification
Elemental aluminum (Al) melts at approximately 660.32 °C and has a bulk density of approximately 2.70 g/cm³ (PubChem element reference). These constants do not specify a target grade, available dimensions, bond type, operating mode or thin-film acceptance result. Confirm the target and cathode requirements in the approved quotation.
How to specify aluminum sputtering target for an RFQ
The following fields define the order and the tests needed to qualify this target; final availability and acceptance criteria belong in the approved quotation or drawing.
| Decision | Information to provide or verify |
|---|---|
| Material identity | State Al grade, relevant metallic and oxygen-related limits, and the lot evidence needed by the film stack. |
| Target and cathode fit | Provide target diameter or outline, thickness, cathode/backing interface, and operating environment. |
| Film acceptance | Define film thickness, composition, adhesion, and electrical or optical measurements where they are relevant. |
Send the specification and drawing for review. The selected source or target and the deposited film require separate acceptance evidence.
Browse the Sputtering Targets catalog for the broader material and source family.
Typical Thin-Film Applications
- Conductive and reflective aluminum films for semiconductor, display, and optical structures
- Metallization, photovoltaic contacts, and functional thin-film research
- General PVD coatings where a clean, conductive metallic layer is required
Target Configuration and Ordering Considerations
For quotation and manufacturability review, provide target size, thickness, purity or alloy composition, quantity, and the sputtering gun or cathode model if known. If a bonded assembly is required, include backing-plate material, bonding preference, and any dimensional tolerances, surface-finish needs, or inspection-document requirements. TFM can also review customer drawings or old-target samples for replacement builds.
Frequently Asked Questions
Can Aluminum sputtering targets be used with DC magnetron sputtering?
Yes. Conductive metallic targets are commonly processed with DC magnetron sputtering, although pulsed-DC or other modes may also be used depending on the equipment and film objective.
What purity grade should I choose for a Aluminum target?
The required purity should be selected from the contamination limits and performance needs of the deposited film. Higher purity can reduce unwanted impurities, but the optimum grade should match the application rather than default to the highest available level.
Why do density and microstructure matter for Aluminum targets?
Target density, grain structure, and residual stress can influence erosion behavior, process stability, and the morphology of the deposited film. These factors become more important as film-quality requirements become tighter.
Can a Aluminum target be bonded to a copper backing plate?
A copper-backed assembly can be considered if the cathode design requires it, but material, bonding method and availability are order-specific. Provide the target drawing, thermal conditions and acceptance criteria for quotation review.
What are common applications of sputtered Aluminum films?
Typical uses include conductive layers, metallization, reflective or protective coatings, and composition-specific PVD research. The exact application depends on the properties of the element and the final film stack.
What information should I send TFM for a custom Aluminum target?
Please provide target dimensions, thickness, purity, quantity, target style, backing-plate requirement, cathode model if known, and any tolerance, surface-finish, inspection, or documentation requirements.
Prepare your RFQ: Download the fillable Aluminum Sputtering Target, Al RFQ Worksheet (PDF). Enter the required composition or grade, dimensions, backing or bonding request, quantity, documents, and acceptance criteria for quotation review.
