Product Overview

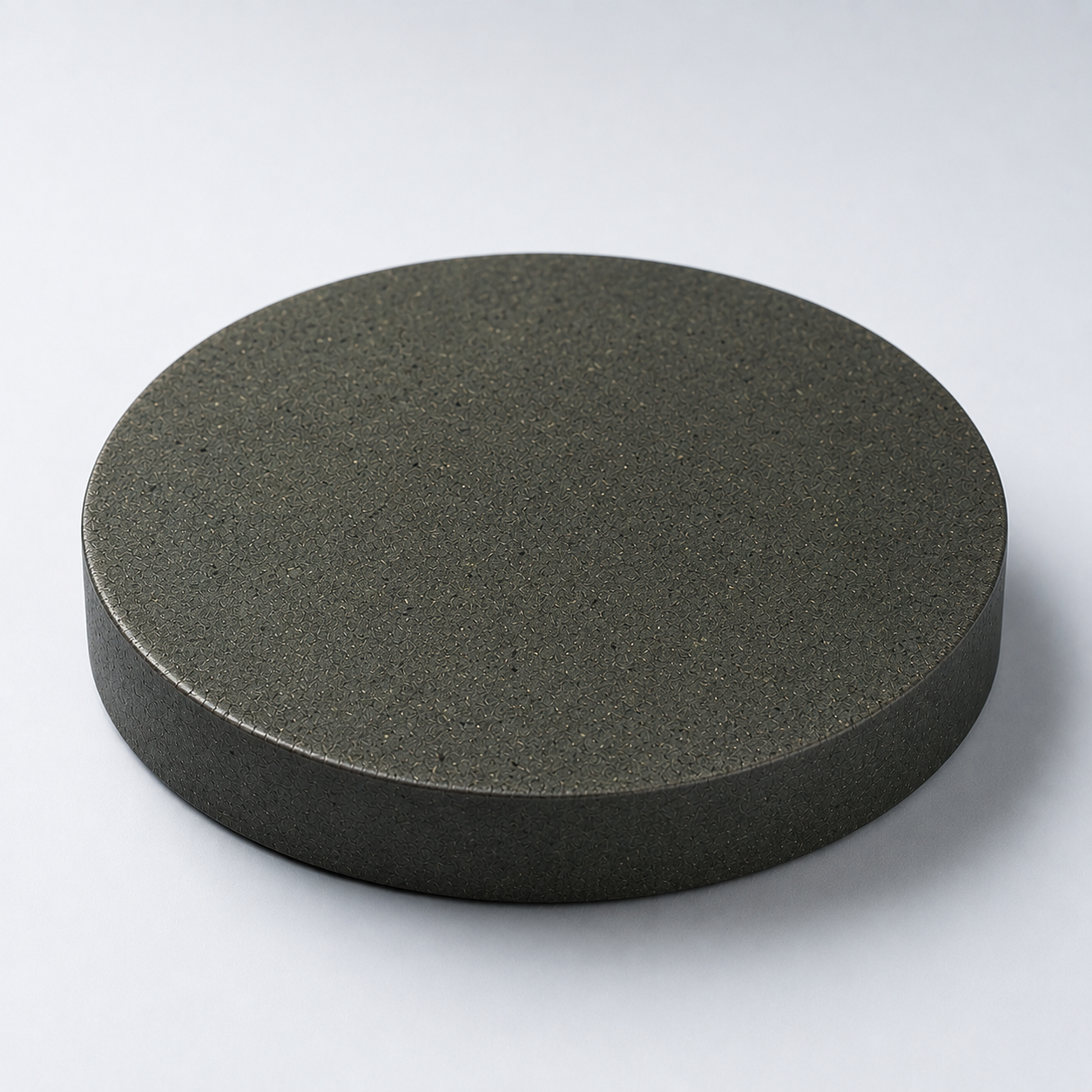

Bismuth Yttrium Iron Garnet (BiY2Fe5O12) Sputtering Target (BiY2Fe5O12) is a ceramic sputtering target used to deposit composition-specific oxide thin films. Compared with metallic targets, oxide targets are typically more sensitive to density, porosity, brittleness, thermal shock, and bonding design. In practice, target microstructure, thickness, cooling conditions, and the chosen sputtering mode can all affect arc stability, particle generation, and deposited-film performance.
Material and Deposition Characteristics
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets, while sufficiently conductive formulations may allow alternative power modes in some systems. Target density and microstructural uniformity matter because pores, cracks, and local inhomogeneities can contribute to unstable plasma, particles, or target damage. For brittle ceramics, bonded assemblies and gradual power ramping are often worth evaluating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Chemical Formula | BiY₂Fe₅O₁₂ | Defines magneto-optical behavior |
| Crystal Structure | Garnet | Enables Faraday rotation effects |
| Purity | 99.9% – 99.99% | Reduces optical loss and defects |
| Diameter | 25 – 300 mm (custom) | Compatible with standard sputter guns |
| Thickness | 3 – 6 mm | Ensures sputtering stability |
| Density | ≥ 95% theoretical | Improves film uniformity |
| Bonding | Optional Cu backing plate | Enhances heat dissipation |
| Material | Key Advantage | Typical Application |
|---|---|---|
| BiY₂Fe₅O₁₂ (Bi:YIG) | Very high Faraday rotation | Magneto-optical devices |
| Y₃Fe₅O₁₂ (YIG) | Low magnetic damping | Microwave & spintronics |
| Ce:YIG | Strong MO response at telecom wavelengths | Optical isolators |
| Question | Answer |
|---|---|
| Can the Bi content be adjusted? | Yes, bismuth substitution levels can be customized upon request. |
| Is RF sputtering required? | RF sputtering is typically recommended for ceramic garnet targets. |
| Can the target be bonded? | Yes, bonding to copper backing plates is available. |
| Is this suitable for research use? | Yes, BiY₂Fe₅O₁₂ targets are widely used in academic and industrial R&D. |
Typical Thin-Film Applications
- Dielectric, insulating, optical, magnetic, protective, or functional ceramic thin films
- Semiconductor, sensor, photonic, and multilayer coating research
- Applications where oxide composition, density, and process stability affect film performance
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
Is Bismuth Yttrium Iron Garnet (BiY2Fe5O12) better suited to RF or DC sputtering?
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets. If a specific formulation is sufficiently conductive, other modes may also be possible, but the equipment and target properties should be confirmed.
Why is density important for a Bismuth Yttrium Iron Garnet (BiY2Fe5O12) target?
Density and microstructural uniformity affect erosion stability, thermal behavior, and particle risk. Pores, cracks, or local density variations can contribute to unstable sputtering and target damage.
Should a Bismuth Yttrium Iron Garnet (BiY2Fe5O12) target be bonded to a backing plate?
Bonding is often useful for brittle oxide targets because it can improve mechanical support and heat transfer. The backing material and bonding method should be chosen according to target size, thickness, and operating conditions.
Will the deposited film always have the same composition as BiY2Fe5O12?
Not always. Film composition can be affected by preferential sputtering, reactive gas, substrate temperature, re-sputtering, and chamber conditions. Composition-sensitive films should be verified after deposition.
How should power be ramped on a brittle Bismuth Yttrium Iron Garnet (BiY2Fe5O12) target?
A conservative power ramp and stable cooling are generally advisable. The exact operating procedure should follow the target size, bonding condition, cathode design, and supplier recommendations rather than a universal wattage.
What information should I provide when ordering Bismuth Yttrium Iron Garnet (BiY2Fe5O12)?
Provide formula or composition, purity, dimensions, quantity, backing and bonding requirements, cathode model or drawing, and any density, tolerance, or inspection requirements.
