Product Overview

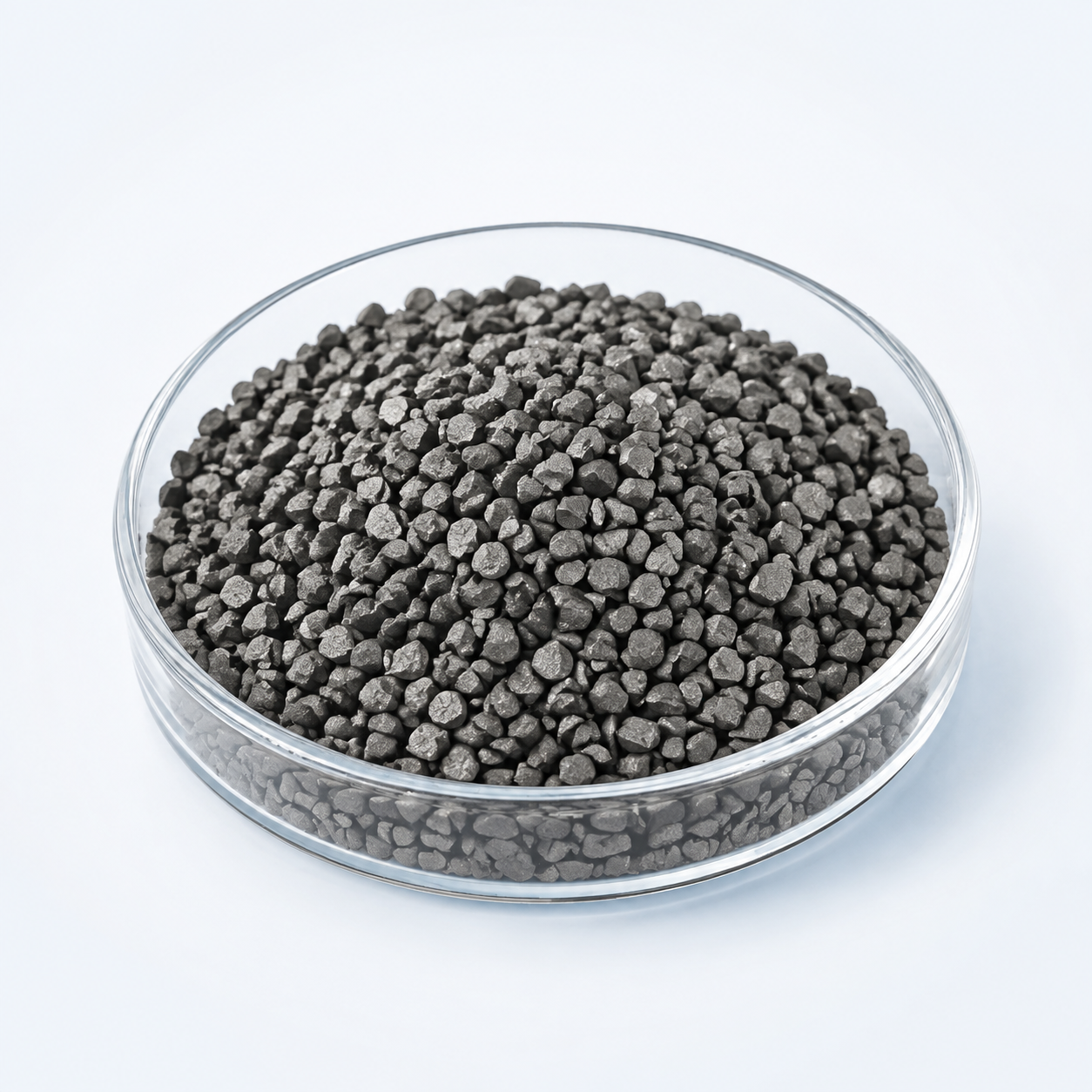

Chromium Nitride Evaporation Materials (CrN) is a high-melting compound evaporation source for specialized thin-film deposition and materials research. Carbides, borides, nitrides, silicides, and related compounds may require electron-beam heating or other high-energy evaporation methods, and some compounds can decompose or change composition before a useful vapor pressure is reached. The evaporation route should therefore be qualified against the required film chemistry rather than assumed to be congruent.
Evaporation Behavior and Process Considerations
These compounds commonly require high-energy evaporation methods such as electron-beam heating. However, high source temperature can also promote decomposition, dissociation, or preferential evaporation. Process qualification should therefore include source-behavior observation and film-composition verification before scaling to long runs.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.5% – 99.99% | Higher purity improves film consistency |
| Form | Pellets / Granules / Pieces | Suitable for various evaporation sources |
| Particle Size | 1 – 6 mm typical | Influences evaporation stability |
| Density | ~6.1 g/cm³ | Important for evaporation rate control |
| Melting Point | ~1770 °C (approx.) | Determines compatibility with high-temperature evaporation |
| Deposition Method | Thermal / E-Beam Evaporation | Compatible with common PVD systems |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Chromium Nitride (CrN) | High hardness and corrosion resistance | Protective and tribological coatings |
| Titanium Nitride (TiN) | Golden color and high hardness | Decorative and tool coatings |
| Chromium (Cr) | Excellent adhesion and corrosion resistance | Adhesion layers and protective films |
| Titanium Aluminum Nitride (TiAlN) | Superior high-temperature stability | High-speed cutting tools |
| Question | Answer |
|---|---|
| Can Chromium Nitride evaporation materials be customized? | Yes, the purity, particle size, and packaging can be customized according to specific deposition systems. |
| What deposition techniques are compatible with CrN evaporation materials? | CrN can be used in thermal evaporation and electron beam evaporation systems. |
| What advantages do CrN coatings offer compared to pure chromium films? | CrN coatings provide higher hardness, better wear resistance, and improved chemical stability. |
| Which industries commonly use CrN coatings? | Automotive, aerospace, tooling, semiconductor, and decorative coating industries. |
| Are CrN coatings suitable for high-temperature applications? | Yes, CrN coatings maintain stability and protective performance at moderately high temperatures. |
Typical Thin-Film Applications
- Hard, refractory, electronic, protective, and specialty compound thin films
- High-temperature or advanced-material coating research
- R&D evaluating decomposition behavior and film stoichiometry under e-beam evaporation
Source Form and Ordering Considerations
For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.
Frequently Asked Questions
Can Chromium Nitride be evaporated by electron beam?
Electron-beam heating is often evaluated for high-melting compounds because it can provide localized high temperature. However, the compound may decompose before evaporating congruently.
Will Chromium Nitride maintain its stoichiometry during evaporation?
Not necessarily. Carbides, borides, nitrides, silicides, and related compounds can dissociate or evaporate preferentially, so film composition should be verified.
Why is source conditioning important for Chromium Nitride?
Gradual conditioning reduces thermal shock, outgassing, and sudden particle ejection while allowing the operator to observe whether the compound remains stable under heating.
What source holder should be used for Chromium Nitride?
The holder must tolerate the required temperature and avoid chemical reaction with the charge. E-beam hearth or compatible crucible selection should be reviewed for the specific material.
Is a pellet or dense piece preferable for Chromium Nitride?
A dense, mechanically stable charge is generally easier to load and condition than loose powder. The ideal form depends on hearth size and the required evaporation rate.
What information should I provide for a Chromium Nitride evaporation-material quotation?
Provide formula, purity, source form, piece or pellet size, quantity, evaporation method, source-holder details, and the intended film composition or application.
