Erbium(III) Fluoride Evaporation Materials

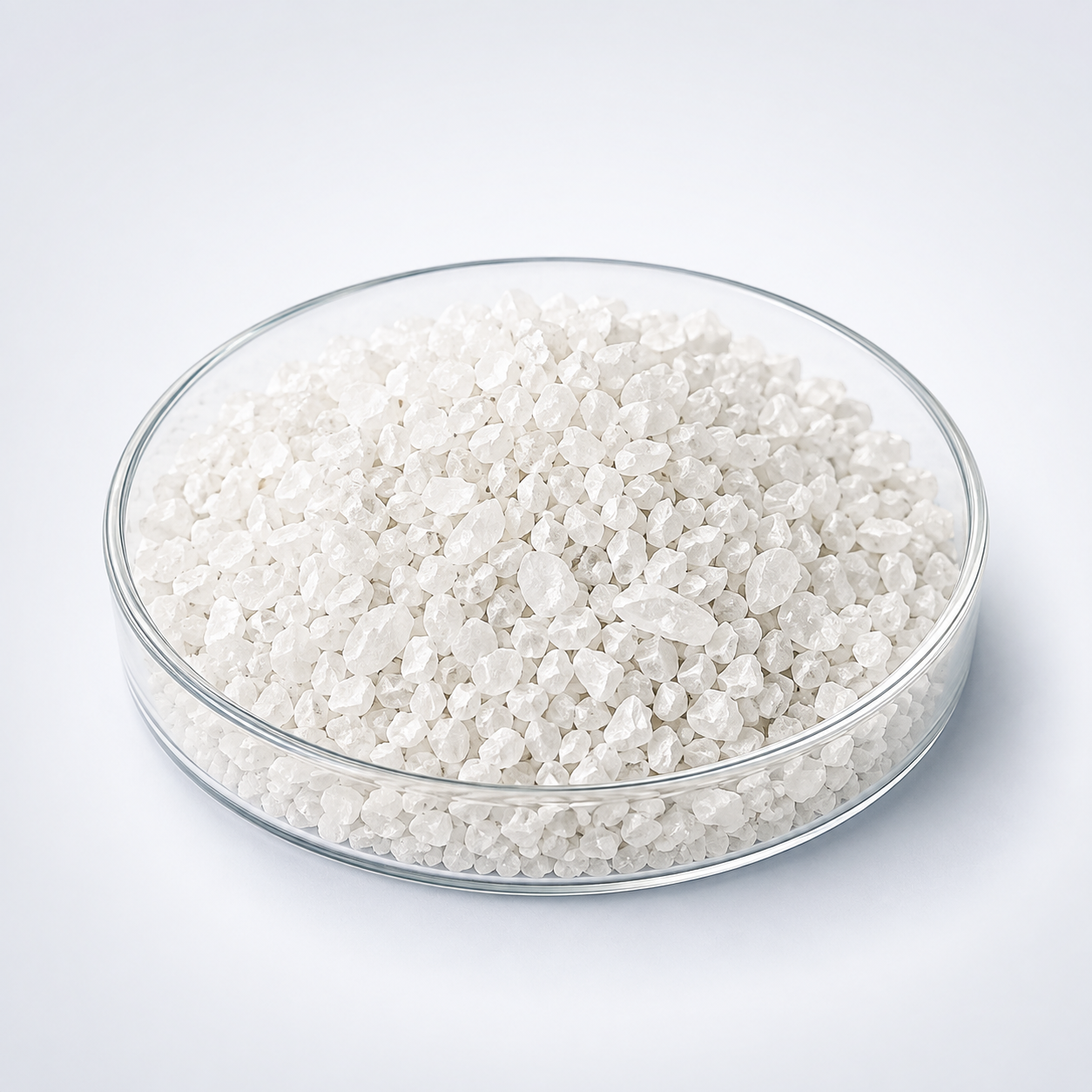

Erbium(III) Fluoride Evaporation Materials, ErF3

Material: Erbium Fluoride (ErF3)
Chemical Formula: ErF3
Catalog No.: TFM-EVM-0112
Purity: 99.9% ~ 99.95%
Shape: Powder/ Granule/ Custom-made

Erbium Fluoride (ErF3) evaporation material is supplied by Thin Film Materials (TFM) for vacuum evaporation and thin-film deposition. Available form, size, purity, and packaging can be customized to suit research and production requirements.

MSDS File

Product Overview

Erbium Fluoride Evaporation Materials (ErF3) is a fluoride evaporation material commonly considered for optical and functional thin-film deposition. Fluoride sources can be sensitive to source cleanliness, moisture pickup, spitting, and crucible compatibility depending on the compound and heating method. A controlled vacuum, gradual preconditioning, and stable evaporation rate help reduce particles and improve repeatability.

Evaporation Behavior and Process Considerations

Fluoride charges should be loaded into compatible, clean source hardware and conditioned gradually. Depending on the material, resistance heating or electron-beam evaporation may be used. Stable vacuum and rate control are important because moisture or trapped gases can increase spitting and film defects during initial heating.

Technical Data

ParameterTypical Value / RangeImportance
Purity99.9% – 99.999% (3N–5N)Improves optical clarity and film stability
Chemical FormulaErF₃Ensures stoichiometric thin film composition
FormPowder / Granules / PelletsCompatible with evaporation systems
Melting Point~1350°CSuitable for thermal and e-beam evaporation
Moisture SensitivityModerate (dry storage required)Prevents hydrolysis and contamination
PackagingVacuum-sealed / inert-packedMaintains chemical integrity
MaterialKey AdvantageTypical Application
Erbium(III) Fluoride (ErF₃)Infrared-active rare earth functionalityPhotonic & IR coatings
Magnesium Fluoride (MgF₂)Excellent low refractive indexAnti-reflection coatings
Lanthanum Fluoride (LaF₃)High transparency and stable fluoride matrixOptical multilayers
Yttrium Fluoride (YF₃)Good chemical stability and optical clarityLaser & optical films
QuestionAnswer
Is ErF₃ suitable for thermal evaporation?Yes, it is compatible with thermal and e-beam evaporation, though careful temperature control is recommended.
Can purity levels be customized?Yes, different purity grades are available depending on optical performance requirements.
Does ErF₃ absorb moisture?It is sensitive to moisture; dry storage and pre-bake procedures are recommended.
What industries use ErF₃ films most?Optical coatings, infrared systems, laser research, and photonic device development.
Are custom sizes available?Yes, particle size and pellet dimensions can be tailored to specific equipment needs.

Typical Thin-Film Applications

  • Optical thin-film stacks and wavelength-control coatings
  • Dielectric, protective, UV, visible, or infrared coating research depending on the fluoride
  • Multilayer designs requiring low-absorption inorganic evaporation materials

Source Form and Ordering Considerations

For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.

Frequently Asked Questions

Is Erbium Fluoride used for optical evaporation coatings?

Many fluoride materials are used in optical thin-film stacks because of their useful refractive-index and transmission characteristics. The actual suitability depends on wavelength range and film design.

Can Erbium Fluoride be thermally evaporated?

Some fluorides can be processed by resistance heating, while others are evaporated by electron beam. The choice depends on melting behavior, vapor pressure, rate requirement, and source compatibility.

Why is gradual preconditioning important for Erbium Fluoride?

Fluoride charges can release adsorbed moisture or trapped gas during initial heating. A slow ramp helps reduce pressure spikes, spitting, and particle defects.

Does crucible material matter for Erbium Fluoride?

Yes. The evaporation source should be chemically and thermally compatible with the fluoride at operating temperature to reduce contamination or reaction.

Can film composition differ from the fluoride source?

It can, depending on dissociation behavior and deposition conditions. Film optical properties should therefore be checked against the coating specification rather than inferred only from source chemistry.

What should I specify when ordering Erbium Fluoride evaporation material?

Provide purity, source form and size, quantity, evaporation method, crucible or boat constraints, and the optical-coating application if relevant.
