MSDS File
Product Overview

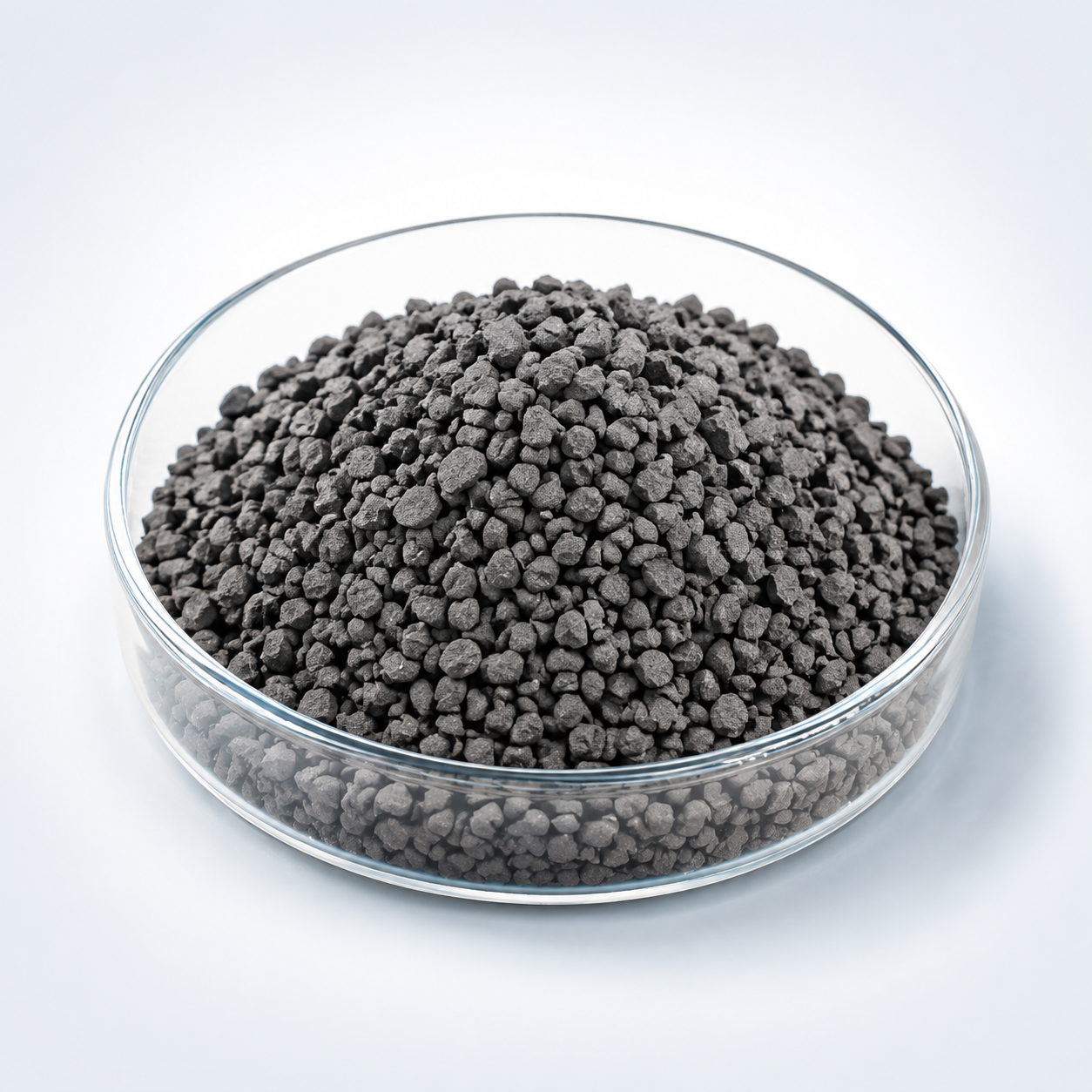

Germanium Nitride Evaporation Materials (Ge3N4) is a high-melting compound evaporation source for specialized thin-film deposition and materials research. Carbides, borides, nitrides, silicides, and related compounds may require electron-beam heating or other high-energy evaporation methods, and some compounds can decompose or change composition before a useful vapor pressure is reached. The evaporation route should therefore be qualified against the required film chemistry rather than assumed to be congruent.
Evaporation Behavior and Process Considerations
These compounds commonly require high-energy evaporation methods such as electron-beam heating. However, high source temperature can also promote decomposition, dissociation, or preferential evaporation. Process qualification should therefore include source-behavior observation and film-composition verification before scaling to long runs.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | Reduces defect density and improves dielectric performance |
| Chemical Formula | Ge₃N₄ | Ensures proper stoichiometry |
| Form | Granules / Pellets / Custom Pieces | Compatible with evaporation systems |
| Deposition Method | Thermal / E-beam Evaporation | Enables controlled thin film growth |
| Oxygen Content | Low ppm-level control | Prevents dielectric degradation |
| Phase Purity | Single-phase compound | Ensures consistent electrical behavior |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Ge₃N₄ | Compatible with Ge electronics | Semiconductor research |
| Si₃N₄ | Mature dielectric material | CMOS insulation |
| AlN | High thermal conductivity | Power electronics |
| GaN | Wide bandgap semiconductor | Optoelectronics |
| Question | Answer |
|---|---|
| Can Ge₃N₄ evaporation materials be customized? | Yes, purity level and physical form can be tailored for specific deposition systems. |
| Is e-beam evaporation recommended? | Yes, e-beam evaporation is often preferred for improved stoichiometric control. |
| Does Ge₃N₄ require special storage? | It should be stored in dry, controlled environments to prevent moisture contamination. |
| What industries use Ge₃N₄ most? | Semiconductor R&D, advanced electronics research, and materials science laboratories. |
| How is the material packaged? | Vacuum-sealed with moisture protection and export-grade cartons for safe transport. |
Typical Thin-Film Applications
- Hard, refractory, electronic, protective, and specialty compound thin films
- High-temperature or advanced-material coating research
- R&D evaluating decomposition behavior and film stoichiometry under e-beam evaporation
Source Form and Ordering Considerations
For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.
Frequently Asked Questions
Can Germanium Nitride be evaporated by electron beam?
Electron-beam heating is often evaluated for high-melting compounds because it can provide localized high temperature. However, the compound may decompose before evaporating congruently.
Will Germanium Nitride maintain its stoichiometry during evaporation?
Not necessarily. Carbides, borides, nitrides, silicides, and related compounds can dissociate or evaporate preferentially, so film composition should be verified.
Why is source conditioning important for Germanium Nitride?
Gradual conditioning reduces thermal shock, outgassing, and sudden particle ejection while allowing the operator to observe whether the compound remains stable under heating.
What source holder should be used for Germanium Nitride?
The holder must tolerate the required temperature and avoid chemical reaction with the charge. E-beam hearth or compatible crucible selection should be reviewed for the specific material.
Is a pellet or dense piece preferable for Germanium Nitride?
A dense, mechanically stable charge is generally easier to load and condition than loose powder. The ideal form depends on hearth size and the required evaporation rate.
What information should I provide for a Germanium Nitride evaporation-material quotation?
Provide formula, purity, source form, piece or pellet size, quantity, evaporation method, source-holder details, and the intended film composition or application.
