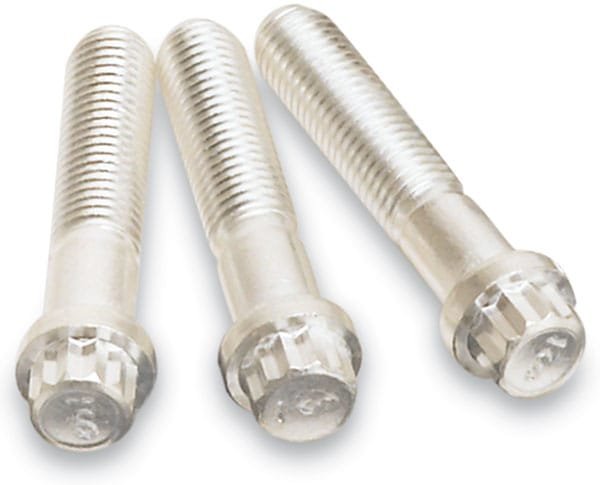

Imperial 12-Point Silver Plated Bolts

Imperial 12-Point Silver Plated Bolts

TFM’s Imperial 12-Point Silver Plated Bolts are precision-engineered fasteners designed for high-performance applications in vacuum, cleanroom, and industrial environments. Featuring a unique 12-point head design and silver plating, these bolts offer superior conductivity, corrosion resistance, and exceptional torque retention for demanding systems.

Key Features

  • 12-Point Head Design
    The 12-point head offers a higher torque tolerance compared to traditional hex bolts, making it ideal for applications where precise and secure fastening is essential. This design allows for better grip and more even distribution of torque, reducing the risk of stripping.

  • Silver Plating for Enhanced Conductivity
    The silver-plated surface enhances electrical conductivity, making these bolts suitable for applications where low electrical resistance is critical, such as in electrical connections, semiconductor equipment, and vacuum systems.

  • Corrosion-Resistant Construction
    Manufactured from high-quality stainless steel and plated with silver, these bolts offer excellent resistance to corrosion, oxidation, and wear, ensuring long-lasting performance even in harsh environments.

  • Imperial Thread Sizes
    Available in common imperial thread sizes like ¼-20, 10-32, and 5/16-24, these bolts are compatible with a wide range of standard imperial-threaded flange and assembly systems.

  • Versatile Applications
    These bolts are ideal for use in both low and high-pressure vacuum systems, cleanroom setups, and other high-precision industries that require secure, reliable fastening with minimal maintenance.

Applications

  • Vacuum Systems
    Ideal for use in vacuum flanges, UHV chambers, and beamline assemblies where secure, leak-tight connections are needed, and corrosion resistance is crucial.

  • Semiconductor Manufacturing
    Essential in PVD, CVD, and etching systems, where electrical conductivity and durability are critical for maintaining consistent performance.

  • Electrical and Aerospace Applications
    The silver plating and 12-point design make these bolts perfect for applications where electrical conductivity and mechanical strength are required, such as in aerospace systems and high-performance electrical connectors.

  • Industrial and Research Equipment
    These bolts are used in industrial vacuum systems, laboratory setups, and research equipment where high torque retention and corrosion resistance are paramount.

Specifications

  • Thread Sizes: UNC (¼-20, 10-32, 5/16-24)

  • Material: Stainless steel with silver plating

  • Head Style: 12-point for improved torque retention

  • Plating: Silver for enhanced conductivity and corrosion resistance

  • Ideal for: UHV, cleanroom, and industrial systems

Why Choose TFM?

TFM’s Imperial 12-Point Silver Plated Bolts offer the perfect balance of durability, conductivity, and performance for high-demand applications. With corrosion-resistant properties and exceptional torque retention, these bolts are designed to meet the stringent requirements of vacuum, semiconductor, and industrial systems.

Ordering Table

Length Material Finish Type Thread Size Note Part Number
0.63 300 Series Stainless Steel Silver Plated Non-Vented 1/4-28 1 TPBU2528-063S4P0
0.88 300 Series Stainless Steel Silver Plated Non-Vented 1/4-28 1 TPBU2528-088S4P0
1.00 300 Series Stainless Steel Silver Plated Non-Vented 1/4-28 1 TPBU2528-100S4P0
1.25 300 Series Stainless Steel Silver Plated Non-Vented 1/4-28 1 TPBU2528-125S4P0
1.38 300 Series Stainless Steel Silver Plated Non-Vented 1/4-28 1 TPBU2528-138S4P0
1.25 300 Series Stainless Steel Silver Plated Non-Vented 5/16-24 1 TPBU3124-125S4P0
1.50 300 Series Stainless Steel Silver Plated Non-Vented 5/16-24 1 TPBU3124-150S4P0
2.00 300 Series Stainless Steel Silver Plated Non-Vented 5/16-24 1 TPBU3124-200S4P0
2.25 300 Series Stainless Steel Silver Plated Non-Vented 5/16-24 1 TPBU3124-225S4P0
2.50 300 Series Stainless Steel Silver Plated Non-Vented 5/16-24 1 TPBU3124-250S4P0

Reviews

There are no reviews yet.

Be the first to review “Imperial 12-Point Silver Plated Bolts”
