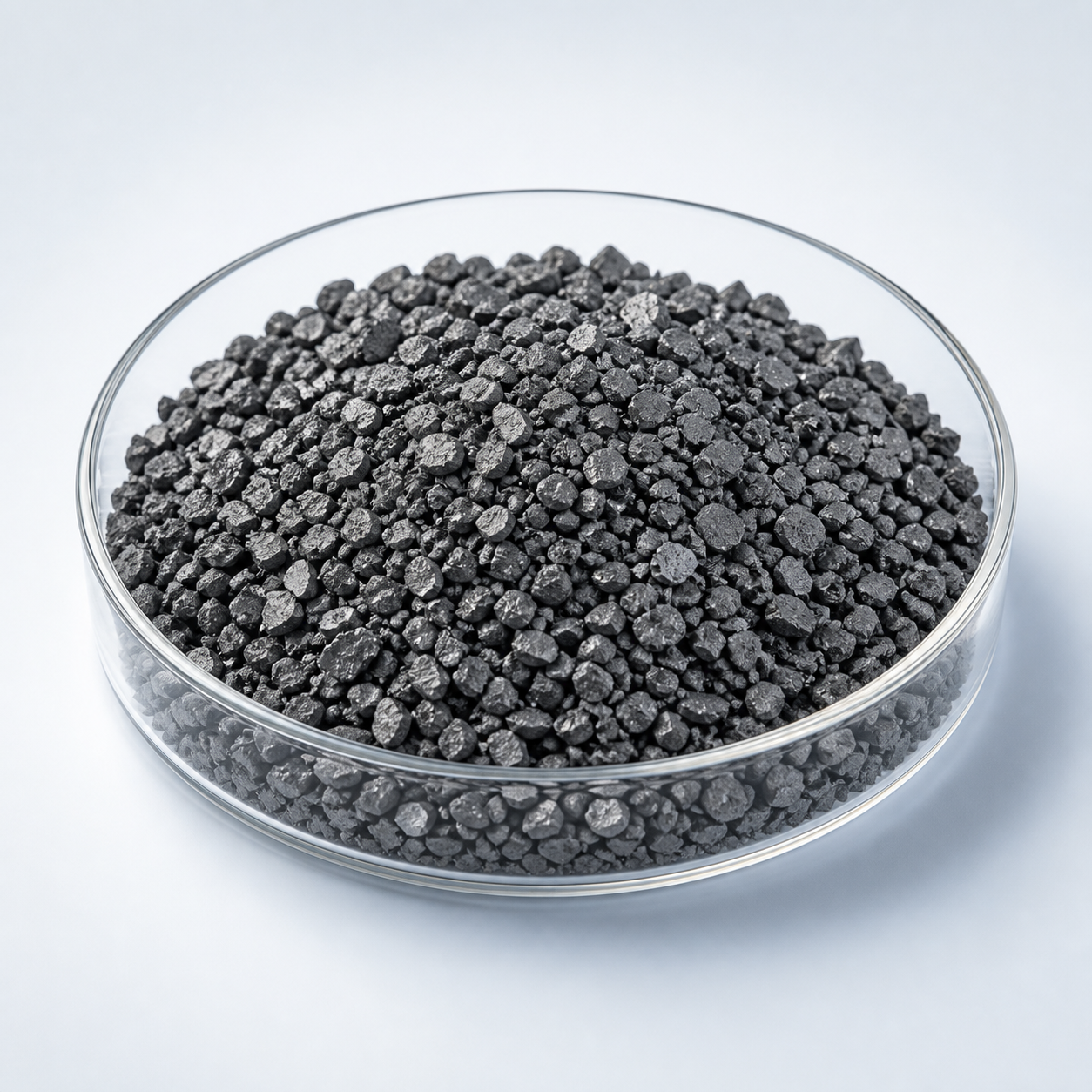

VD0848A Indium Selenium Pellet Evaporation Material (InSe)

MSDS File
Material TypeIndium Selenium
SymbolInSe
Melting Point (°C)
Theoretical Density (g/cc)
Z Ratio
E-Beam
E-Beam Crucible Liner Material
Temp. (°C) for Given Vap. Press. (Torr)
Comments

Indium Selenium Pellet Evaporation Material

TFM offers high-purity Indium Selenium Pellet Evaporation Material, designed for thin-film deposition in semiconductor, optoelectronic, and infrared detection applications. Composed of indium (In) and selenium (Se), this material combines semiconducting properties with high optical transparency, making it ideal for use in infrared sensors, photovoltaic devices, and thin-film coatings.

Engineered for thermal evaporation and electron beam (E-beam) evaporation, Indium Selenium Pellet Evaporation Material ensures precise film deposition, uniformity, and superior purity, enabling consistent performance for advanced thin-film applications.

Key Features and Advantages

  • High Optical Transparency: Ideal for infrared optoelectronics and photovoltaic devices requiring efficient light absorption and transmission.

  • Tunable Semiconductor Properties: Provides versatile electrical characteristics, supporting semiconductor technology and photodetector applications.

  • High Purity & Minimal Contamination: Ensures consistent thin-film growth and high device performance by minimizing impurities during deposition.

  • Excellent Adhesion & Film Uniformity: Guarantees strong adhesion and smooth, uniform coatings, reducing defects and improving device efficiency.

  • Customizable Compositions Available: Tailored to meet specific requirements for research and industrial applications.

Applications

  • Infrared Imaging & Detection: Used in IR cameras, thermal sensors, and night vision devices, perfect for security, military, and industrial use.

  • Photovoltaic & Photodetector Devices: Supports solar cell technologies and photodetectors by providing efficient photoelectric conversion.

  • Semiconductor & Thin-Film Devices: Plays a vital role in advanced semiconductor research, thin-film electronics, and nanoelectronics.

  • Optical Coatings & Electronic Systems: Ideal for thin-film coatings in infrared-sensitive detectors, optical sensors, and electronic components.

Industry Impact and Customization

TFM’s Indium Selenium Pellet Evaporation Material enhances the performance of infrared, optoelectronic, and semiconductor applications. With customizable stoichiometries, high purity, and controlled evaporation properties, we ensure high-quality thin-film deposition, perfect for advanced research and industrial needs.

With its superior electrical, optical, and infrared properties, TFM’s Indium Selenium Pellet Evaporation Material is a crucial material for high-performance photodetectors, infrared imaging systems, and photovoltaic technologies, delivering outstanding efficiency, long-term reliability, and consistent performance.
