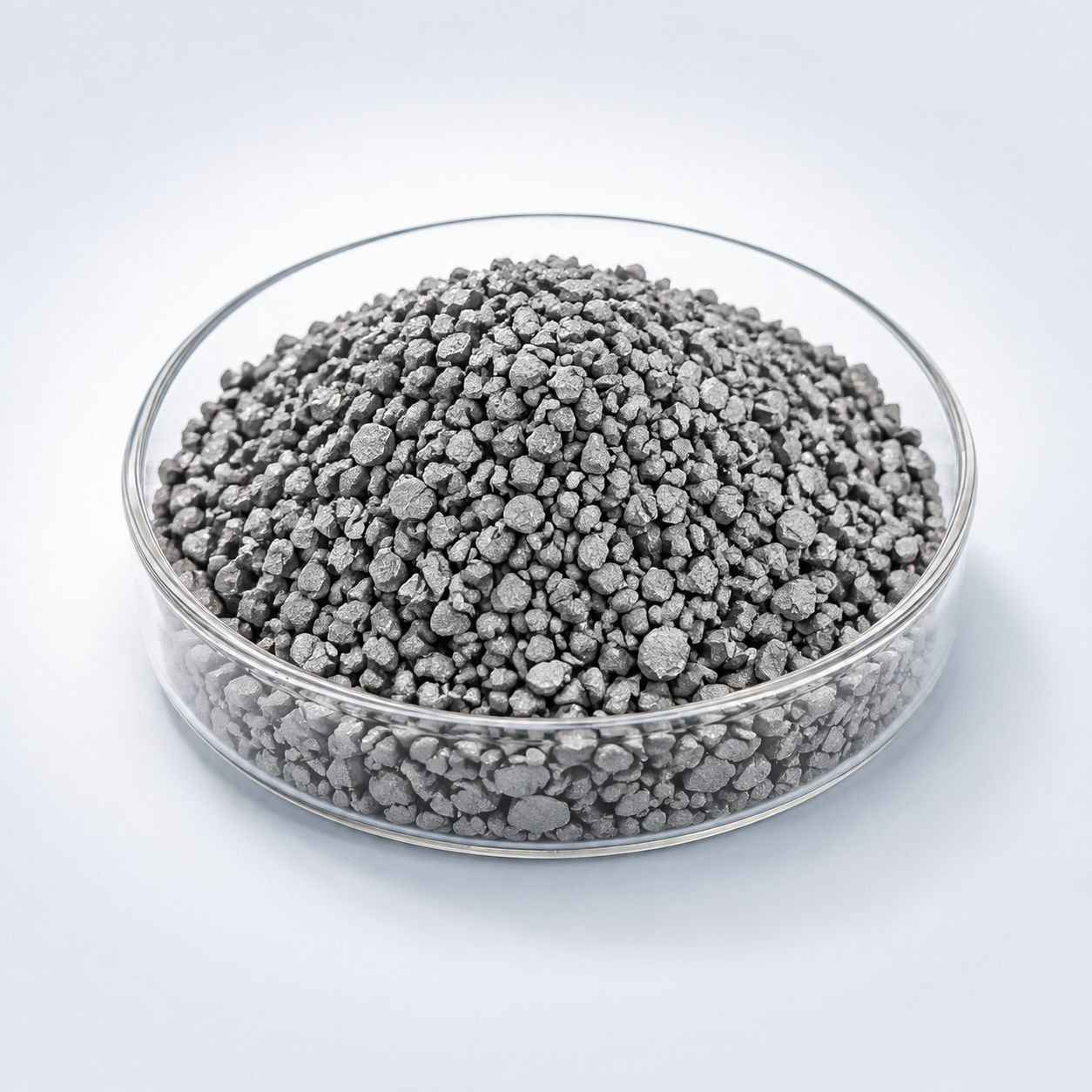

Lead Evaporation Materials, Pb

Material: Lead
Chemical Formula: Pb
Catalog No.: TFM-EVM-0179
Purity: 99.9% ~ 99.99%
Shape: Powder/ Granule/ Custom-made

Lead evaporation material is supplied by Thin Film Materials (TFM) for vacuum evaporation and thin-film deposition. Available form, size, purity, and packaging can be customized to suit research and production requirements.

Product Overview

Lead Evaporation Materials (Pb) is an elemental evaporation material used to deposit metallic thin films by vacuum evaporation. Depending on vapor pressure, melting behavior, source geometry, and the available evaporator, the material may be processed by resistance heating, electron-beam evaporation, or another suitable high-vacuum source. For repeatable deposition, purity, source form, handling cleanliness, and compatibility with the boat, basket, crucible, or hearth are important procurement variables.

Evaporation Behavior and Process Considerations

The choice between resistance heating and electron-beam evaporation depends on vapor pressure, melting temperature, source mass, required rate, and the available boat or crucible. Low-to-moderate melting metals may be compatible with resistance heating, while higher-temperature materials can favor e-beam evaporation. Gradual preheating is useful for removing adsorbed gases and establishing a stable evaporation rate before deposition.

Technical Data

ParameterTypical Value / RangeImportance
Chemical SymbolPbDefines material identity
Purity99.9% – 99.999%Ensures film consistency
FormPellets / Granules / Shots / PiecesMatches evaporation source
Particle Size1 – 10 mm (typical)Affects evaporation stability
Melting Point~327°CEnables thermal evaporation
Density11.34 g/cm³Influences deposition rate
Evaporation MethodThermal / E-beamProcess compatibility
MaterialKey AdvantageTypical Application
PbLow melting point, easy evaporationGeneral thin films
SnLower toxicity alternativeElectronics coatings
BiHigh density, unique electronic propertiesThermoelectrics
PbTeInfrared and thermoelectric propertiesIR detectors
QuestionAnswer
What evaporation method is best for Pb?Thermal evaporation is commonly used due to its low melting point.
Can Pb be used for compound film deposition?Yes, it is often used in co-evaporation for lead-based compounds.
What forms are available?Pellets, granules, shots, and custom shapes are available.
Is high purity necessary?Yes, especially for semiconductor and research applications.
Which industries use Pb evaporation materials?Electronics, optics, energy research, and laboratory coating.

Typical Thin-Film Applications

  • Lead metallic coatings for electronic, optical, conductive, reflective, catalytic, or contact-layer applications
  • Semiconductor and laboratory PVD research
  • Multilayer stacks and co-evaporation processes requiring a pure elemental source

Source Form and Ordering Considerations

For quotation, provide material, purity, source form, particle or piece size, quantity, evaporation method, and any boat, basket, crucible, or e-beam hearth constraints. If the material will be used for a specific coating stack, sharing the intended film thickness or deposition application can help with source-form selection and packaging recommendations.

Frequently Asked Questions

Can Lead be used for thermal evaporation?

It depends on melting point, vapor pressure, charge size, and the source hardware. Many elemental metals can be resistance-heated, while higher-temperature materials are often more convenient to evaporate with an electron beam.

How do I choose between pellets, pieces, and granules for Lead?

Choose a form that loads securely into the boat, crucible, basket, or e-beam pocket and provides stable heating. Smaller pieces can improve packing, while larger pieces may reduce handling and dust.

Why should Lead be preheated before opening the shutter?

Preheating removes adsorbed gases and stabilizes the evaporation flux. This can reduce pressure spikes, spitting, and contamination during the actual film deposition.

Can the crucible material affect Lead evaporation?

Yes. At elevated temperature, the charge can react with, dissolve, wet, or contaminate some source materials. Crucible and boat compatibility should be checked for the actual evaporation temperature.

Does source purity directly affect film purity?

Source purity is one of the main contributors to film contamination, although chamber cleanliness, crucible condition, substrate preparation, and background pressure also affect the final film.

What information should I send TFM for Lead evaporation material?

Please provide purity, preferred source form and size, quantity, evaporation method, source-holder details, and any packaging, inspection, or documentation requirements.

Reviews

There are no reviews yet.

Be the first to review “Lead Evaporation Materials, Pb”

Your email address will not be published. Required fields are marked *

FAQ

  • They are high‐purity substances (e.g. metals, alloys, or compounds) used in thermal or electron‐beam evaporation processes to form thin films on substrates.

  • Typically, they’re processed into a form (often ingots, pellets, or wires) that can be efficiently vaporized. Preparation emphasizes high purity and controlled composition to ensure film quality.

  • Thermal evaporation and electron-beam (e-beam) evaporation are the two main techniques, where material is heated (or bombarded with electrons) until it vaporizes and then condenses on the substrate.

  • Thermal evaporation heats the material directly (often using a resistive heater), while e-beam evaporation uses a focused electron beam to locally heat and vaporize the source material—each method offering different control and energy efficiency.

  • Key parameters include source temperature, vacuum level, deposition rate, substrate temperature, and the distance between the source and the substrate. These factors influence film uniformity, adhesion, and microstructure.

  • Evaporation generally produces high-purity films with excellent control over thickness, and it is especially suitable for materials with relatively low melting points or high vapor pressures.

  • Challenges include issues with step coverage (due to line-of-sight deposition), shadowing effects on complex topographies, and possible re-evaporation of material from the substrate if temperature isn’t properly controlled.

  • Common evaporation materials include noble metals (e.g., gold, silver), semiconductors (e.g., silicon, germanium), metal oxides, and organic compounds—each chosen for its specific optical, electrical, or mechanical properties.

  • Selection depends on desired film properties (conductivity, optical transparency, adhesion), compatibility with the evaporation process, and the final device application (semiconductor, optical coating, etc.).

  • Optimizing substrate temperature, deposition rate, and chamber vacuum are critical for ensuring that the film adheres well and forms the intended microstructure without defects.

  • Troubleshooting may involve checking the source material’s purity, ensuring stable source temperature, verifying the vacuum level, adjusting the substrate’s position or temperature, and monitoring deposition rate fluctuations.

While evaporation tends to yield very high purity films with excellent thickness control, it is limited by its line-of-sight nature. In contrast, sputtering can deposit films more uniformly on complex surfaces and is more versatile for a broader range of materials.
