Product Overview

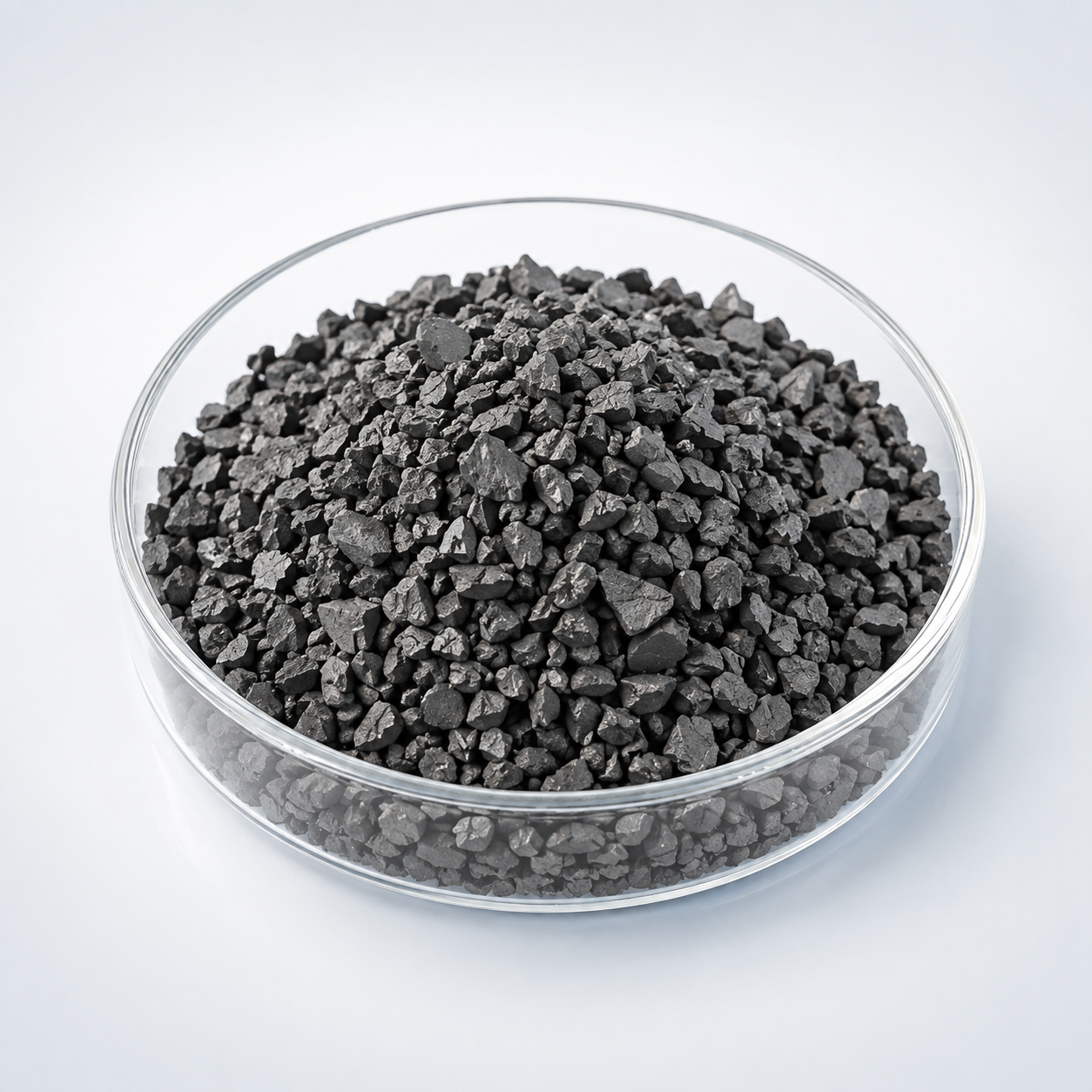

Lead Telluride Evaporation Materials (PbTe) is a chalcogenide evaporation material used in optical, infrared, semiconductor, thermoelectric, and phase-change thin-film research. Because sulfur-, selenium-, and tellurium-containing compounds can contain volatile constituents, evaporation may be incongruent and the deposited film can deviate from the nominal source composition. Deposition temperature, source heating profile, rate control, and film-composition analysis are therefore important when stoichiometry is critical.
Evaporation Behavior and Process Considerations
Chalcogenides often contain constituents with different vapor pressures, so the film composition may evolve during evaporation. Lower source temperatures and controlled rates can help reduce loss of volatile components, but the optimum method depends on the specific compound. When stoichiometry is critical, deposited-film composition should be verified rather than inferred only from the source label.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.999% | Higher purity improves carrier control and film quality |
| Chemical Formula | PbTe | Ensures correct stoichiometry |
| Form | Granules / Pellets / Lumps | Compatible with thermal & e-beam systems |
| Density | ≥ 99% of theoretical | Promotes stable evaporation behavior |
| Melting Point | ~924°C | Influences evaporation method selection |
| Oxygen Content | ≤ 1000 ppm (controlled) | Reduces defect formation in films |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Lead Telluride (PbTe) | High thermoelectric efficiency, strong IR response | Thermoelectric modules |
| Bismuth Telluride (Bi2Te3) | High ZT at near-room temperature | Cooling modules |
| Tin Telluride (SnTe) | Lead-free alternative semiconductor | Research applications |
| Lead Selenide (PbSe) | Infrared sensitivity at different wavelengths | IR detectors |
| Question | Answer |
|---|---|
| Can PbTe evaporation materials be customized? | Yes, purity, form, and pellet size can be tailored to match your evaporation system. |
| Is stoichiometry critical during deposition? | Yes, maintaining the correct Pb:Te ratio is essential for optimal electrical and thermoelectric properties. |
| Which deposition method is recommended? | Both thermal evaporation and e-beam evaporation are suitable, depending on system design. |
| What industries use PbTe most frequently? | Thermoelectric energy, infrared imaging, semiconductor research, and optoelectronics. |
| How is the material packaged? | Vacuum-sealed packaging with moisture protection and shock-resistant export cartons or wooden crates. |
Typical Thin-Film Applications
- Infrared, optical, phase-change, semiconductor, and thermoelectric thin films
- Compound semiconductor and chalcogenide multilayer research
- Composition-sensitive R&D where volatile-element control is important
Source Form and Ordering Considerations
For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.
Frequently Asked Questions
Can Lead Telluride evaporate incongruently?
Yes. Sulfur, selenium, and tellurium compounds can contain constituents with different vapor pressures, so the deposited film may not exactly match the nominal source composition.
How can volatile-component loss be reduced when evaporating Lead Telluride?
A controlled source temperature, stable deposition rate, and appropriate substrate temperature can help. The optimum conditions depend on the specific compound and should be confirmed by film analysis.
Is thermal or e-beam evaporation better for Lead Telluride?
The better method depends on vapor pressure, decomposition temperature, source form, and desired rate. Some chalcogenides can be thermally evaporated, while others are more controllable with localized e-beam heating.
Should Lead Telluride film composition be measured after deposition?
Yes when stoichiometry is important. Source composition alone does not guarantee film composition because preferential evaporation and re-evaporation can occur.
What source form can TFM supply for Lead Telluride?
Depending on the material, TFM can review pellets, pieces, granules, or other compact forms suitable for the customer’s evaporation source.
What should I include in a Lead Telluride RFQ?
Provide composition, purity, source form and size, quantity, evaporation method, and the film-composition or application requirements that matter to the project.
