Product Overview

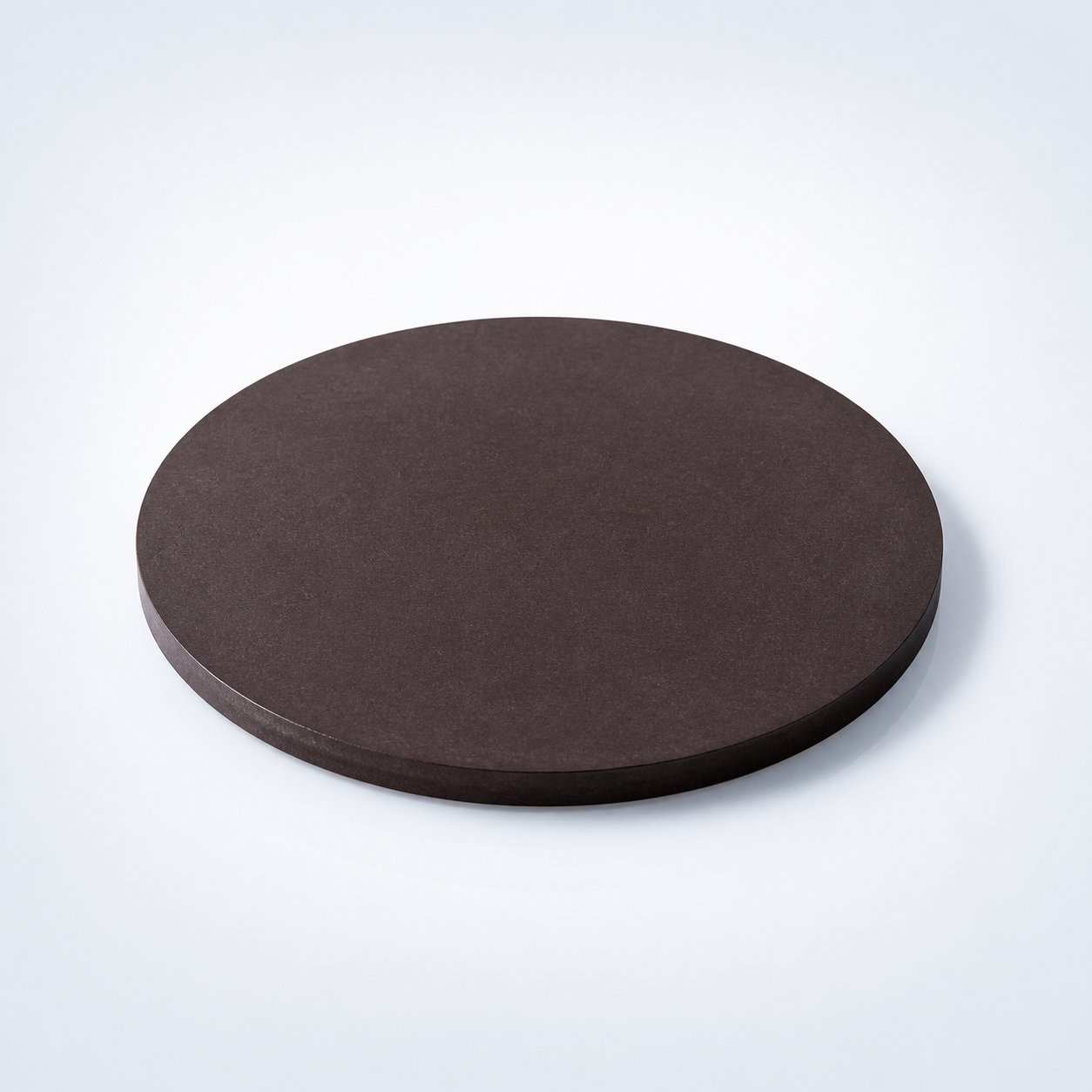

Lutetium Iron Garnet Sputtering Target (Lu3Fe5O12) is a ceramic sputtering target used to deposit composition-specific oxide thin films. Compared with metallic targets, oxide targets are typically more sensitive to density, porosity, brittleness, thermal shock, and bonding design. In practice, target microstructure, thickness, cooling conditions, and the chosen sputtering mode can all affect arc stability, particle generation, and deposited-film performance.
Material and Deposition Characteristics
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets, while sufficiently conductive formulations may allow alternative power modes in some systems. Target density and microstructural uniformity matter because pores, cracks, and local inhomogeneities can contribute to unstable plasma, particles, or target damage. For brittle ceramics, bonded assemblies and gradual power ramping are often worth evaluating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Chemical Formula | Lu₃Fe₅O₁₂ | Garnet structure ensures magnetic uniformity |
| Purity | 99.9% – 99.99% | Higher purity enhances magnetic and optical performance |
| Density | ≥ 6.5 g/cm³ | Ensures consistent sputtering and film density |
| Diameter | 1–4 inch (custom sizes available) | Compatible with various sputtering systems |
| Thickness | 3 – 6 mm | Affects sputtering rate and film growth control |
| Bonding | Copper or Titanium backing | Improves thermal conductivity and target stability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Lutetium Iron Garnet (Lu₃Fe₅O₁₂) | Very low magnetic damping, high optical transparency | Spintronics, optical isolators |
| Yttrium Iron Garnet (Y₃Fe₅O₁₂) | Proven magnetic insulator with broader availability | Microwave and optical devices |
| Gadolinium Iron Garnet (Gd₃Fe₅O₁₂) | Stronger magneto-optical effect | Magneto-optical sensors and films |
| Question | Answer |
|---|---|
| Can the LuIG target be customized? | Yes. Size, purity, and bonding options can be customized according to sputtering system requirements. |
| What deposition methods are compatible? | RF magnetron sputtering, PLD, and e-beam evaporation are commonly used. |
| How is the target packaged? | Vacuum-sealed with soft foam protection, packed in export-grade cartons or wooden crates. |
| What substrate materials are suitable for LuIG films? | Gadolinium Gallium Garnet (GGG), Yttrium Aluminum Garnet (YAG), and Sapphire. |
| Is a bonding plate necessary? | Recommended for targets above 2″ or under high power sputtering conditions to enhance heat transfer. |
Typical Thin-Film Applications
- Dielectric, insulating, optical, magnetic, protective, or functional ceramic thin films
- Semiconductor, sensor, photonic, and multilayer coating research
- Applications where oxide composition, density, and process stability affect film performance
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
Is Lutetium Iron Garnet better suited to RF or DC sputtering?
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets. If a specific formulation is sufficiently conductive, other modes may also be possible, but the equipment and target properties should be confirmed.
Why is density important for a Lutetium Iron Garnet target?
Density and microstructural uniformity affect erosion stability, thermal behavior, and particle risk. Pores, cracks, or local density variations can contribute to unstable sputtering and target damage.
Should a Lutetium Iron Garnet target be bonded to a backing plate?
Bonding is often useful for brittle oxide targets because it can improve mechanical support and heat transfer. The backing material and bonding method should be chosen according to target size, thickness, and operating conditions.
Will the deposited film always have the same composition as Lu3Fe5O12?
Not always. Film composition can be affected by preferential sputtering, reactive gas, substrate temperature, re-sputtering, and chamber conditions. Composition-sensitive films should be verified after deposition.
How should power be ramped on a brittle Lutetium Iron Garnet target?
A conservative power ramp and stable cooling are generally advisable. The exact operating procedure should follow the target size, bonding condition, cathode design, and supplier recommendations rather than a universal wattage.
What information should I provide when ordering Lutetium Iron Garnet?
Provide formula or composition, purity, dimensions, quantity, backing and bonding requirements, cathode model or drawing, and any density, tolerance, or inspection requirements.
