Product Overview

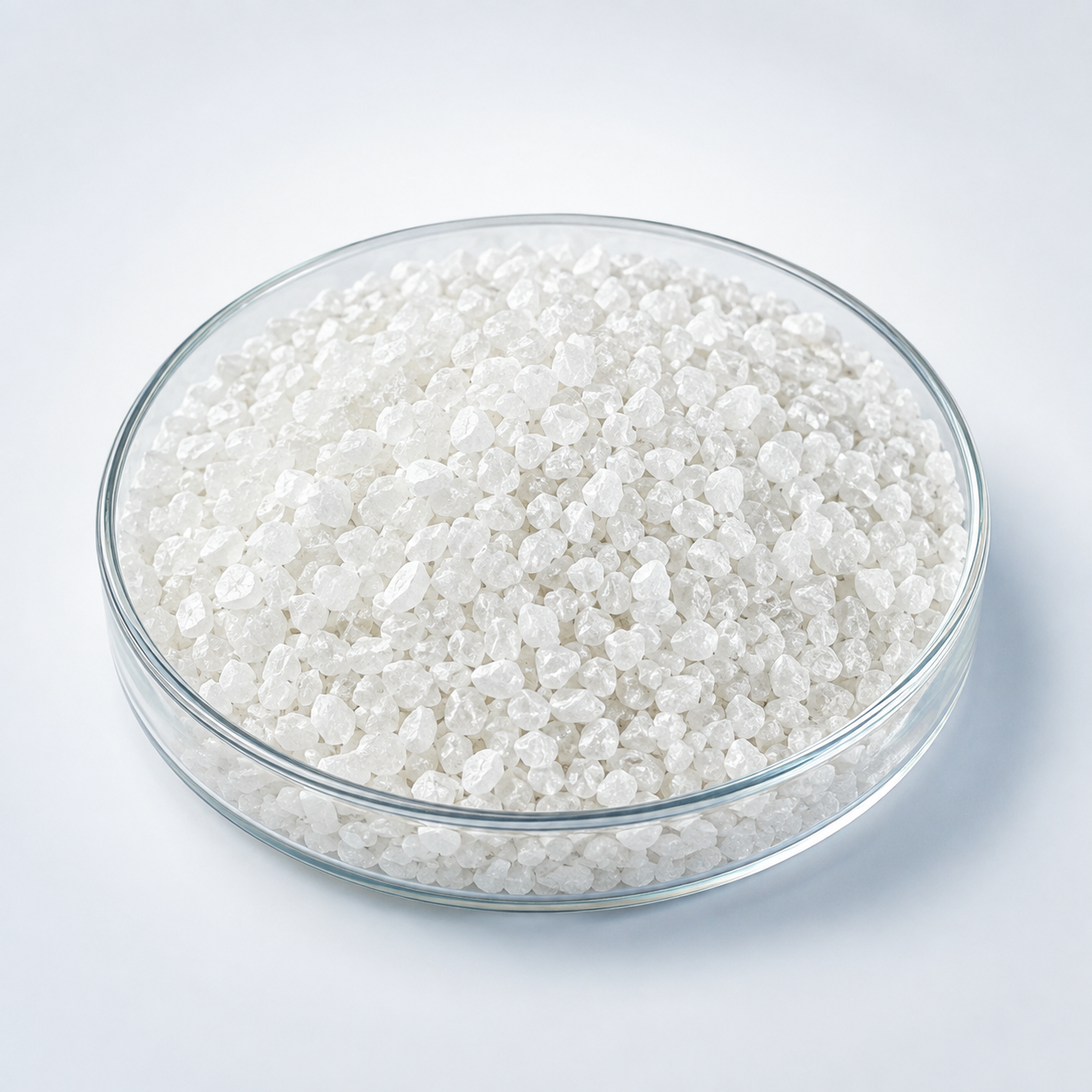

Magnesium Fluoride Evaporation Materials (MgF2) is a fluoride evaporation material commonly considered for optical and functional thin-film deposition. Fluoride sources can be sensitive to source cleanliness, moisture pickup, spitting, and crucible compatibility depending on the compound and heating method. A controlled vacuum, gradual preconditioning, and stable evaporation rate help reduce particles and improve repeatability.
Evaporation Behavior and Process Considerations
Fluoride charges should be loaded into compatible, clean source hardware and conditioned gradually. Depending on the material, resistance heating or electron-beam evaporation may be used. Stable vacuum and rate control are important because moisture or trapped gases can increase spitting and film defects during initial heating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.999% (3N–5N) | Reduces optical loss and contamination |
| Chemical Formula | MgF₂ | Ensures stable refractive index |
| Refractive Index | ~1.38 (550 nm, thin film) | Ideal for AR applications |
| Melting Point | ~1263°C | Suitable for thermal & e-beam evaporation |
| Form | Powder / Granules / Pellets | Compatible with deposition systems |
| Packaging | Vacuum-sealed / moisture-protected | Maintains chemical stability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Magnesium Fluoride (MgF₂) | Very low refractive index & wide transparency | Anti-reflection coatings |
| Lanthanum Fluoride (LaF₃) | Higher refractive index fluoride | Multilayer optical stacks |
| Yttrium Fluoride (YF₃) | Good durability & optical clarity | Laser coatings |
| Aluminum Fluoride (AlF₃) | UV transparency | Specialized UV optics |
| Question | Answer |
|---|---|
| Is MgF₂ suitable for both thermal and e-beam evaporation? | Yes, it is compatible with both methods, though e-beam often provides higher density films. |
| What purity grade is recommended for optical coatings? | 4N or higher is typically preferred for precision optical applications. |
| Does MgF₂ absorb moisture? | It is relatively stable but should still be stored in dry, sealed packaging. |
| Can pellet size be customized? | Yes, granule and pellet dimensions can be tailored to specific source designs. |
| Which industries use MgF₂ films most? | Optics manufacturing, laser systems, display technology, and research institutions. |
Typical Thin-Film Applications
- Optical thin-film stacks and wavelength-control coatings
- Dielectric, protective, UV, visible, or infrared coating research depending on the fluoride
- Multilayer designs requiring low-absorption inorganic evaporation materials
Source Form and Ordering Considerations
For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.
Frequently Asked Questions
Is Magnesium Fluoride used for optical evaporation coatings?
Many fluoride materials are used in optical thin-film stacks because of their useful refractive-index and transmission characteristics. The actual suitability depends on wavelength range and film design.
Can Magnesium Fluoride be thermally evaporated?
Some fluorides can be processed by resistance heating, while others are evaporated by electron beam. The choice depends on melting behavior, vapor pressure, rate requirement, and source compatibility.
Why is gradual preconditioning important for Magnesium Fluoride?
Fluoride charges can release adsorbed moisture or trapped gas during initial heating. A slow ramp helps reduce pressure spikes, spitting, and particle defects.
Does crucible material matter for Magnesium Fluoride?
Yes. The evaporation source should be chemically and thermally compatible with the fluoride at operating temperature to reduce contamination or reaction.
Can film composition differ from the fluoride source?
It can, depending on dissociation behavior and deposition conditions. Film optical properties should therefore be checked against the coating specification rather than inferred only from source chemistry.
What should I specify when ordering Magnesium Fluoride evaporation material?
Provide purity, source form and size, quantity, evaporation method, crucible or boat constraints, and the optical-coating application if relevant.
