Product Overview

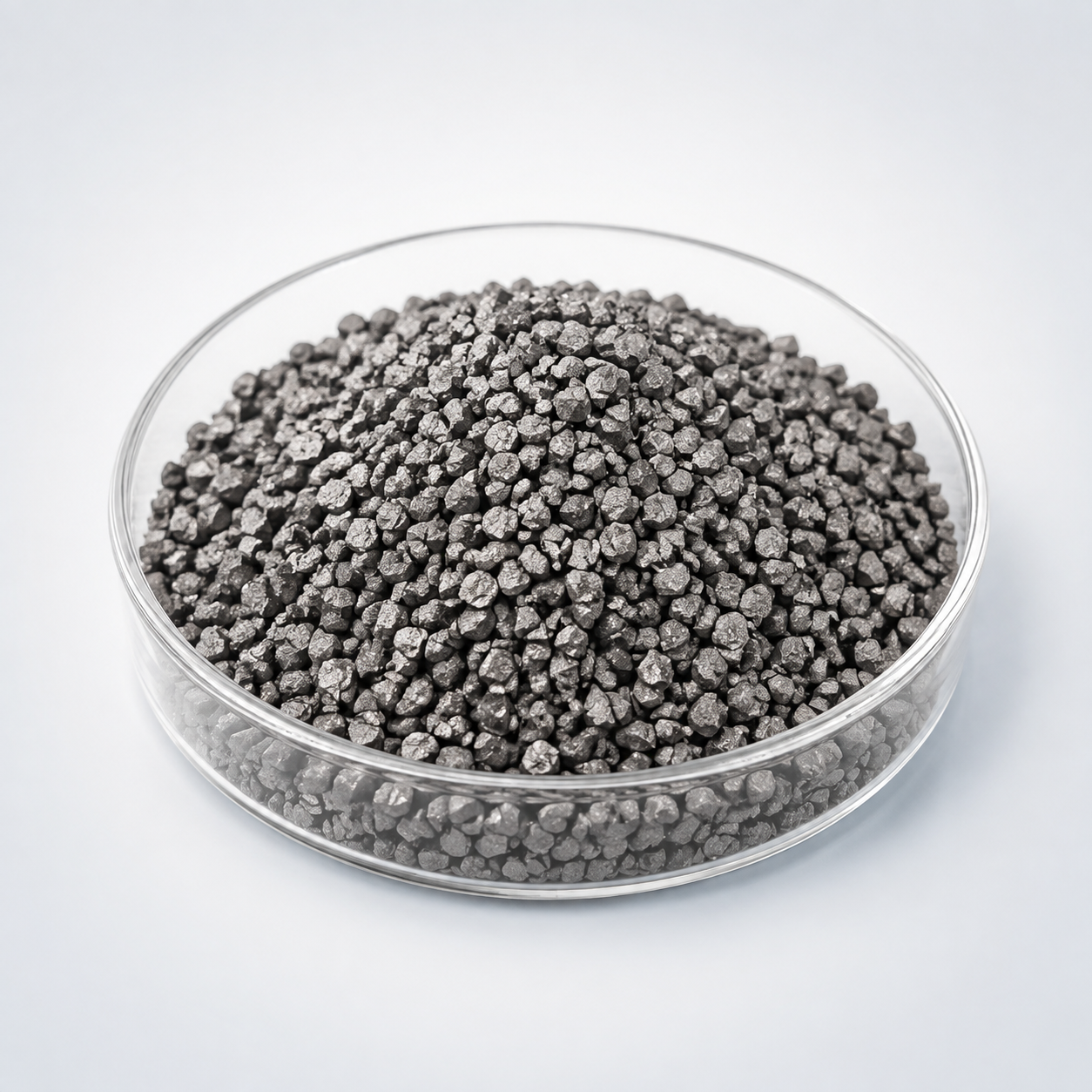

Magnesium Silicide Evaporation Materials (Mg2Si) is a high-melting compound evaporation source for specialized thin-film deposition and materials research. Carbides, borides, nitrides, silicides, and related compounds may require electron-beam heating or other high-energy evaporation methods, and some compounds can decompose or change composition before a useful vapor pressure is reached. The evaporation route should therefore be qualified against the required film chemistry rather than assumed to be congruent.
Evaporation Behavior and Process Considerations
These compounds commonly require high-energy evaporation methods such as electron-beam heating. However, high source temperature can also promote decomposition, dissociation, or preferential evaporation. Process qualification should therefore include source-behavior observation and film-composition verification before scaling to long runs.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | High purity improves semiconductor performance |
| Chemical Formula | Mg₂Si | Determines electrical and thermoelectric properties |
| Form | Pellets / Granules / Tablets | Suitable for evaporation sources |
| Particle Size | 1 – 6 mm typical | Ensures stable evaporation rates |
| Density | High-density sintered material | Provides consistent deposition behavior |
| Deposition Method | E-beam evaporation / Thermal evaporation | Compatible with PVD thin film processes |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Magnesium Silicide (Mg₂Si) | Environmentally friendly thermoelectric semiconductor | Waste heat recovery and thermoelectric devices |
| Bismuth Telluride (Bi₂Te₃) | High thermoelectric efficiency near room temperature | Thermoelectric cooling and power generation |
| Silicon (Si) | Widely used semiconductor material | Electronics and microchips |
| Question | Answer |
|---|---|
| What forms are available for Mg₂Si evaporation materials? | They are typically supplied as pellets, granules, tablets, or pieces suitable for evaporation sources. |
| Which deposition methods are compatible with Mg₂Si? | Mg₂Si materials are commonly used in electron beam evaporation and thermal evaporation systems. |
| What purity levels are available? | Standard purity ranges from 99.9% to 99.99%, depending on application requirements. |
| What substrates can Mg₂Si films be deposited on? | Mg₂Si films can be deposited on silicon wafers, glass, ceramic substrates, and other semiconductor materials. |
| What industries use Mg₂Si materials most frequently? | Thermoelectric device development, semiconductor research, and advanced energy technology industries. |
Typical Thin-Film Applications
- Hard, refractory, electronic, protective, and specialty compound thin films
- High-temperature or advanced-material coating research
- R&D evaluating decomposition behavior and film stoichiometry under e-beam evaporation
Source Form and Ordering Considerations
For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.
Frequently Asked Questions
Can Magnesium Silicide be evaporated by electron beam?
Electron-beam heating is often evaluated for high-melting compounds because it can provide localized high temperature. However, the compound may decompose before evaporating congruently.
Will Magnesium Silicide maintain its stoichiometry during evaporation?
Not necessarily. Carbides, borides, nitrides, silicides, and related compounds can dissociate or evaporate preferentially, so film composition should be verified.
Why is source conditioning important for Magnesium Silicide?
Gradual conditioning reduces thermal shock, outgassing, and sudden particle ejection while allowing the operator to observe whether the compound remains stable under heating.
What source holder should be used for Magnesium Silicide?
The holder must tolerate the required temperature and avoid chemical reaction with the charge. E-beam hearth or compatible crucible selection should be reviewed for the specific material.
Is a pellet or dense piece preferable for Magnesium Silicide?
A dense, mechanically stable charge is generally easier to load and condition than loose powder. The ideal form depends on hearth size and the required evaporation rate.
What information should I provide for a Magnesium Silicide evaporation-material quotation?
Provide formula, purity, source form, piece or pellet size, quantity, evaporation method, source-holder details, and the intended film composition or application.
