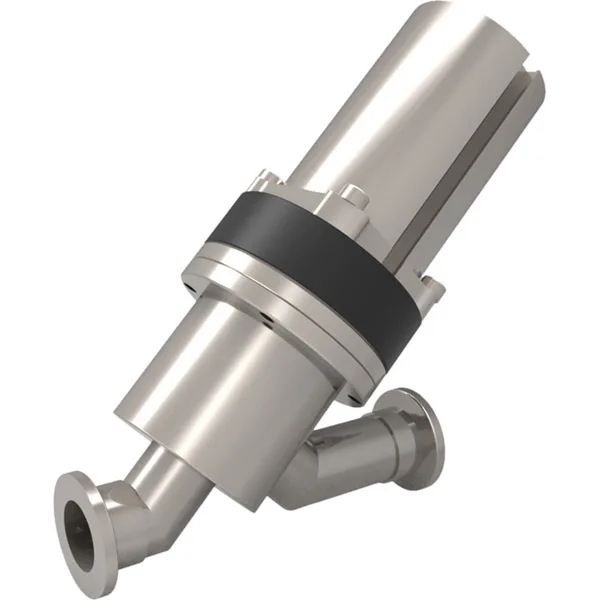

Pneumatic SS Y Inline Valves (KF Flanged; Viton Bonnet)

Features

These components serve as reliable and economical general-purpose solutions for High Vacuum (HV) and Ultra High Vacuum (UHV) applications, prioritizing cleanliness and corrosion resistance.

In the Open Position:
When opened, the edge-welded bellows and valve seat retract from the gas path, facilitating high conductance.

Key Specifications:

  • Leak Rate: Maintains a leak rate of 2 × 10⁻⁹ mbar L/s across the seat for optimal performance.
  • Pressure Range:
    • Maximum: Atmospheric pressure
    • Minimum: 1 × 10⁻⁹ Torr
  • Sealing Technology: Features fluorocarbon o-ring seat seals, bellows-sealed shafts, and bonnet seals. For improved high-temperature bakeout and enhanced ultimate vacuum, copper options are available.
  • Actuation Options: Available in manual or pneumatic actuation for versatile operation.
  • Maintenance: Regular repairs can be performed without removing the valve body from the system, simplifying maintenance efforts.

Specifications Table

ManufacturerTFM
PressureTorr
Min: 1.000 x 10-9 Torr
Max: 760 Torrmbar
1.330 x 10-9 mbar
atm
1.00 atm
RatesHelium Leak Rate
2.000 x 10-9 mbar*L/s
1.500 x 10-9 Torr*L/s
TemperatureActuator
80.0 ºC
176 ºFClosed Bake
100 ºC
212 ºFOpen Bake
100 ºC
212 ºF
Actuator
Type		Pneumatic Single Acting
Solenoid Kit
Included		No
Position
Indicators		No
Bonnet
Seal Type		Viton
Valve Body
Material		304L SS
Valve Seal
Material		Viton
Shaft
Seal		Bellows

Ordering Table

Drawing Flange Size Bonnet Seal Type Part Number
Tooltip KF16 (1.18" OD) Viton SY0075PVQF
Tooltip KF25 (1.57" OD) Viton SY0100PVQF
Tooltip KF40 (2.16" OD) Viton SY0150PVQF
