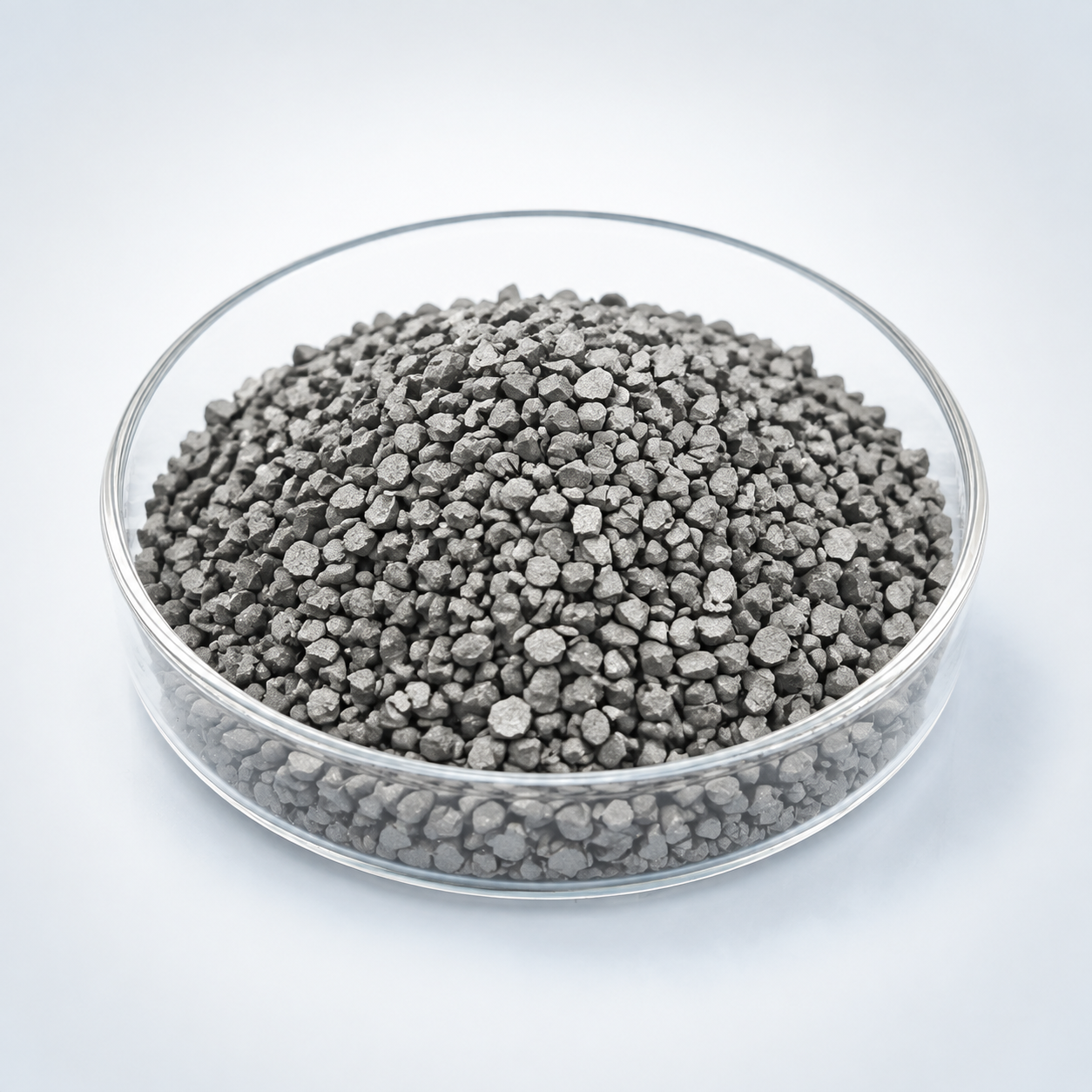

Scandium Evaporation Materials, Sc

Product Overview

Scandium Evaporation Materials (Sc) is an elemental evaporation material used to deposit metallic thin films by vacuum evaporation. Depending on vapor pressure, melting behavior, source geometry, and the available evaporator, the material may be processed by resistance heating, electron-beam evaporation, or another suitable high-vacuum source. For repeatable deposition, purity, source form, handling cleanliness, and compatibility with the boat, basket, crucible, or hearth are important procurement variables.

Evaporation Behavior and Process Considerations

The choice between resistance heating and electron-beam evaporation depends on vapor pressure, melting temperature, source mass, required rate, and the available boat or crucible. Low-to-moderate melting metals may be compatible with resistance heating, while higher-temperature materials can favor e-beam evaporation. Gradual preheating is useful for removing adsorbed gases and establishing a stable evaporation rate before deposition.

Technical Data

Typical Thin-Film Applications

• Scandium metallic coatings for electronic, optical, conductive, reflective, catalytic, or contact-layer applications
• Semiconductor and laboratory PVD research
• Multilayer stacks and co-evaporation processes requiring a pure elemental source

Source Form and Ordering Considerations

For quotation, provide material, purity, source form, particle or piece size, quantity, evaporation method, and any boat, basket, crucible, or e-beam hearth constraints. If the material will be used for a specific coating stack, sharing the intended film thickness or deposition application can help with source-form selection and packaging recommendations.

Frequently Asked Questions

Can Scandium be used for thermal evaporation?

It depends on melting point, vapor pressure, charge size, and the source hardware. Many elemental metals can be resistance-heated, while higher-temperature materials are often more convenient to evaporate with an electron beam.

How do I choose between pellets, pieces, and granules for Scandium?

Choose a form that loads securely into the boat, crucible, basket, or e-beam pocket and provides stable heating. Smaller pieces can improve packing, while larger pieces may reduce handling and dust.

Why should Scandium be preheated before opening the shutter?

Preheating removes adsorbed gases and stabilizes the evaporation flux. This can reduce pressure spikes, spitting, and contamination during the actual film deposition.

Can the crucible material affect Scandium evaporation?

Yes. At elevated temperature, the charge can react with, dissolve, wet, or contaminate some source materials. Crucible and boat compatibility should be checked for the actual evaporation temperature.

Does source purity directly affect film purity?

Source purity is one of the main contributors to film contamination, although chamber cleanliness, crucible condition, substrate preparation, and background pressure also affect the final film.

What information should I send TFM for Scandium evaporation material?

Please provide purity, preferred source form and size, quantity, evaporation method, source-holder details, and any packaging, inspection, or documentation requirements.
