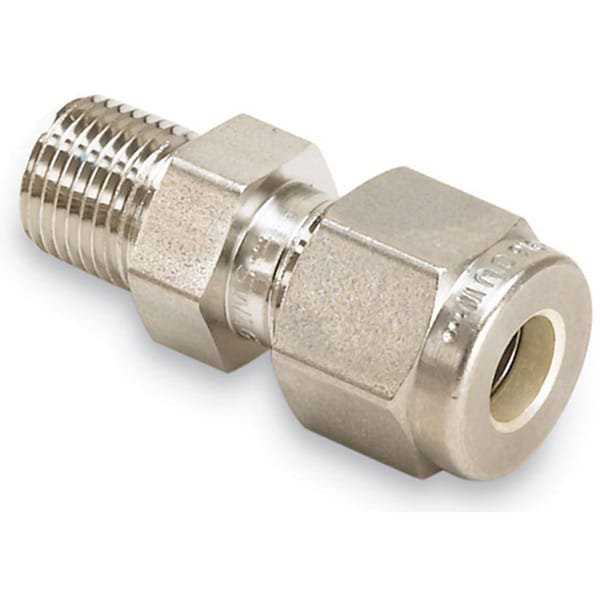

Swagelok to Male NPT Adapters

Swagelok to Male NPT Adapters: Secure, Torque-Free Tube-to-Thread Connections

Swagelok to Male NPT Adapters by TFM are precision-machined fittings designed to connect Swagelok compression tube ends directly to male NPT-threaded ports. Ideal for gas or fluid handling systems, these adapters ensure leak-proof, torque-free seals that maintain the integrity and performance of your tubing network.

Each adapter features a Swagelok dual-ferrule connection on one end and a tapered male NPT thread on the other—making them a versatile solution for integrating tubing into threaded manifolds, valves, or enclosures.

Key Features of Swagelok to Male NPT Adapters:

  • Leak-Proof, Torque-Free Sealing
    Swagelok fittings create a reliable seal at the tube interface without requiring over-tightening, ensuring repeatable and consistent performance across all assemblies.

  • Elimination of Costly and Hazardous Leaks
    These adapters are engineered to prevent leakage in critical process and instrumentation systems, supporting safe and uninterrupted operation in high-value environments.

  • Material-Specific Applications

    • Stainless Steel Adapters: Used in gas systems, including vacuum lines, chemical delivery, and process instrumentation.

    • Brass Adapters: Preferred for water systems or general low-pressure applications where cost-efficiency and corrosion resistance are priorities.

  • Standard NPT Threading
    The male NPT end conforms to ANSI/ASME B1.20.1 standards, providing a secure, tapered-thread seal compatible with a wide range of industrial components.

  • Compact and Versatile
    The straight in-line configuration makes these adapters ideal for use in confined installations, such as instrumentation panels, skids, and valve blocks.

Applications:

  • Connecting Swagelok tubing to threaded valves, manifolds, or chamber ports

  • Gas or fluid distribution systems in labs, factories, and cleanrooms

  • Retrofitting older NPT-threaded equipment with modern Swagelok tube assemblies

  • Supporting HVAC, hydraulic, and water control lines in industrial systems

  • Enabling quick integration of tubing into custom assemblies or OEM builds

TFM provides a full portfolio of Swagelok-compatible fittings, including female NPT adapters, elbows, tees, and bulkhead unions, allowing for complete fluid or gas routing solutions across your system.

Ordering Table

Reference Material Tube OD 1 Pipe Size Part Number
Swagelok to Male NPT Adapter Stainless Steel 1/8" 1/8" SS-200-1-2
Swagelok to Male NPT Adapter Stainless Steel 1/8" 1/4" SS-200-1-4
Swagelok to Male NPT Adapter Stainless Steel 1/4" 1/8" SS-400-1-2
Swagelok to Male NPT Adapter Stainless Steel 1/4" 1/4" SS-400-1-4
Swagelok to Male NPT Adapter Stainless Steel 3/8" 1/8" SS-600-1-2
Swagelok to Male NPT Adapter Stainless Steel 3/8" 1/4" SS-600-1-4
Swagelok to Male NPT Adapter Brass 1/4" 1/8" B-400-1-2
Swagelok to Male NPT Adapter Brass 1/4" 1/4" B-400-1-4
Swagelok to Male NPT Adapter Brass 3/8" 1/8" B-600-1-2
Swagelok to Male NPT Adapter Brass 3/8" 1/4" B-600-1-4
