Product Overview

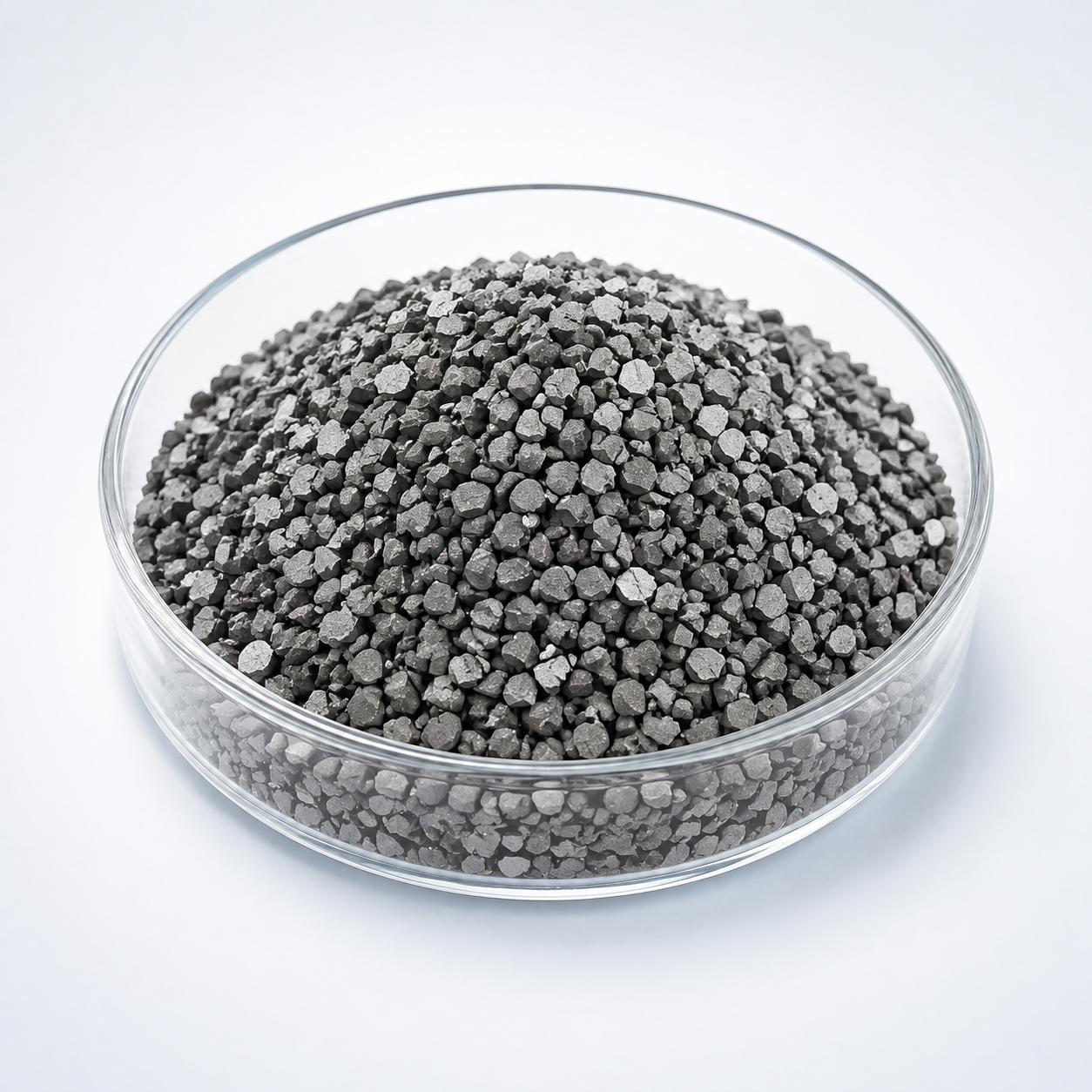

Tantalum Silicide Evaporation Materials (TaSi2) is a high-melting compound evaporation source for specialized thin-film deposition and materials research. Carbides, borides, nitrides, silicides, and related compounds may require electron-beam heating or other high-energy evaporation methods, and some compounds can decompose or change composition before a useful vapor pressure is reached. The evaporation route should therefore be qualified against the required film chemistry rather than assumed to be congruent.
Evaporation Behavior and Process Considerations
These compounds commonly require high-energy evaporation methods such as electron-beam heating. However, high source temperature can also promote decomposition, dissociation, or preferential evaporation. Process qualification should therefore include source-behavior observation and film-composition verification before scaling to long runs.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | Reduces contamination in thin films |
| Form | Pellets / Granules / Pieces | Ensures controlled evaporation |
| Particle Size | 1 – 6 mm (customizable) | Affects evaporation uniformity |
| Melting Point | ~2200°C | Suitable for high-temperature processes |
| Density | ~9.14 g/cm³ | Influences deposition rate stability |
| Stoichiometry | Ta:Si = 1:2 | Ensures consistent film composition |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Tantalum Silicide (TaSi₂) | Excellent thermal stability & conductivity | Semiconductor thin films |
| Tantalum (Ta) | High ductility, pure metal behavior | Adhesion layers, barriers |
| Silicon (Si) | Semiconductor properties | Electronics, photovoltaics |
| Molybdenum Silicide (MoSi₂) | Superior oxidation resistance | High-temperature coatings |
| Question | Answer |
|---|---|
| Can TaSi₂ evaporation materials be customized? | Yes, size, shape, and particle range can be tailored for specific evaporation systems. |
| What evaporation methods are suitable? | Commonly used in e-beam evaporation and thermal evaporation under high vacuum. |
| Is the composition strictly controlled? | Yes, precise stoichiometry ensures consistent thin film performance. |
| How should the material be stored? | In dry, vacuum-sealed packaging to prevent oxidation or contamination. |
| What industries use TaSi₂ most? | Semiconductor, electronics, aerospace, and advanced coating industries. |
Typical Thin-Film Applications
- Hard, refractory, electronic, protective, and specialty compound thin films
- High-temperature or advanced-material coating research
- R&D evaluating decomposition behavior and film stoichiometry under e-beam evaporation
Source Form and Ordering Considerations
For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.
Frequently Asked Questions
Can Tantalum Silicide be evaporated by electron beam?
Electron-beam heating is often evaluated for high-melting compounds because it can provide localized high temperature. However, the compound may decompose before evaporating congruently.
Will Tantalum Silicide maintain its stoichiometry during evaporation?
Not necessarily. Carbides, borides, nitrides, silicides, and related compounds can dissociate or evaporate preferentially, so film composition should be verified.
Why is source conditioning important for Tantalum Silicide?
Gradual conditioning reduces thermal shock, outgassing, and sudden particle ejection while allowing the operator to observe whether the compound remains stable under heating.
What source holder should be used for Tantalum Silicide?
The holder must tolerate the required temperature and avoid chemical reaction with the charge. E-beam hearth or compatible crucible selection should be reviewed for the specific material.
Is a pellet or dense piece preferable for Tantalum Silicide?
A dense, mechanically stable charge is generally easier to load and condition than loose powder. The ideal form depends on hearth size and the required evaporation rate.
What information should I provide for a Tantalum Silicide evaporation-material quotation?
Provide formula, purity, source form, piece or pellet size, quantity, evaporation method, source-holder details, and the intended film composition or application.
