Product Overview

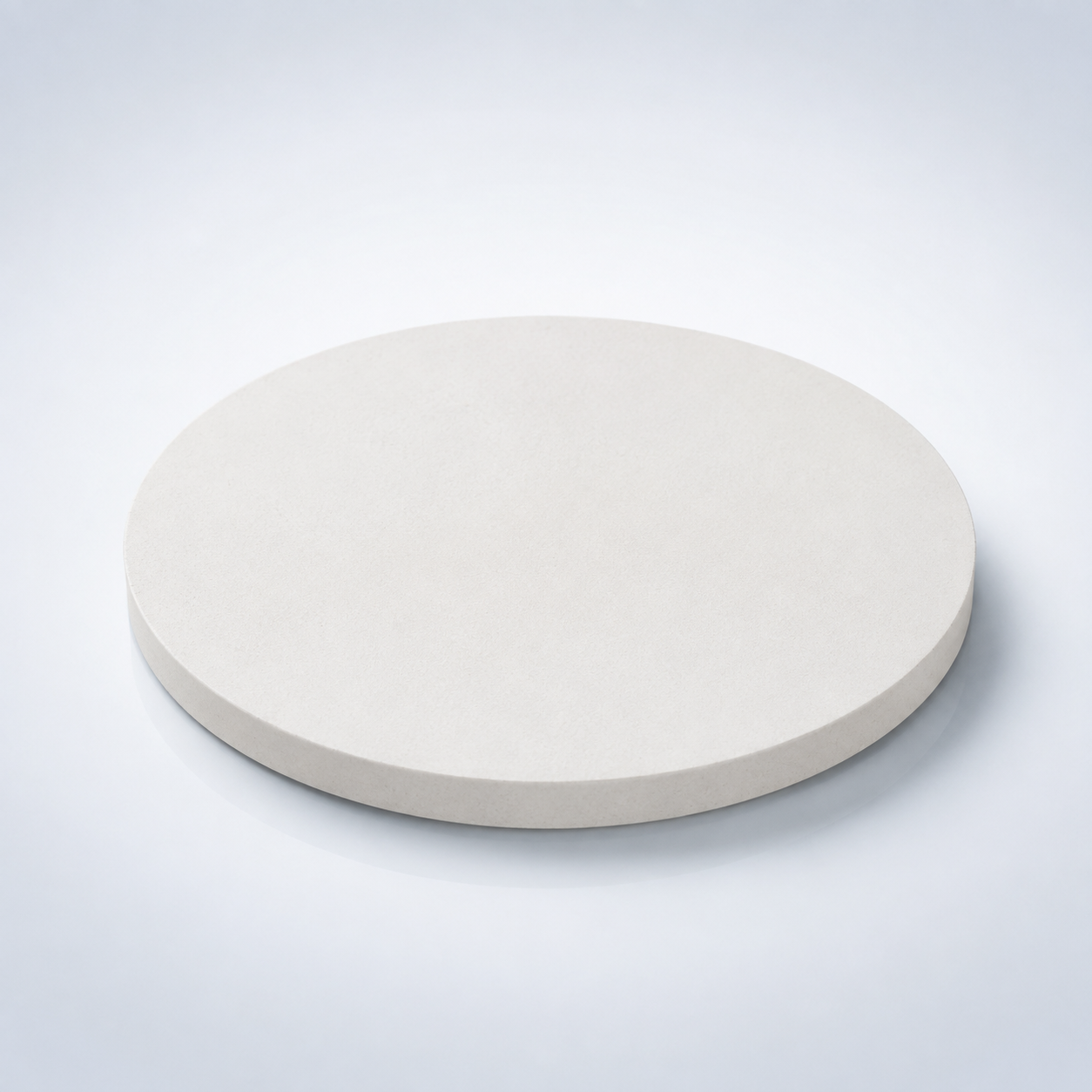

Tellurium Dioxide Sputtering Target (TeO2) is a ceramic sputtering target used to deposit composition-specific oxide thin films. Compared with metallic targets, oxide targets are typically more sensitive to density, porosity, brittleness, thermal shock, and bonding design. In practice, target microstructure, thickness, cooling conditions, and the chosen sputtering mode can all affect arc stability, particle generation, and deposited-film performance.
Material and Deposition Characteristics
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets, while sufficiently conductive formulations may allow alternative power modes in some systems. Target density and microstructural uniformity matter because pores, cracks, and local inhomogeneities can contribute to unstable plasma, particles, or target damage. For brittle ceramics, bonded assemblies and gradual power ramping are often worth evaluating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Chemical Formula | TeO₂ | Defines the stoichiometric oxide composition |
| Purity | 99.9% – 99.99% | High purity ensures optical clarity and stable sputtering |
| Density | 5.99 g/cm³ | Affects film deposition rate and uniformity |
| Melting Point | 733 °C | Determines suitable sputtering temperature |
| Form | Planar / Step / Rotary | Fits various sputtering systems |
| Diameter | 25 – 300 mm (custom) | Matches different target holders |
| Thickness | 3 – 6 mm | Influences sputtering time and rate |
| Backing Plate | Copper / Titanium | Improves heat dissipation and bonding stability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Tellurium Dioxide (TeO₂) | High refractive index, acousto-optic properties | Optical and photonic coatings |
| Silicon Dioxide (SiO₂) | High transparency, low refractive index | Dielectric and optical coatings |
| Zinc Oxide (ZnO) | Conductive and transparent | Semiconductor and display coatings |
| Question | Answer |
|---|---|
| Can TeO₂ targets be customized? | Yes. We can supply customized diameters, thicknesses, and bonded backing plates. |
| Which sputtering systems are compatible? | Suitable for DC, RF, and magnetron sputtering systems. |
| What purity levels are available? | Standard purities are 99.9% and 99.99%, with higher grades available upon request. |
| What are the typical film properties? | TeO₂ films exhibit high refractive index (~2.3 at 632 nm) and excellent optical transmission. |
| Is it moisture sensitive? | Moderately; targets are vacuum-sealed to prevent surface degradation. |
| How is the product packaged? | Vacuum-sealed with anti-static protection, cushioned in export-safe wooden or carton crates. |
| What industries commonly use it? | Optics, photonics, semiconductor manufacturing, and R&D. |
Typical Thin-Film Applications
- Dielectric, insulating, optical, magnetic, protective, or functional ceramic thin films
- Semiconductor, sensor, photonic, and multilayer coating research
- Applications where oxide composition, density, and process stability affect film performance
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
Is Tellurium Dioxide better suited to RF or DC sputtering?
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets. If a specific formulation is sufficiently conductive, other modes may also be possible, but the equipment and target properties should be confirmed.
Why is density important for a Tellurium Dioxide target?
Density and microstructural uniformity affect erosion stability, thermal behavior, and particle risk. Pores, cracks, or local density variations can contribute to unstable sputtering and target damage.
Should a Tellurium Dioxide target be bonded to a backing plate?
Bonding is often useful for brittle oxide targets because it can improve mechanical support and heat transfer. The backing material and bonding method should be chosen according to target size, thickness, and operating conditions.
Will the deposited film always have the same composition as TeO2?
Not always. Film composition can be affected by preferential sputtering, reactive gas, substrate temperature, re-sputtering, and chamber conditions. Composition-sensitive films should be verified after deposition.
How should power be ramped on a brittle Tellurium Dioxide target?
A conservative power ramp and stable cooling are generally advisable. The exact operating procedure should follow the target size, bonding condition, cathode design, and supplier recommendations rather than a universal wattage.
What information should I provide when ordering Tellurium Dioxide?
Provide formula or composition, purity, dimensions, quantity, backing and bonding requirements, cathode model or drawing, and any density, tolerance, or inspection requirements.
