Product Overview

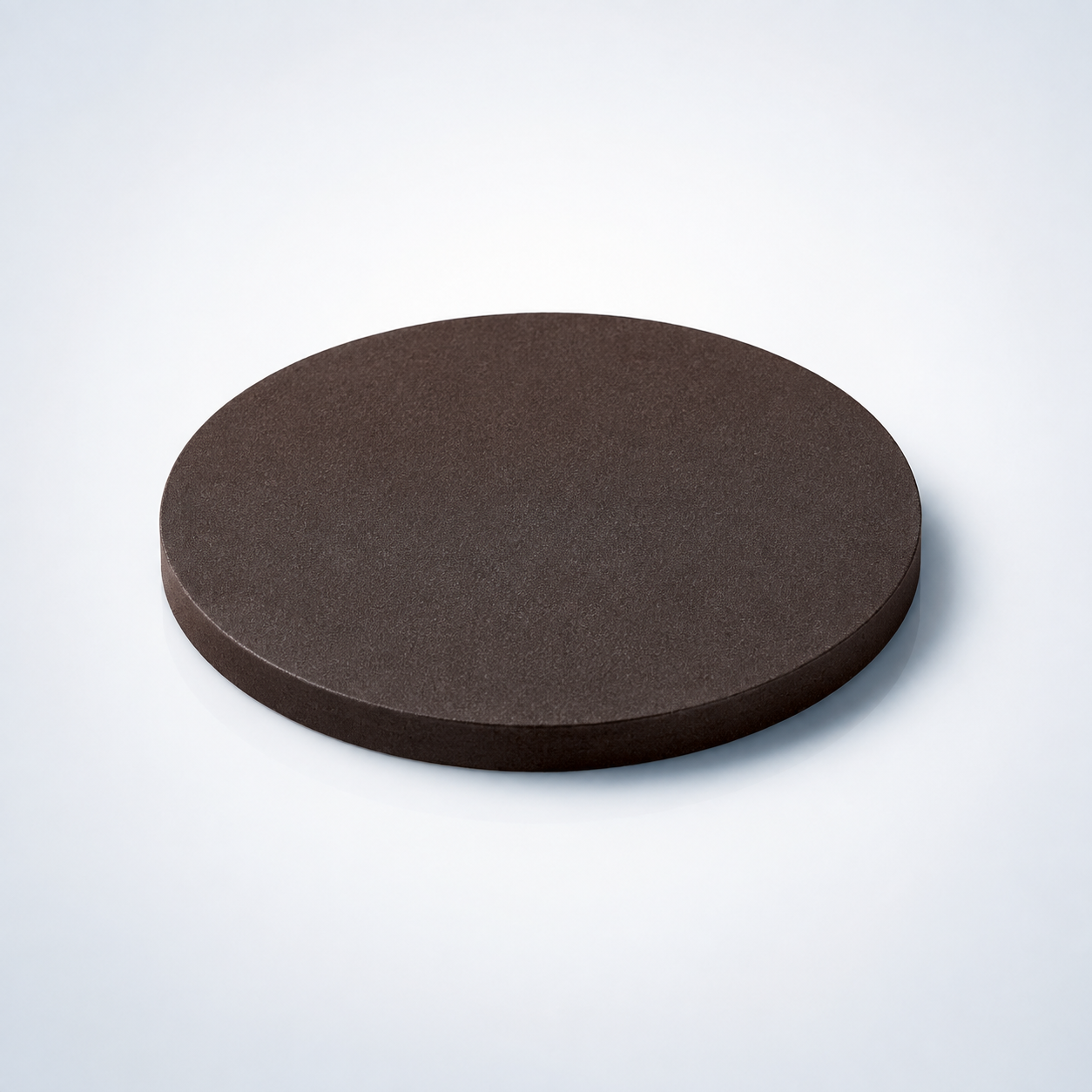

Terbium Iron Garnet Sputtering Target (TbIG) is a ceramic sputtering target used to deposit composition-specific oxide thin films. Compared with metallic targets, oxide targets are typically more sensitive to density, porosity, brittleness, thermal shock, and bonding design. In practice, target microstructure, thickness, cooling conditions, and the chosen sputtering mode can all affect arc stability, particle generation, and deposited-film performance.
Material and Deposition Characteristics
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets, while sufficiently conductive formulations may allow alternative power modes in some systems. Target density and microstructural uniformity matter because pores, cracks, and local inhomogeneities can contribute to unstable plasma, particles, or target damage. For brittle ceramics, bonded assemblies and gradual power ramping are often worth evaluating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | High purity improves optical clarity and magnetic response |
| Diameter | 25 – 150 mm (customizable) | Matches different sputtering system requirements |
| Thickness | 3 – 6 mm | Controls sputtering rate and target lifetime |
| Backing Plate | Copper / Titanium / Indium | Enhances thermal conductivity and mechanical stability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Terbium Iron Garnet (TbIG) | Strong Faraday rotation, low absorption | Magneto-optical isolators |
| Yttrium Iron Garnet (YIG) | Low microwave losses | Microwave and spintronic devices |
| Bismuth Iron Garnet (BIG) | High magneto-optical sensitivity | Optical sensing, photonics |
| Question | Answer |
|---|---|
| Can the TbIG target be customized? | Yes, dimensions, purity, and backing can be tailored to customer requirements. |
| How is the target packaged? | Vacuum-sealed with protective cushioning, shipped in export-compliant cartons or wooden crates. |
| Which industries use TbIG the most? | Optical communications, spintronics, photonics, and advanced research laboratories. |
| Does TbIG require special sputtering conditions? | Yes, it typically requires oxygen partial pressure control to maintain stoichiometry during deposition. |
| What shapes are available? | Discs, rectangular plates, and step targets are common; custom geometries can also be supplied. |
Typical Thin-Film Applications
- Dielectric, insulating, optical, magnetic, protective, or functional ceramic thin films
- Semiconductor, sensor, photonic, and multilayer coating research
- Applications where oxide composition, density, and process stability affect film performance
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
Is Terbium Iron Garnet better suited to RF or DC sputtering?
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets. If a specific formulation is sufficiently conductive, other modes may also be possible, but the equipment and target properties should be confirmed.
Why is density important for a Terbium Iron Garnet target?
Density and microstructural uniformity affect erosion stability, thermal behavior, and particle risk. Pores, cracks, or local density variations can contribute to unstable sputtering and target damage.
Should a Terbium Iron Garnet target be bonded to a backing plate?
Bonding is often useful for brittle oxide targets because it can improve mechanical support and heat transfer. The backing material and bonding method should be chosen according to target size, thickness, and operating conditions.
Will the deposited film always have the same composition as TbIG?
Not always. Film composition can be affected by preferential sputtering, reactive gas, substrate temperature, re-sputtering, and chamber conditions. Composition-sensitive films should be verified after deposition.
How should power be ramped on a brittle Terbium Iron Garnet target?
A conservative power ramp and stable cooling are generally advisable. The exact operating procedure should follow the target size, bonding condition, cathode design, and supplier recommendations rather than a universal wattage.
What information should I provide when ordering Terbium Iron Garnet?
Provide formula or composition, purity, dimensions, quantity, backing and bonding requirements, cathode model or drawing, and any density, tolerance, or inspection requirements.
