Titanium Aluminum Evaporation Materials

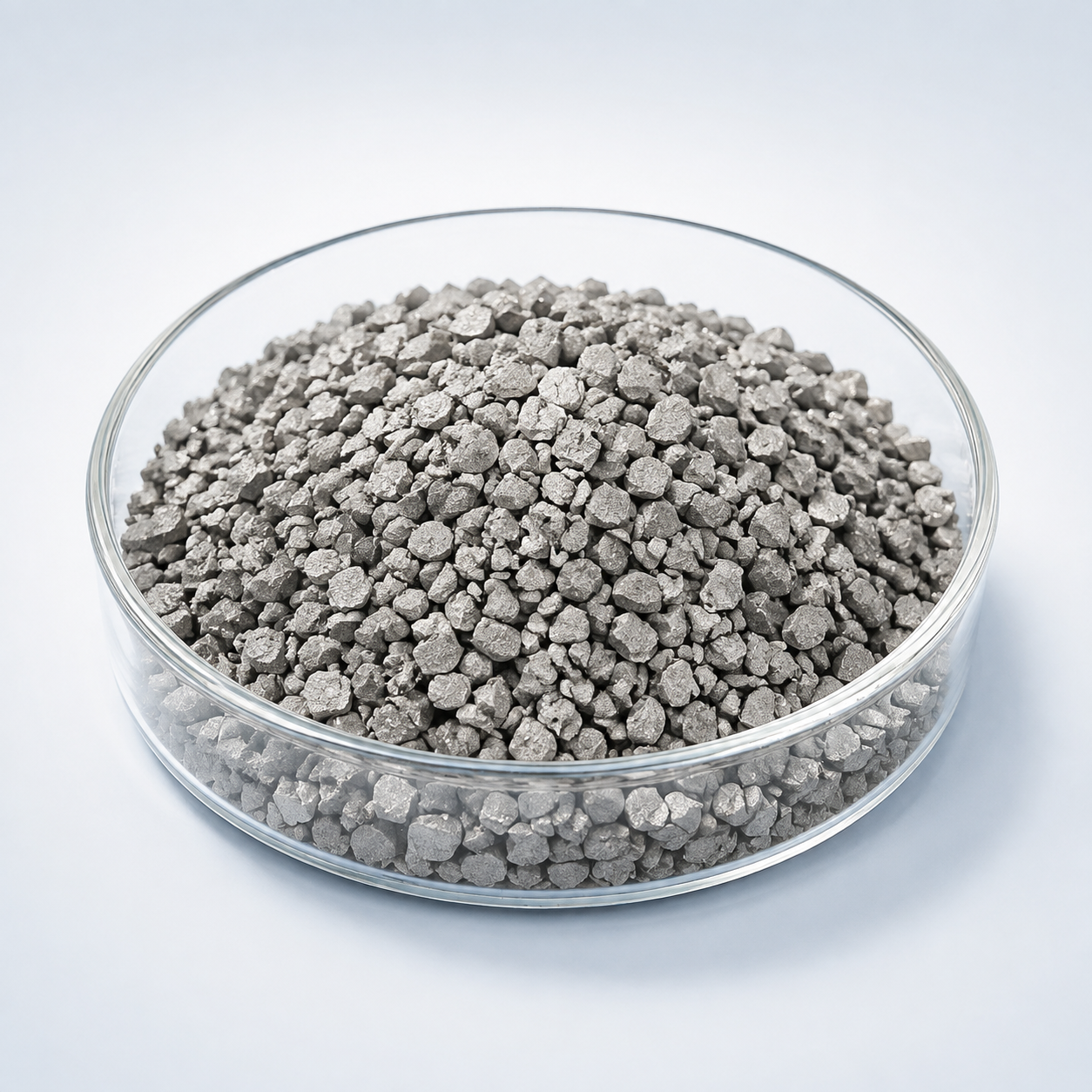

Titanium Aluminum Evaporation Materials, Ti/Al

Material: Titanium Aluminum (Ti/Al)
Chemical Formula: Ti/Al
Catalog No.: TFM-EVM-0305
Purity: 99.9% ~ 99.99%
Shape: Powder/ Granule/ Custom-made

Titanium Aluminum (Ti/Al) evaporation material is supplied by Thin Film Materials (TFM) for vacuum evaporation and thin-film deposition. Available form, size, purity, and packaging can be customized to suit research and production requirements.

MSDS File

Product Overview

Titanium Aluminum Evaporation Materials (Ti/Al) is an alloy evaporation material intended for depositing multi-element metallic films. Unlike a pure element, an alloy may not evaporate congruently because its constituents can have different vapor pressures. As a result, source composition, evaporation method, deposition rate, and film-composition verification should be considered together; for very composition-sensitive films, co-evaporation from separate sources may be evaluated.

Evaporation Behavior and Process Considerations

Different alloying elements may evaporate at different rates because their vapor pressures are not identical. This can cause the source surface and deposited film to drift away from the nominal alloy composition during a run. For demanding composition control, film analysis, source replenishment strategy, or co-evaporation from separately controlled sources may be more reliable than assuming one alloy charge will evaporate congruently.

Technical Data

ParameterTypical Value / RangeImportance
CompositionCustom Ti/Al ratio (e.g., 50/50, 60/40 wt%)Determines mechanical & chemical properties
Purity99.9% – 99.99%Reduces contamination in thin films
FormPellets / Granules / Slugs / CustomCompatible with evaporation sources
Particle Size1 – 10 mm typical (custom)Matches crucible & evaporation setup
Melting BehaviorAlloy-dependentInfluences evaporation stability
Deposition MethodThermal or E-beam evaporationFlexible system compatibility
MaterialKey AdvantageTypical Application
Titanium Aluminum (Ti/Al)Balanced strength & oxidation resistanceMetallization & hard coatings
Pure Titanium (Ti)Strong adhesion & high melting pointAdhesion layers
Pure Aluminum (Al)Lightweight & high conductivityReflective coatings
Titanium Nitride (TiN)Hard, wear-resistant coatingTool coatings
QuestionAnswer
Can the Ti/Al ratio be customized?Yes, alloy composition can be tailored to meet specific film performance requirements.
What forms are available?Pellets, granules, slugs, and custom geometries are available for different evaporation systems.
Is pre-alloyed material recommended?Yes, pre-alloyed Ti/Al ensures uniform evaporation and film composition consistency.
Which deposition method is suitable?Both thermal and electron beam evaporation systems are compatible.
How is the product packaged?Vacuum-sealed with moisture protection and packed in export-safe cartons.

Typical Thin-Film Applications

  • Composition-tuned alloy films for electrical, magnetic, optical, or mechanical functionality
  • Multilayer and thin-film metallization studies
  • R&D where alloy ratio or co-evaporation strategy is part of the process design

Source Form and Ordering Considerations

For quotation, provide material, purity, source form, particle or piece size, quantity, evaporation method, and any boat, basket, crucible, or e-beam hearth constraints. If the material will be used for a specific coating stack, sharing the intended film thickness or deposition application can help with source-form selection and packaging recommendations.

Frequently Asked Questions

Will Titanium Aluminum evaporate with the same composition as the bulk alloy?

Not necessarily. Alloy constituents can have different vapor pressures, so the vapor and deposited film may become enriched in the more volatile component as evaporation proceeds.

When is co-evaporation preferable to using a Titanium Aluminum alloy source?

Co-evaporation can be preferable when precise film composition must be maintained independently because separate source rates can be controlled and adjusted during deposition.

Can Titanium Aluminum be evaporated by electron beam?

Often yes, especially when the alloy requires high source temperature. The actual behavior depends on melting, segregation, evaporation rate, and whether the constituents remain sufficiently mixed in the melt.

How should film composition be verified for Titanium Aluminum?

For composition-critical films, analytical verification such as EDS, XRF, XPS, or another appropriate method should be used rather than assuming the film exactly matches the source alloy.

What source form is suitable for Titanium Aluminum evaporation?

Pieces, pellets, or granules may be supplied depending on the source holder. A stable charge geometry helps reduce movement and sudden changes in the heated surface.

What should I include in a Titanium Aluminum evaporation-material RFQ?

Specify alloy ratio, purity basis, source form and size, quantity, evaporation method, and the required film-composition tolerance if it is important.

Reviews

There are no reviews yet.

Be the first to review “Titanium Aluminum Evaporation Materials, Ti/Al”

Your email address will not be published. Required fields are marked *

Related Products

Related products

FAQ

  • They are high‐purity substances (e.g. metals, alloys, or compounds) used in thermal or electron‐beam evaporation processes to form thin films on substrates.

  • Typically, they’re processed into a form (often ingots, pellets, or wires) that can be efficiently vaporized. Preparation emphasizes high purity and controlled composition to ensure film quality.

  • Thermal evaporation and electron-beam (e-beam) evaporation are the two main techniques, where material is heated (or bombarded with electrons) until it vaporizes and then condenses on the substrate.

  • Thermal evaporation heats the material directly (often using a resistive heater), while e-beam evaporation uses a focused electron beam to locally heat and vaporize the source material—each method offering different control and energy efficiency.

  • Key parameters include source temperature, vacuum level, deposition rate, substrate temperature, and the distance between the source and the substrate. These factors influence film uniformity, adhesion, and microstructure.

  • Evaporation generally produces high-purity films with excellent control over thickness, and it is especially suitable for materials with relatively low melting points or high vapor pressures.

  • Challenges include issues with step coverage (due to line-of-sight deposition), shadowing effects on complex topographies, and possible re-evaporation of material from the substrate if temperature isn’t properly controlled.

  • Common evaporation materials include noble metals (e.g., gold, silver), semiconductors (e.g., silicon, germanium), metal oxides, and organic compounds—each chosen for its specific optical, electrical, or mechanical properties.

  • Selection depends on desired film properties (conductivity, optical transparency, adhesion), compatibility with the evaporation process, and the final device application (semiconductor, optical coating, etc.).

  • Optimizing substrate temperature, deposition rate, and chamber vacuum are critical for ensuring that the film adheres well and forms the intended microstructure without defects.

  • Troubleshooting may involve checking the source material’s purity, ensuring stable source temperature, verifying the vacuum level, adjusting the substrate’s position or temperature, and monitoring deposition rate fluctuations.

While evaporation tends to yield very high purity films with excellent thickness control, it is limited by its line-of-sight nature. In contrast, sputtering can deposit films more uniformly on complex surfaces and is more versatile for a broader range of materials.
