Product Overview

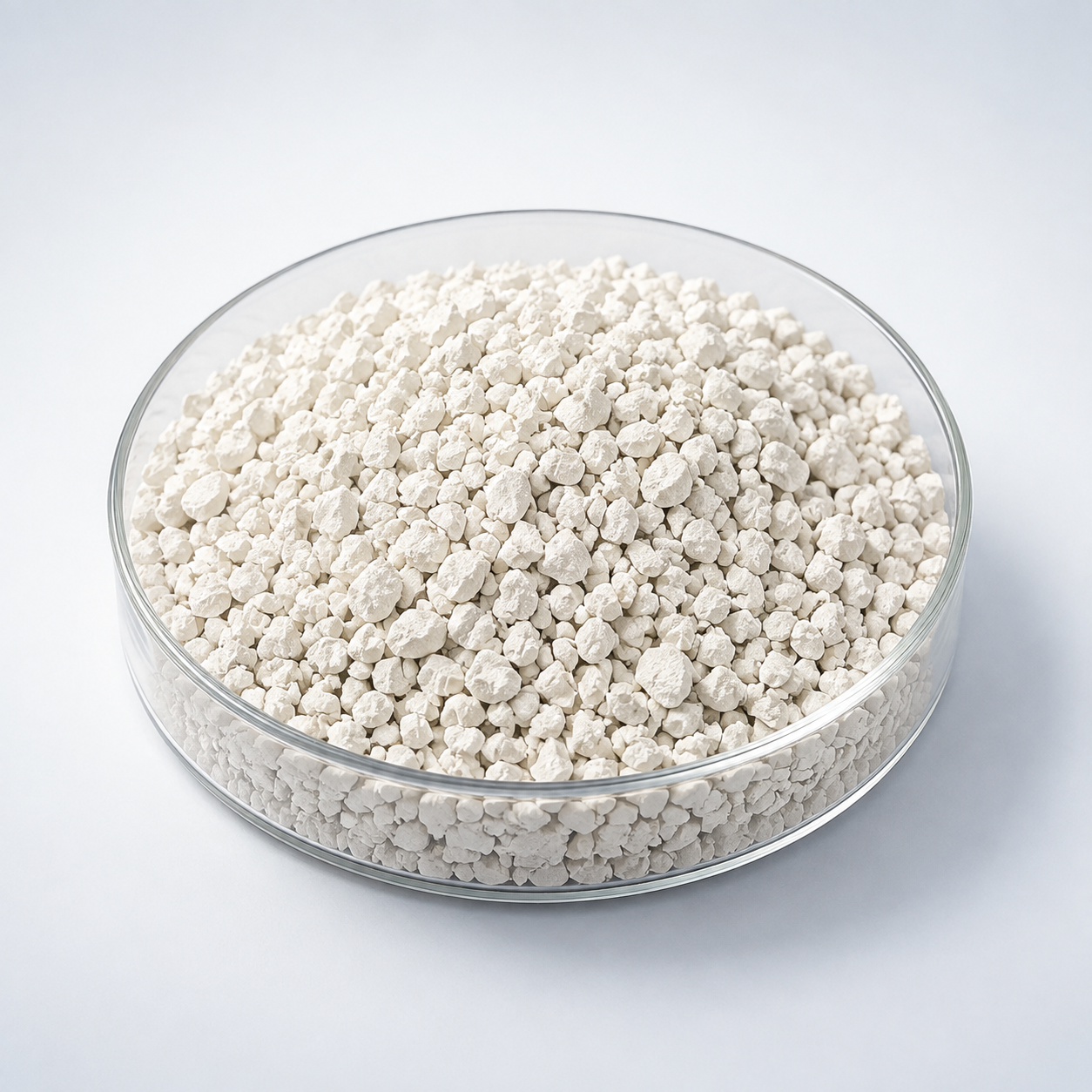

Zinc Oxide doped with Gallium Oxide Evaporation Materials (ZnO/Ga2O3) is a ceramic evaporation material for depositing oxide thin films used in optical, dielectric, electronic, magnetic, protective, or research applications. Many oxides have high melting temperatures and can partially dissociate or lose oxygen during evaporation, making electron-beam evaporation a common process option. Source density, pellet or piece geometry, crucible compatibility, oxygen background, deposition rate, and substrate conditions can all affect film stoichiometry and microstructure.
Evaporation Behavior and Process Considerations
Electron-beam evaporation is frequently evaluated for ceramic oxides because many have high melting temperatures. During heating, oxygen can be lost or the source can partially dissociate, so oxygen partial pressure, substrate temperature, deposition rate, and any post-deposition anneal may need optimization. The source should be conditioned gradually to minimize cracking, spitting, and sudden outgassing.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | High purity improves optical and electrical film performance |
| Composition | ZnO with Ga₂O₃ doping (typically 1–5 wt%) | Controls electrical conductivity and carrier concentration |
| Form | Pellets / Granules / Tablets | Compatible with evaporation sources |
| Particle Size | 1 – 6 mm typical | Ensures stable evaporation behavior |
| Density | High density sintered material | Provides consistent evaporation rates |
| Deposition Method | E-beam evaporation / Thermal evaporation | Suitable for PVD thin film deposition |
| Material | Key Advantage | Typical Application |
|---|---|---|
| ZnO/Ga₂O₃ (GZO) | Transparent conductive oxide with good thermal stability | Displays, solar cells, and optoelectronics |
| Aluminum-doped ZnO (AZO) | Cost-effective TCO material | Solar cells and transparent electrodes |
| Indium Tin Oxide (ITO) | Very high conductivity and transparency | Displays and touch panels |
| Question | Answer |
|---|---|
| What forms are available for ZnO/Ga₂O₃ evaporation materials? | They are typically supplied as pellets, granules, tablets, or pieces suitable for evaporation sources. |
| What deposition methods are compatible with this material? | ZnO/Ga₂O₃ materials are commonly used in electron beam evaporation and thermal evaporation systems. |
| What is the typical gallium doping concentration? | Gallium oxide doping typically ranges from 1% to 5%, depending on the desired conductivity and optical properties. |
| What substrates can GZO films be deposited on? | GZO films can be deposited on glass, silicon wafers, flexible polymers, and ceramic substrates. |
| Why use GZO instead of ITO? | GZO provides a more cost-stable alternative since it avoids the use of indium while maintaining good transparency and conductivity. |
Typical Thin-Film Applications
- Optical, dielectric, transparent conductive, magnetic, protective, or functional oxide films
- Displays, photovoltaics, sensors, semiconductors, and multilayer optical coatings where applicable
- Research on composition, oxygen content, phase, and post-deposition treatment
Source Form and Ordering Considerations
For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.
Frequently Asked Questions
Is Zinc Oxide doped with Gallium Oxide commonly evaporated by electron beam?
Electron-beam evaporation is frequently evaluated for high-melting ceramic oxides because it can provide localized heating. The exact method depends on the oxide, source form, and required film properties.
Can Zinc Oxide doped with Gallium Oxide lose oxygen during evaporation?
Yes. Some oxides can partially dissociate or become oxygen-deficient under vacuum heating. Oxygen partial pressure, substrate temperature, deposition rate, and post-annealing can influence the final film composition.
Why can oxide evaporation sources spit or crack?
Rapid heating, trapped gas, porosity, and thermal gradients can cause cracking or particle ejection. A gradual conditioning ramp and stable source geometry help reduce these effects.
Does the deposited film always match the composition of ZnO/Ga2O3?
Not always. Preferential evaporation, oxygen loss, decomposition, and substrate conditions can shift film chemistry or phase relative to the source material.
What source form is suitable for Zinc Oxide doped with Gallium Oxide?
Pellets, tablets, pieces, or granules may be used depending on the e-beam pocket or crucible. A dense and mechanically stable source form is usually easier to condition reproducibly.
What information should I provide for a Zinc Oxide doped with Gallium Oxide quotation?
Provide formula or composition, purity, source form and size, quantity, evaporation method, source-holder dimensions, and any film-composition or documentation requirements.
