Zinc Tin Evaporation Materials

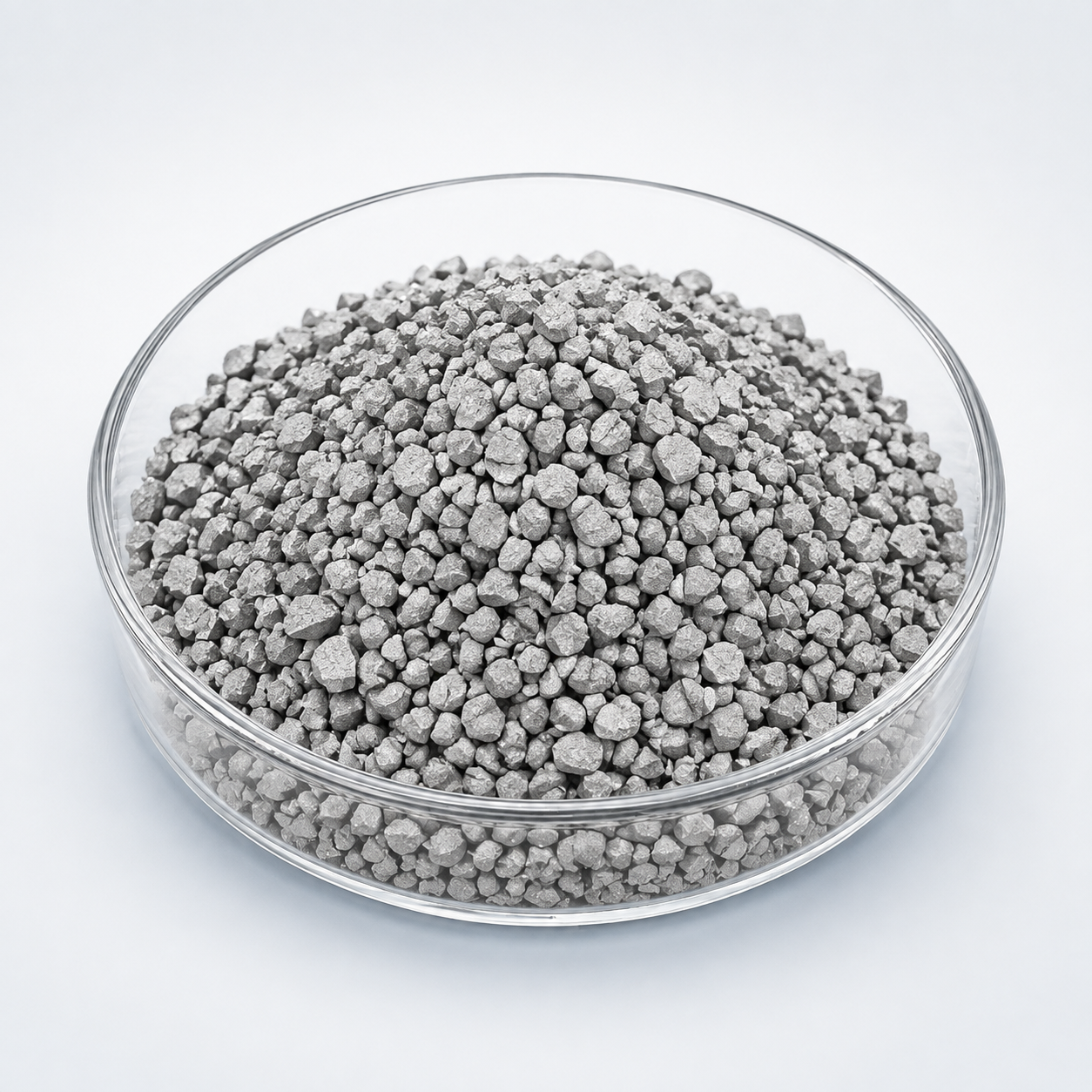

Zinc Tin Evaporation Materials, Zn/Sn

Material: Zinc Tin (Zn/Sn)
Chemical Formula: Zn/Sn
Catalog No.: TFM-EVM-0360
Purity: 99.9% ~ 99.999%
Shape: Powder/ Granule/ Custom-made

Zinc Tin (Zn/Sn) evaporation material is supplied by Thin Film Materials (TFM) for vacuum evaporation and thin-film deposition. Available form, size, purity, and packaging can be customized to suit research and production requirements.

MSDS File

Product Overview

Zinc Tin Evaporation Materials (Zn/Sn) is an alloy evaporation material intended for depositing multi-element metallic films. Unlike a pure element, an alloy may not evaporate congruently because its constituents can have different vapor pressures. As a result, source composition, evaporation method, deposition rate, and film-composition verification should be considered together; for very composition-sensitive films, co-evaporation from separate sources may be evaluated.

Evaporation Behavior and Process Considerations

Different alloying elements may evaporate at different rates because their vapor pressures are not identical. This can cause the source surface and deposited film to drift away from the nominal alloy composition during a run. For demanding composition control, film analysis, source replenishment strategy, or co-evaporation from separately controlled sources may be more reliable than assuming one alloy charge will evaporate congruently.

Technical Data

ParameterTypical Value / RangeImportance
Purity99.9% – 99.999% (3N–5N)Reduces defect density in films
CompositionCustom Zn/Sn ratio (wt% or at%)Controls electrical & optical properties
FormPieces / Granules / PelletsCompatible with evaporation systems
Melting BehaviorComposition-dependent (~200–420°C)Influences evaporation control
Density≥ 99% theoreticalPromotes uniform vaporization
PackagingVacuum-sealed / inert atmospherePrevents oxidation
MaterialKey AdvantageTypical Application
Zinc Tin (Zn/Sn)Tunable oxide semiconductor precursorZTO & TFT layers
Pure Zinc (Zn)High vapor pressure & oxide formation capabilityZnO films
Pure Tin (Sn)Improved conductivity & stabilityAlloying element in TCOs
Indium Tin (In/Sn)Established TCO system (ITO)Transparent electrodes
QuestionAnswer
Can the Zn/Sn ratio be customized?Yes, alloy composition can be tailored to achieve target film conductivity and transparency.
Is the material pre-alloyed?Yes, standard Zn/Sn evaporation materials are supplied pre-alloyed for uniform evaporation behavior.
Is reactive evaporation required?For oxide film formation such as ZTO, reactive evaporation in oxygen atmosphere is typically used.
Are custom sizes available?Yes, granule size and pellet dimensions can be customized based on system requirements.
Which industries use Zn/Sn films most?Display manufacturing, photovoltaic development, semiconductor research, and advanced coatings R&D.

Typical Thin-Film Applications

  • Composition-tuned alloy films for electrical, magnetic, optical, or mechanical functionality
  • Multilayer and thin-film metallization studies
  • R&D where alloy ratio or co-evaporation strategy is part of the process design

Source Form and Ordering Considerations

For quotation, provide material, purity, source form, particle or piece size, quantity, evaporation method, and any boat, basket, crucible, or e-beam hearth constraints. If the material will be used for a specific coating stack, sharing the intended film thickness or deposition application can help with source-form selection and packaging recommendations.

Frequently Asked Questions

Will Zinc Tin evaporate with the same composition as the bulk alloy?

Not necessarily. Alloy constituents can have different vapor pressures, so the vapor and deposited film may become enriched in the more volatile component as evaporation proceeds.

When is co-evaporation preferable to using a Zinc Tin alloy source?

Co-evaporation can be preferable when precise film composition must be maintained independently because separate source rates can be controlled and adjusted during deposition.

Can Zinc Tin be evaporated by electron beam?

Often yes, especially when the alloy requires high source temperature. The actual behavior depends on melting, segregation, evaporation rate, and whether the constituents remain sufficiently mixed in the melt.

How should film composition be verified for Zinc Tin?

For composition-critical films, analytical verification such as EDS, XRF, XPS, or another appropriate method should be used rather than assuming the film exactly matches the source alloy.

What source form is suitable for Zinc Tin evaporation?

Pieces, pellets, or granules may be supplied depending on the source holder. A stable charge geometry helps reduce movement and sudden changes in the heated surface.

What should I include in a Zinc Tin evaporation-material RFQ?

Specify alloy ratio, purity basis, source form and size, quantity, evaporation method, and the required film-composition tolerance if it is important.

Reviews

There are no reviews yet.

Be the first to review “Zinc Tin Evaporation Materials, Zn/Sn”

Your email address will not be published. Required fields are marked *

Related Products

Related products

FAQ

  • They are high‐purity substances (e.g. metals, alloys, or compounds) used in thermal or electron‐beam evaporation processes to form thin films on substrates.

  • Typically, they’re processed into a form (often ingots, pellets, or wires) that can be efficiently vaporized. Preparation emphasizes high purity and controlled composition to ensure film quality.

  • Thermal evaporation and electron-beam (e-beam) evaporation are the two main techniques, where material is heated (or bombarded with electrons) until it vaporizes and then condenses on the substrate.

  • Thermal evaporation heats the material directly (often using a resistive heater), while e-beam evaporation uses a focused electron beam to locally heat and vaporize the source material—each method offering different control and energy efficiency.

  • Key parameters include source temperature, vacuum level, deposition rate, substrate temperature, and the distance between the source and the substrate. These factors influence film uniformity, adhesion, and microstructure.

  • Evaporation generally produces high-purity films with excellent control over thickness, and it is especially suitable for materials with relatively low melting points or high vapor pressures.

  • Challenges include issues with step coverage (due to line-of-sight deposition), shadowing effects on complex topographies, and possible re-evaporation of material from the substrate if temperature isn’t properly controlled.

  • Common evaporation materials include noble metals (e.g., gold, silver), semiconductors (e.g., silicon, germanium), metal oxides, and organic compounds—each chosen for its specific optical, electrical, or mechanical properties.

  • Selection depends on desired film properties (conductivity, optical transparency, adhesion), compatibility with the evaporation process, and the final device application (semiconductor, optical coating, etc.).

  • Optimizing substrate temperature, deposition rate, and chamber vacuum are critical for ensuring that the film adheres well and forms the intended microstructure without defects.

  • Troubleshooting may involve checking the source material’s purity, ensuring stable source temperature, verifying the vacuum level, adjusting the substrate’s position or temperature, and monitoring deposition rate fluctuations.

While evaporation tends to yield very high purity films with excellent thickness control, it is limited by its line-of-sight nature. In contrast, sputtering can deposit films more uniformly on complex surfaces and is more versatile for a broader range of materials.
