Product Overview

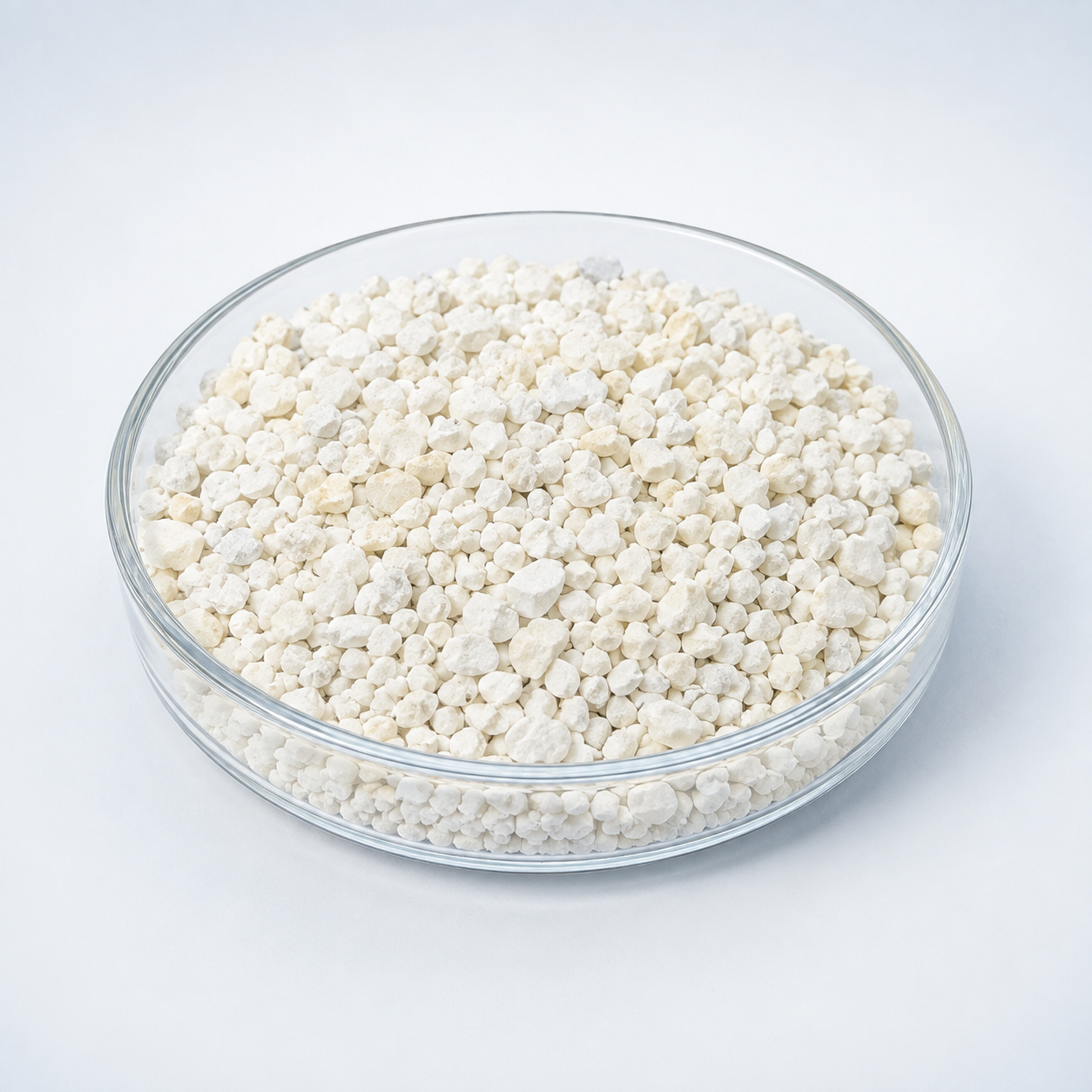

Zirconium Tetrafluoride Evaporation Materials (ZrF4) is a fluoride evaporation material commonly considered for optical and functional thin-film deposition. Fluoride sources can be sensitive to source cleanliness, moisture pickup, spitting, and crucible compatibility depending on the compound and heating method. A controlled vacuum, gradual preconditioning, and stable evaporation rate help reduce particles and improve repeatability.
Evaporation Behavior and Process Considerations
Fluoride charges should be loaded into compatible, clean source hardware and conditioned gradually. Depending on the material, resistance heating or electron-beam evaporation may be used. Stable vacuum and rate control are important because moisture or trapped gases can increase spitting and film defects during initial heating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Chemical Formula | ZrF₄ | Defines film chemistry |
| Purity | 99.9% – 99.999% (3N–5N) | Reduces optical absorption |
| Form | Powder / Granule / Pellet | System compatibility |
| Particle Size | 0.5 – 5 mm typical (custom) | Stable evaporation rate |
| Deposition Method | Thermal evaporation preferred | Optimized for fluoride materials |
| Storage Condition | Moisture-controlled environment | Prevents hydrolysis |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Zirconium Tetrafluoride (ZrF₄) | Good IR transparency & dielectric stability | Optical coatings |
| Hafnium Tetrafluoride (HfF₄) | Slightly different refractive index tuning | Precision optics |
| Magnesium Fluoride (MgF₂) | Very low refractive index | Antireflection coatings |
| Calcium Fluoride (CaF₂) | Excellent broad-spectrum IR transmission | Optical windows |
| Question | Answer |
|---|---|
| Is ZrF₄ sensitive to moisture? | Yes, it must be stored in a dry, sealed environment to prevent hydrolysis. |
| Can particle size be customized? | Yes, granule and pellet sizes can be tailored to your evaporation setup. |
| What purity level is recommended for optical coatings? | 4N or higher purity is typically preferred for high-performance optical films. |
| Which deposition method is suitable? | Thermal evaporation is most commonly used; E-beam may be applied depending on equipment. |
| How is the material packaged? | Vacuum-sealed with desiccant and moisture-barrier packaging to ensure stability during shipment. |
Typical Thin-Film Applications
- Optical thin-film stacks and wavelength-control coatings
- Dielectric, protective, UV, visible, or infrared coating research depending on the fluoride
- Multilayer designs requiring low-absorption inorganic evaporation materials
Source Form and Ordering Considerations
For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.
Frequently Asked Questions
Is Zirconium Tetrafluoride used for optical evaporation coatings?
Many fluoride materials are used in optical thin-film stacks because of their useful refractive-index and transmission characteristics. The actual suitability depends on wavelength range and film design.
Can Zirconium Tetrafluoride be thermally evaporated?
Some fluorides can be processed by resistance heating, while others are evaporated by electron beam. The choice depends on melting behavior, vapor pressure, rate requirement, and source compatibility.
Why is gradual preconditioning important for Zirconium Tetrafluoride?
Fluoride charges can release adsorbed moisture or trapped gas during initial heating. A slow ramp helps reduce pressure spikes, spitting, and particle defects.
Does crucible material matter for Zirconium Tetrafluoride?
Yes. The evaporation source should be chemically and thermally compatible with the fluoride at operating temperature to reduce contamination or reaction.
Can film composition differ from the fluoride source?
It can, depending on dissociation behavior and deposition conditions. Film optical properties should therefore be checked against the coating specification rather than inferred only from source chemistry.
What should I specify when ordering Zirconium Tetrafluoride evaporation material?
Provide purity, source form and size, quantity, evaporation method, crucible or boat constraints, and the optical-coating application if relevant.
