Introduction to Zirconium and Its Unique Properties

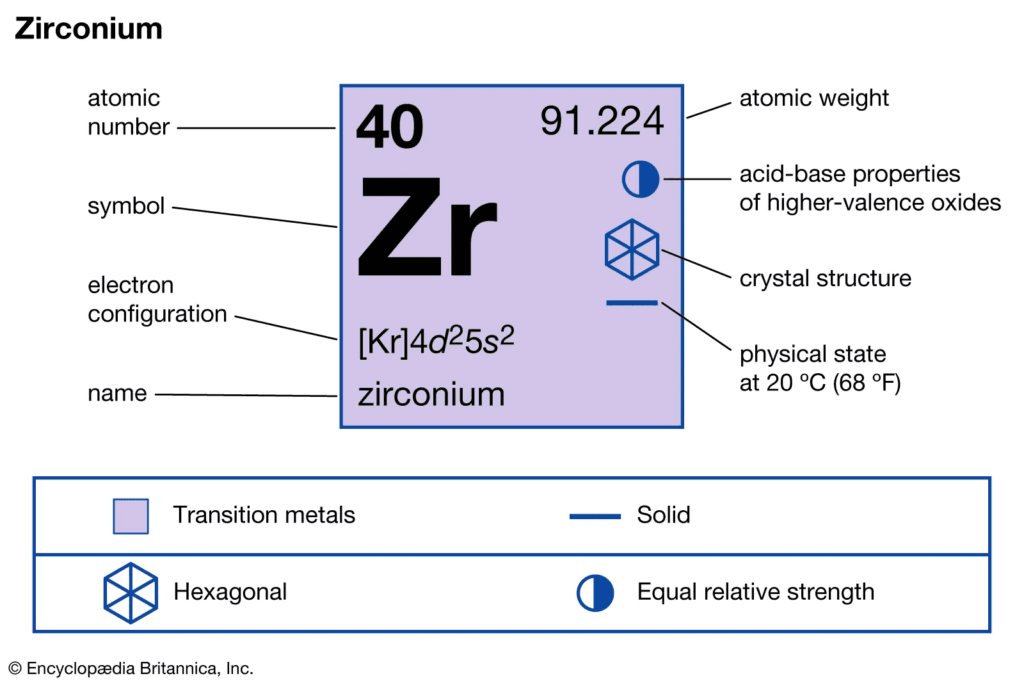

Zirconium (Zr) is a highly resilient transition metal characterized by its silver-grey appearance, notable corrosion resistance, and remarkable stability under extreme temperatures. Its ability to form a protective oxide layer when exposed to air renders zirconium exceptionally resistant to corrosion from most acids and alkalis, notably outperforming even stainless steel in highly oxidizing environments like concentrated nitric acid.
A pivotal advantage of zirconium lies in its exceptionally low thermal neutron absorption cross-section (~0.18 barn), making it ideal for nuclear applications. Unlike many metals, zirconium does not readily absorb neutrons, a critical factor for maintaining efficient nuclear chain reactions.
Mechanically, zirconium offers excellent ductility, moderate strength, and minimal thermal expansion, crucial attributes for maintaining structural integrity under high thermal cycles and stress conditions.
Manufacturing Process of Zirconium Tubes
Raw Material Preparation and Metallurgy
The zirconium manufacturing process starts with the extraction and refinement of zirconium from zirconium oxide through the Kroll Process. Zirconium oxide reacts with chlorine gas at high temperatures to produce zirconium tetrachloride, which is subsequently reduced by magnesium to form sponge zirconium. After purification through vacuum distillation to remove impurities like magnesium and chlorine, high-purity zirconium sponge is produced.
For nuclear-grade zirconium, additional processes remove traces of hafnium, an element detrimental to neutron economy due to its high neutron absorption. This refined sponge is then compressed into blocks and melted under vacuum conditions, typically through vacuum arc remelting (VAR), forming ingots.
Tube Formation and Fabrication
The ingots undergo intensive hot forging and extrusion processes to produce preliminary tube billets. Hot extrusion creates thick-walled hollow tube blanks that are later subjected to cold rolling and drawing operations. Zirconium tubes are commonly produced by pilger rolling (cold rolling) or drawing processes, interspersed with intermediate annealing stages to achieve the desired dimensions, mechanical properties, and microstructure.
Welding Considerations
Zirconium’s high reactivity at elevated temperatures necessitates stringent welding conditions. Inert gas welding, especially TIG welding with ultra-high-purity argon, is required to prevent contamination by oxygen, nitrogen, or hydrogen, which could significantly degrade the metal’s properties. Electron beam welding (EBW) is another precise welding method used for high-quality zirconium tube joints.
Applications of Zirconium Tubes Across Industries
Nuclear Industry

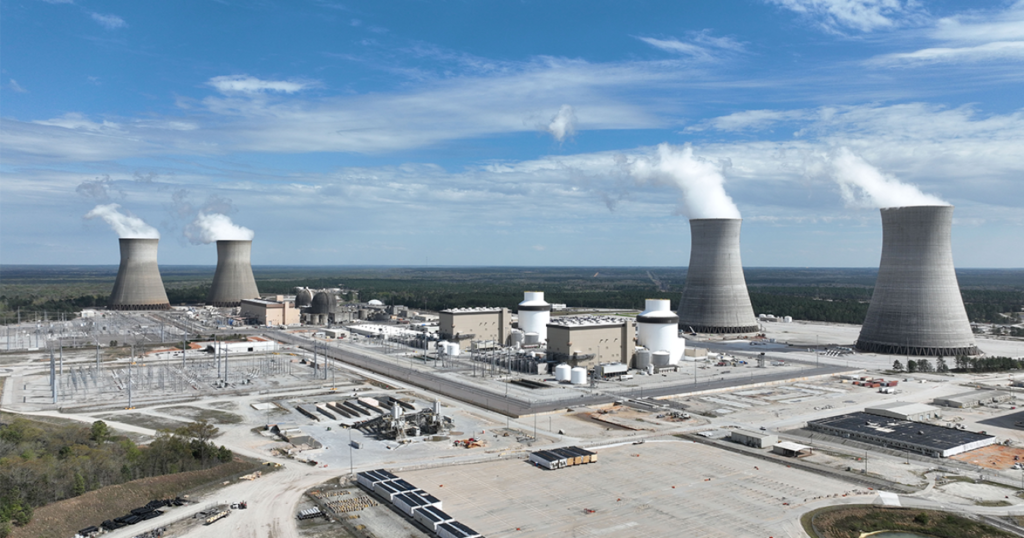

Zirconium tubes are fundamental in the nuclear industry, predominantly as cladding for nuclear fuel rods in water-cooled reactors (PWR, BWR). Zirconium’s low neutron absorption makes it uniquely suitable for maintaining the reactor’s neutron economy. Zircaloy-2, Zircaloy-4, and Zr-2.5Nb are prominent alloys utilized for their enhanced corrosion resistance and mechanical integrity under nuclear reactor conditions.
Beyond fuel cladding, zirconium tubes are used in heat exchangers and condenser tubing within nuclear power plants, effectively resisting corrosion in high-temperature aqueous environments and strong acid conditions encountered in nuclear fuel reprocessing facilities.
Chemical Processing Industry
Zirconium tubes exhibit outstanding performance in aggressive chemical environments, where they withstand highly corrosive acids such as nitric, sulfuric, and phosphoric acids. This corrosion resistance drastically reduces maintenance and downtime in chemical plants. Zirconium tubes are widely employed in chemical reactors, condensers, heat exchangers, pipelines, and valves, significantly extending equipment lifespan compared to stainless steel or titanium in harsh chemical conditions.
Medical Industry
Thanks to zirconium’s biocompatibility, zirconium alloys are increasingly used in medical implants, especially in orthopedic joint replacements. Zirconium alloy surfaces are often oxidized to form zirconium oxide ceramic coatings, enhancing wear resistance and longevity in joint prostheses such as knee and hip replacements.
Aerospace Industry
In aerospace applications, zirconium’s high melting point and stability under extreme conditions make it suitable for specialized parts in engines and propulsion systems exposed to high-temperature and corrosive environments. Additionally, zirconium serves as a vacuum getter material in spacecraft electronics and vacuum tubes, maintaining ultra-high vacuum conditions by absorbing residual gases.
Comparative Analysis with Other Materials
Zirconium vs. Titanium
While titanium is lighter and also corrosion-resistant, zirconium surpasses titanium in highly oxidizing environments like hot nitric acid. Titanium alloys tend to experience corrosion under such conditions. Zirconium’s neutron absorption is significantly lower than titanium’s (~6 barn), reinforcing its dominance in nuclear reactor applications.
Zirconium vs. Stainless Steel
Stainless steel provides adequate corrosion resistance in many general applications but falls short under severe conditions involving chloride ions or strong oxidizers like nitric acid, where zirconium excels. Additionally, stainless steel’s higher neutron absorption (~3 barn) limits its effectiveness in nuclear contexts, further highlighting zirconium’s suitability.
Zirconium vs. Nickel-Based Alloys
Nickel-based alloys (e.g., Hastelloy, Inconel) excel in extremely high-temperature and corrosive environments, especially in strongly reducing media. However, these alloys have higher neutron absorption, greater density, and typically higher costs, making zirconium more suitable for nuclear applications and certain specialized chemical processes involving oxidizing acids.
| Material | Density (g/cm³) | Corrosion Resistance | High-Temperature Capability | Neutron Absorption (barn) |
|---|---|---|---|---|
| Zirconium | 6.5 | Excellent (most acids except HF) | Very Good (~1850°C melting point) | ~0.18 |
| Titanium | 4.5 | Good (moderate oxidizing environments) | Good (~1668°C melting point) | ~6 |
| Stainless Steel | 7.8 | Moderate (chloride environments poor) | Moderate (~1400°C melting point) | ~3 |
| Nickel-Based Alloys | 8.2 | Excellent (reducing acids) | Excellent (~1400°C melting point) | ~4.5 |
Future Perspectives and Market Outlook
Zirconium tubes continue to witness growing demand across nuclear and chemical industries due to their unmatched performance under severe environmental conditions. Advances in alloy development, including newer zirconium-based alloys with enhanced corrosion resistance and higher mechanical strength, promise further expansion of zirconium’s applicability.
Emerging applications in biomedical implants and aerospace sectors signal an optimistic trajectory for zirconium tubes, driven by ongoing research and technological innovations designed to harness zirconium’s exceptional properties.
In conclusion, zirconium tubes play a crucial and expanding role across multiple high-tech industries, providing robust solutions to critical material challenges. The continuous development and refinement of zirconium alloys suggest sustained growth in their industrial adoption, cementing their position as indispensable materials in demanding environments.
Frequently Asked Questions (FAQs)
- What is the primary use of zirconium tubes in the nuclear industry? Zirconium tubes are mainly used as fuel cladding in nuclear reactors due to their low neutron absorption and high corrosion resistance.
- How does zirconium compare to titanium in corrosion resistance? Zirconium offers superior resistance to highly oxidizing acids, like hot nitric acid, compared to titanium.
- Can zirconium tubes withstand high temperatures? Yes, zirconium tubes have a high melting point (~1850°C), making them suitable for high-temperature applications.
- Why is zirconium chosen over stainless steel for nuclear applications? Zirconium’s significantly lower neutron absorption compared to stainless steel makes it ideal for nuclear applications.
- What are the main manufacturing processes for zirconium tubes? Zirconium tubes are typically produced through hot extrusion followed by cold rolling or drawing with intermediate annealing.
- Is zirconium biocompatible for medical applications? Yes, zirconium is biocompatible and commonly used for medical implants such as orthopedic joint replacements.
- What welding methods are suitable for zirconium tubes? TIG welding with ultra-high-purity argon and electron beam welding (EBW) are commonly used methods for zirconium tubes.
- In which chemical environments is zirconium tube most effective? Zirconium tubes excel in handling aggressive chemical environments, notably nitric, sulfuric, and phosphoric acids.
- What are common zirconium alloys used in nuclear reactors? Common alloys include Zircaloy-2, Zircaloy-4, and Zr-2.5Nb, known for their enhanced corrosion resistance and mechanical properties.
- What emerging applications are anticipated for zirconium tubes? Zirconium tubes are increasingly finding applications in biomedical implants and aerospace sectors due to ongoing material and technological advancements.
