Introduction
Diaphragm valves are a crucial component in many industrial systems, particularly in applications where fluid and gas control is vital. Their unique design and operational mechanism make them suitable for diverse environments, from highly sterile industries like pharmaceuticals to harsh chemical processing environments. In this article, we’ll explore the working principles of diaphragm valves, their primary applications, advantages, and how they compare to sanitary ball valves. By the end, you’ll have a clear understanding of when and why diaphragm valves should be used in various industrial settings.
What is a Diaphragm Valve?
A diaphragm valve is a type of valve that regulates the flow of liquids, gases, or slurries through the movement of a diaphragm. The diaphragm is typically made of elastomeric materials like rubber, PTFE (Teflon), or other flexible polymers, and it serves as the main sealing element between the valve body and the flow path. The diaphragm flexes in response to external pressure from an actuator, typically a pneumatic or manual system, allowing or blocking the flow of fluid.
The key advantage of diaphragm valves is their ability to provide a reliable, tight seal without the use of traditional mechanical valve components like ball valves or gate valves. This makes diaphragm valves particularly useful in applications where leakage prevention, hygiene, and flow control precision are critical.

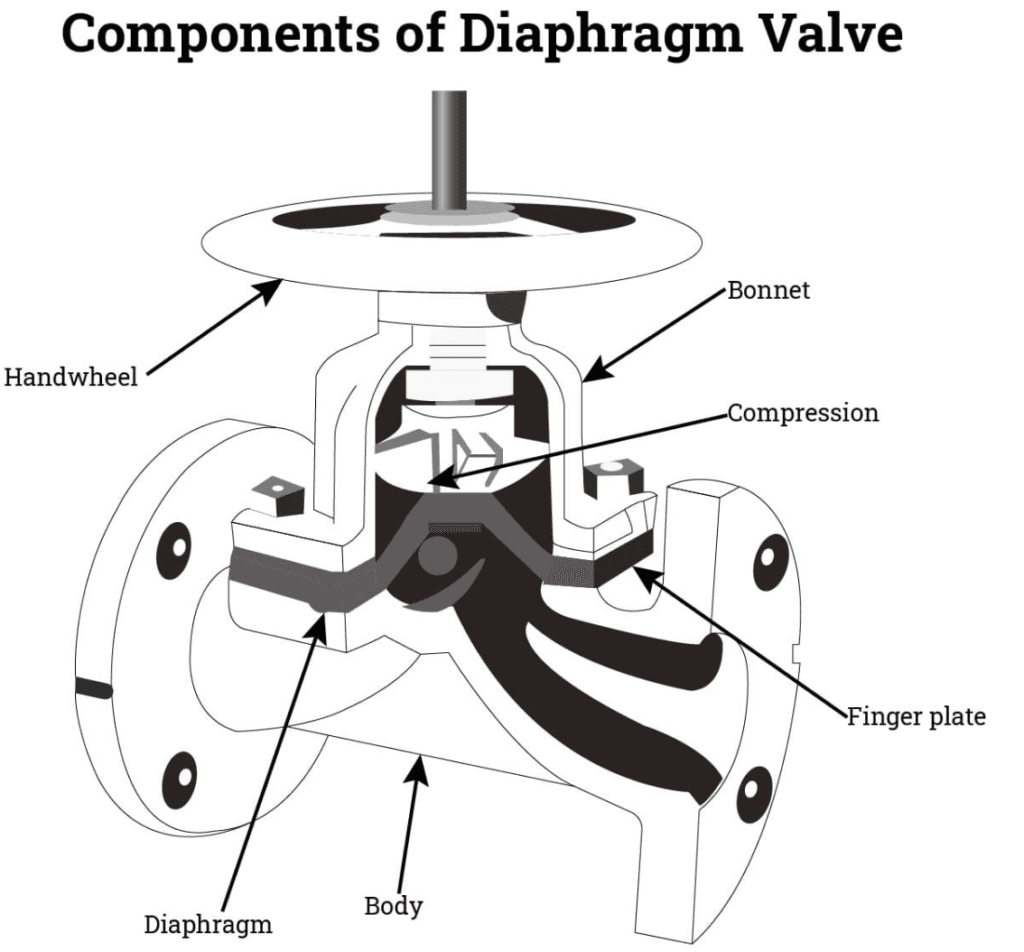

Design Features of a Diaphragm Valve
The design of a diaphragm valve is quite distinct from other types of valves, contributing to its unique advantages. Here’s a closer look at the main design features:
- Diaphragm Material: The material used for the diaphragm is crucial as it needs to be compatible with the fluids or gases the valve will control. Common materials include:
- Rubber: Used for general-purpose applications.
- PTFE (Teflon): Used for handling aggressive chemicals and high temperatures.
- EPDM and Nitrile: These materials are used in food and pharmaceutical applications due to their excellent chemical resistance and FDA approval.
- Valve Body: The valve body is typically made of stainless steel or other high-strength alloys for durability. In some applications, the valve body may also have a special lining (e.g., PTFE) to improve chemical resistance.
- Actuator Mechanism: The actuator controls the movement of the diaphragm. It can be pneumatic, electric, or manual. Pneumatic actuators are most common in industrial automation, where precise control is necessary.
- Sealing: The diaphragm directly contacts the valve seat, providing a tight seal that prevents leaks. The design minimizes the risk of contamination, which is vital for industries like pharmaceuticals and food processing.
- Flow Path Design: Diaphragm valves feature a smooth and unobstructed flow path, which reduces the likelihood of clogging, particularly when handling viscous fluids or slurries.
What are Diaphragm Valves Used Primarily For?
Diaphragm valves are versatile and find applications in a broad range of industries where precise control of fluid flow, reliability, and cleanliness are paramount. Below are some of the primary applications:
1. Pharmaceutical and Biotech Industries
In pharmaceutical and biotechnology applications, diaphragm valves play a critical role in maintaining sterile environments. These industries often deal with liquids, gases, and powders that must be handled with the utmost care to prevent contamination. Diaphragm valves are used in processes such as:
- Sterilization: Diaphragm valves regulate the flow of steam or chemicals used for sterilizing equipment, ensuring that sterilization processes are effective without introducing contaminants.
- Chemical Reactors: When precise control of chemical reactions is needed, diaphragm valves ensure that the right chemicals are dispensed in the correct amounts without the risk of leaks or cross-contamination.
- Mixing and Blending: In processes where various substances are mixed, diaphragm valves offer a clean and controlled way to manage the flow of ingredients, ensuring consistency and quality.
2. Food and Beverage Processing
Diaphragm valves are also essential in food and beverage production, where hygiene is critical. They are commonly used in systems handling water, liquid ingredients, or even during pasteurization and sterilization processes. The primary benefits of diaphragm valves in this sector include:
- Cleanliness: The smooth surface of the diaphragm and the absence of dead spaces prevent contamination and make it easier to clean the valve between batches.
- Flow Control: Diaphragm valves provide accurate control over the flow of liquids, ensuring that the right amount of ingredients or water is added to production processes.
- Compatibility with Harsh Conditions: Diaphragm valves can withstand high pressures and temperatures, which are often encountered during sterilization or pasteurization.
3. Chemical Processing
In chemical plants, diaphragm valves are employed to regulate the flow of dangerous or corrosive fluids. Their primary advantages in these environments include:
- Chemical Resistance: The diaphragm’s material can be selected to withstand highly aggressive chemicals, such as acids, bases, and solvents, making diaphragm valves ideal for chemical processing plants.
- Leak Prevention: Diaphragm valves provide an extremely tight seal, minimizing the risk of chemical spills or leaks that could harm employees or the environment.
- Flow Regulation: Many chemical processes require the precise control of flow rates, and diaphragm valves are capable of regulating the flow of chemicals without risking contamination or material degradation.
4. Water and Wastewater Treatment
Diaphragm valves play an important role in both water treatment and wastewater systems. They are used for:
- Pressure Regulation: Diaphragm valves help control the pressure in water treatment systems, ensuring that water flows smoothly through pipelines and treatment units.
- Chemical Dosing: Diaphragm valves are used to introduce chemicals such as chlorine or flocculants into water streams for treatment purposes. The precision control offered by diaphragm valves ensures that the correct amounts of chemicals are dosed.
- Flow Control: In wastewater treatment, diaphragm valves are used to regulate the flow of treated water and sludge, ensuring the system operates efficiently.
5. Pulp and Paper Industry
The pulp and paper industry relies on diaphragm valves for handling slurries, pulp, and chemicals involved in the paper-making process. Diaphragm valves are chosen for their:
- Durability: The ability to withstand the abrasive nature of pulp and paper slurries.
- Chemical Resistance: Many chemicals used in paper manufacturing, such as bleaching agents and acids, can be harsh on valve components. Diaphragm valves can be designed with materials that resist these chemicals, ensuring long-term reliability.
What are the Advantages of Diaphragm Valves?
Diaphragm valves offer a range of advantages that make them a preferred choice in various industries. Below are some of the most prominent benefits:
1. Leak-Proof Design
One of the standout features of diaphragm valves is their ability to prevent leaks. The diaphragm presses firmly against the valve seat, forming a tight seal that prevents the escape of gases, liquids, or contaminants. This is crucial in industries such as pharmaceuticals, food processing, and chemical manufacturing, where leaks can lead to contamination, safety hazards, or environmental damage.
2. Hygiene and Cleanliness
In industries where hygiene is critical, diaphragm valves excel. The diaphragm valve design minimizes the risk of contamination because:
- There are no cavities or pockets in which fluids can collect, as is the case in some other valve types.
- The design is smooth and can be easily cleaned, making it ideal for food, beverage, and pharmaceutical applications.
- Diaphragm valves can be equipped with quick-connect fittings, allowing for easy sanitization without disassembling the entire valve.
3. Durability and Resistance
Diaphragm valves are designed to withstand harsh operating conditions, including high temperatures, pressures, and exposure to aggressive chemicals. The materials used for the diaphragm can be selected to suit specific needs, such as resistance to:
- Corrosive Chemicals: Certain elastomers or PTFE diaphragms can resist the corrosive effects of acids, bases, and solvents.
- Temperature Extremes: Some diaphragm materials are capable of operating effectively in high-temperature environments, making them suitable for processes involving steam or hot liquids.
- Abrasion: The materials used in diaphragm valves are often resistant to abrasive fluids, ensuring long service life even in demanding environments like pulp and paper processing.
4. Precision Flow Control
Diaphragm valves allow for precise control of fluid flow. This is particularly valuable in applications where minute adjustments in flow are necessary, such as in pharmaceutical production or chemical dosing. Pneumatically actuated diaphragm valves, in particular, offer very fine control over the flow rate, enabling automated systems to operate with a high degree of accuracy.
5. Maintenance and Serviceability
The design of diaphragm valves generally involves fewer moving parts compared to other valve types, which translates into less wear and tear and lower maintenance costs. The diaphragms themselves are relatively easy to replace if they become damaged, and routine maintenance often involves simple procedures like cleaning or changing the diaphragm material.
6. Flexibility in Application
Diaphragm valves come in a wide range of sizes, materials, and configurations, allowing them to be tailored to specific applications. Whether you need to control the flow of a delicate fluid or handle a high-pressure chemical, there’s likely a diaphragm valve designed to meet your needs.
What is the Difference Between a Sanitary Ball Valve and a Diaphragm Valve?
Both diaphragm and sanitary ball valves are designed for use in sanitary applications, but they differ significantly in terms of design, operation, and suitability for specific tasks.
1. Design and Construction
- Sanitary Ball Valves: These valves have a spherical ball with a hole through it. The ball rotates to control flow; when the ball is aligned with the pipeline, fluid flows, and when it’s rotated perpendicular to the pipeline, the flow is blocked.
- Diaphragm Valves: Diaphragm valves use a flexible diaphragm that moves up and down to regulate fluid flow. The diaphragm forms a seal when pressed against the valve seat.
2. Application
- Sanitary Ball Valves: Ball valves are ideal for applications where a quick on/off control is needed, particularly in high-flow systems.
- Diaphragm Valves: Diaphragm valves are more suited to precision flow control and are often used in smaller or more specialized systems.
3. Sealing Mechanism
- Sanitary Ball Valves: The ball acts as the sealing element. While effective, this mechanism can sometimes allow for slight leaks, particularly in systems under high pressure.
- Diaphragm Valves: The diaphragm forms a tight seal, making them less prone to leaks and contamination.
4. Maintenance
- Sanitary Ball Valves: Ball valves are generally easy to maintain, though they have more components that may wear out over time.
- Diaphragm Valves: Diaphragm valves are often easier to maintain because they have fewer moving parts. The diaphragm can be replaced without disassembling the entire valve.
5. Cost
- Sanitary Ball Valves: Ball valves tend to be more expensive due to their more complex construction and materials.
- Diaphragm Valves: Diaphragm valves are typically more cost-effective, especially in applications requiring simpler flow regulation and sealing.
Conclusion
Diaphragm valves are an invaluable asset in industries where precise flow control, cleanliness, and reliability are crucial. Their simple, effective design ensures they can be used in a variety of challenging environments, from food processing to chemical plants. By providing leak-proof sealing and easy maintenance, diaphragm valves offer significant advantages over other valve types.
Although sanitary ball valves may still be preferred in high-flow applications, diaphragm valves are often the better choice when it comes to controlling small flows, ensuring hygienic operation, or handling harsh chemicals. Understanding their unique benefits and applications will help ensure that diaphragm valves are used where they perform most effectively, contributing to more efficient and safe industrial processes.
