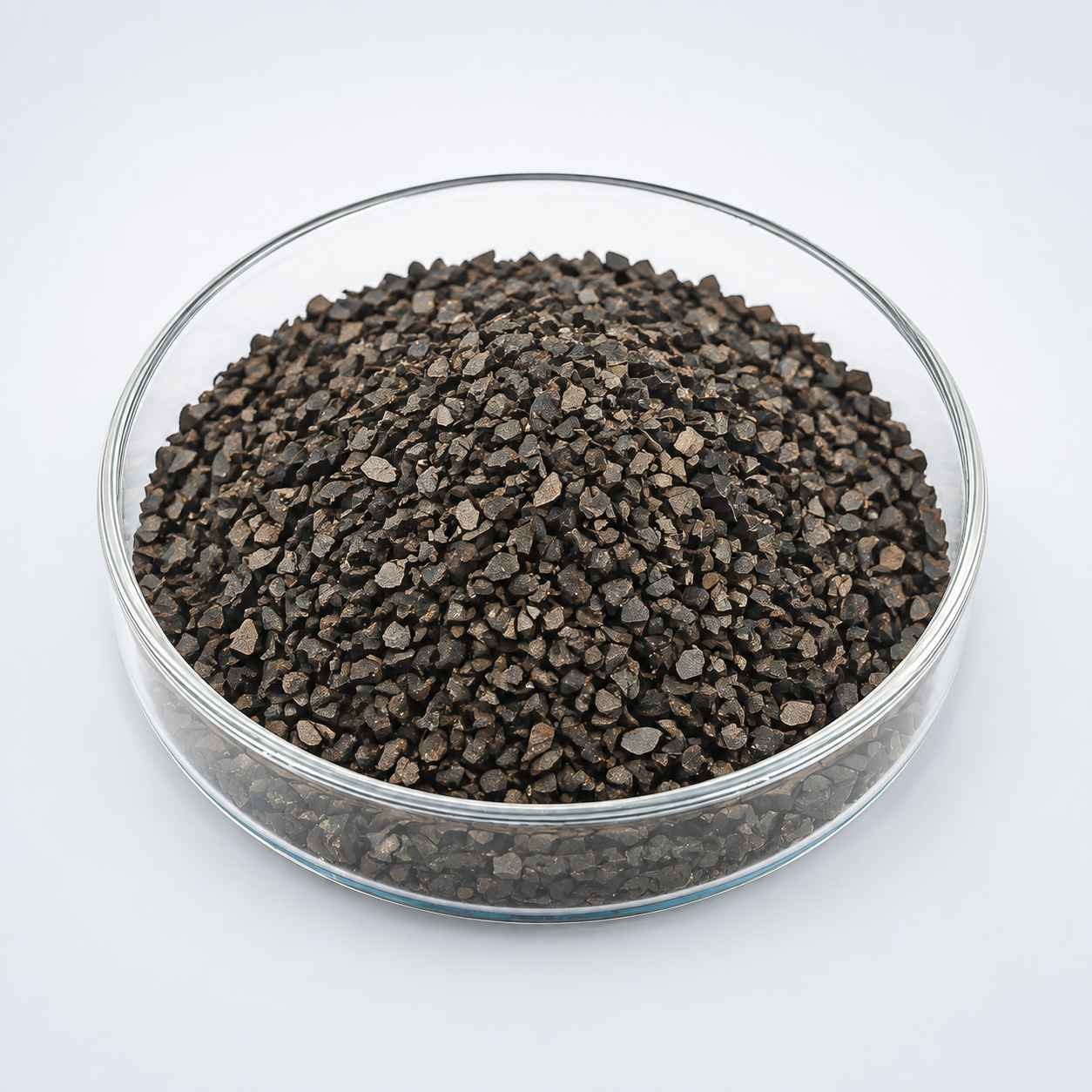

Bismuth(III) Sulfide Evaporation Materials, Bi2S3

Material: Bismuth Sulfide (Bi2S3)
Chemical Formula: Bi2S3
Catalog No.: TFM-EVM-0040

Bi2S3 source material for vacuum evaporation. State the requested composition and purity bases, form and dimensions, charge quantity, holder geometry, and separate source and film acceptance checks. Form, composition, packaging, documentation and availability require quotation and approved specification.

MSDS File

What is Bi2S3 evaporation material?

Bismuth Sulfide Evaporation Materials (Bi2S3) is a chalcogenide evaporation material used in optical, infrared, semiconductor, thermoelectric, and phase-change thin-film research. Because sulfur-, selenium-, and tellurium-containing compounds can contain volatile constituents, evaporation may be incongruent and the deposited film can deviate from the nominal source composition. Deposition temperature, source heating profile, rate control, and film-composition analysis are therefore important when stoichiometry is critical.

Explore related source materials in the Evaporation Materials catalog.

Evaporation Behavior and Process Considerations

Chalcogenides often contain constituents with different vapor pressures, so the film composition may evolve during evaporation. Lower source temperatures and controlled rates can help reduce loss of volatile components, but the optimum method depends on the specific compound. When stoichiometry is critical, deposited-film composition should be verified rather than inferred only from the source label.

Bi2S3 evaporation material: specification inputs

Use these fields to define the requested material and acceptance evidence. Values, available forms and final requirements must be agreed in the quotation and approved specification.

FieldWhat to specify
Material and composition basisBismuth(III) sulfide (Bi2S3); state the requested composition basis, purity basis and any controlled impurity limits.
Source form and fitProvide the requested form, finished dimensions or size range, charge mass, quantity, and source-holder geometry.
Equipment contextState the evaporation method, equipment model and crucible, boat or e-beam pocket dimensions; include the planned process constraints for review.
Source and film acceptanceDefine separate source-material and deposited-film composition or phase checks, with the required acceptance criteria and measurement methods.
Packaging and documentsState packaging, handling and lot-document requirements; confirm feasibility and inspection evidence in the quotation.

Typical Thin-Film Applications

  • Infrared, optical, phase-change, semiconductor, and thermoelectric thin films
  • Compound semiconductor and chalcogenide multilayer research
  • Composition-sensitive R&D where volatile-element control is important

Source Form and Ordering Considerations

For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. Requested form, composition, dimensions, packaging, documentation and feasibility must be confirmed in the quotation and approved specification.

Frequently Asked Questions

Can Bismuth Sulfide evaporate incongruently?

Yes. Sulfur, selenium, and tellurium compounds can contain constituents with different vapor pressures, so the deposited film may not exactly match the nominal source composition.

How can volatile-component loss be reduced when evaporating Bismuth Sulfide?

A controlled source temperature, stable deposition rate, and appropriate substrate temperature can help. The optimum conditions depend on the specific compound and should be confirmed by film analysis.

Is thermal or e-beam evaporation better for Bismuth Sulfide?

The better method depends on vapor pressure, decomposition temperature, source form, and desired rate. Some chalcogenides can be thermally evaporated, while others are more controllable with localized e-beam heating.

Should Bismuth Sulfide film composition be measured after deposition?

Yes when stoichiometry is important. Source composition alone does not guarantee film composition because preferential evaporation and re-evaporation can occur.

What source form can TFM supply for Bismuth Sulfide?

Depending on the material, TFM can review pellets, pieces, granules, or other compact forms suitable for the customer’s evaporation source.

What should I include in a Bismuth Sulfide RFQ?

Provide composition, purity, source form and size, quantity, evaporation method, and the film-composition or application requirements that matter to the project.

Reviews

There are no reviews yet.

Be the first to review “Bismuth(III) Sulfide Evaporation Materials, Bi2S3”

Your email address will not be published. Required fields are marked *

FAQ

  • They are high‐purity substances (e.g. metals, alloys, or compounds) used in thermal or electron‐beam evaporation processes to form thin films on substrates.

  • Typically, they’re processed into a form (often ingots, pellets, or wires) that can be efficiently vaporized. Preparation emphasizes high purity and controlled composition to ensure film quality.

  • Thermal evaporation and electron-beam (e-beam) evaporation are the two main techniques, where material is heated (or bombarded with electrons) until it vaporizes and then condenses on the substrate.

  • Thermal evaporation heats the material directly (often using a resistive heater), while e-beam evaporation uses a focused electron beam to locally heat and vaporize the source material—each method offering different control and energy efficiency.

  • Key parameters include source temperature, vacuum level, deposition rate, substrate temperature, and the distance between the source and the substrate. These factors influence film uniformity, adhesion, and microstructure.

  • Evaporation generally produces high-purity films with excellent control over thickness, and it is especially suitable for materials with relatively low melting points or high vapor pressures.

  • Challenges include issues with step coverage (due to line-of-sight deposition), shadowing effects on complex topographies, and possible re-evaporation of material from the substrate if temperature isn’t properly controlled.

  • Common evaporation materials include noble metals (e.g., gold, silver), semiconductors (e.g., silicon, germanium), metal oxides, and organic compounds—each chosen for its specific optical, electrical, or mechanical properties.

  • Selection depends on desired film properties (conductivity, optical transparency, adhesion), compatibility with the evaporation process, and the final device application (semiconductor, optical coating, etc.).

  • Optimizing substrate temperature, deposition rate, and chamber vacuum are critical for ensuring that the film adheres well and forms the intended microstructure without defects.

  • Troubleshooting may involve checking the source material’s purity, ensuring stable source temperature, verifying the vacuum level, adjusting the substrate’s position or temperature, and monitoring deposition rate fluctuations.

While evaporation tends to yield very high purity films with excellent thickness control, it is limited by its line-of-sight nature. In contrast, sputtering can deposit films more uniformly on complex surfaces and is more versatile for a broader range of materials.
