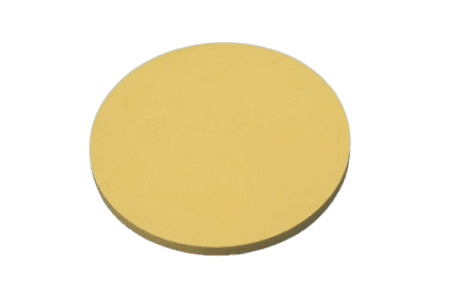

ST0306 Copper (II) Selenide Sputtering Target, CuSe

Chemical Formula: CuSe
Catalog Number: ST0306
CAS Number: 1317-41-5
Purity: 99.9%, 99.95%, 99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Copper (II) Selenide  sputtering target  come in various forms, purities, sizes, and prices. Thin Film Materials (TFM) manufactures and supplies top-quality sputtering targets at competitive prices.

MSDS File

Copper (II) Selenide Sputtering Target Description

A Copper (II) Selenide Sputtering Target is a type of ceramic material composed of copper and selenium, used in sputtering processes. This target is typically employed in thin film deposition and various specialized applications due to the unique properties of the copper-selenium combination.

CopperCopper is a chemical element with the symbol “Cu” and an atomic number of 29. The name “copper” comes from the Old English word ‘coper,’ derived from the Latin term ‘Cyprium aes,’ meaning metal from Cyprus. Copper has been used since 9000 BC and was discovered by people from the Middle East. It is located in Period 4 and Group 11 of the periodic table, belonging to the d-block elements. The relative atomic mass of copper is approximately 63.546 Daltons, with the number in parentheses indicating a margin of uncertainty.

Related Product: Copper (Cu) Sputtering Target

SeleniumSelenium is a chemical element with the symbol “Se” and an atomic number of 34. The name “selenium” is derived from the Greek word ‘selene,’ meaning moon. It was first mentioned in 1817 and observed by Jöns Jacob Berzelius and Johan Gottlieb Gahn, who also accomplished and announced its isolation. Selenium is located in Period 4 and Group 16 of the periodic table, belonging to the p-block elements. Its relative atomic mass is approximately 78.96 Daltons, with the number in parentheses indicating a margin of uncertainty.

Related Product: Selenium (Se) Sputtering Target

Copper (II) Selenide Sputtering Target Specification

Compound FormulaCuSe
AppearanceSolid
Density5.99 g/cm3
Melting Point550 °C
Available SizesDia.: 1.0″, 2.0″, 3.0″, 4.0″, 5.0″, 6.0″
Thick: 0.125″, 0.250″

Copper (II) Selenide Sputtering Target Application

The Copper (II) Selenide Sputtering Target is utilized in a variety of applications, including thin film deposition and decorative coatings. It is widely employed in the semiconductor industry, display technologies, and the manufacturing of LEDs and photovoltaic devices. Additionally, this material is significant for functional coatings, the optical information storage industry, glass coatings for automotive and architectural glass, and optical communication technologies.

Copper (II) Selenide Sputtering Target Packing

Our Copper (II) Selenide Sputtering Targets are carefully tagged and labeled on the exterior to ensure efficient identification and maintain high quality control standards. We take extensive precautions to prevent any potential damage during storage and transportation, ensuring the targets arrive in perfect condition.

Get Contact

TFM offers Copper (II) Selenide Sputtering Targets in various forms, purities, sizes, and prices. We specialize in high-purity thin film deposition materials with optimal density and minimal grain sizes, which are ideal for semiconductor, CVD, and PVD applications in display and optics. Contact Us for current pricing on sputtering targets and other deposition materials that are not listed.
