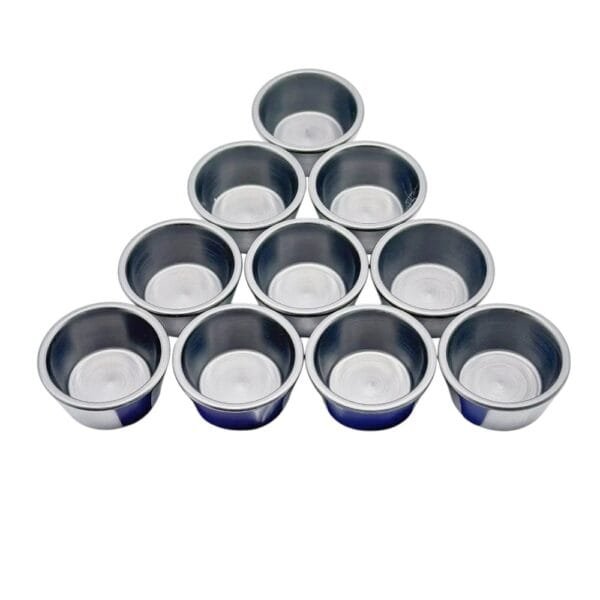

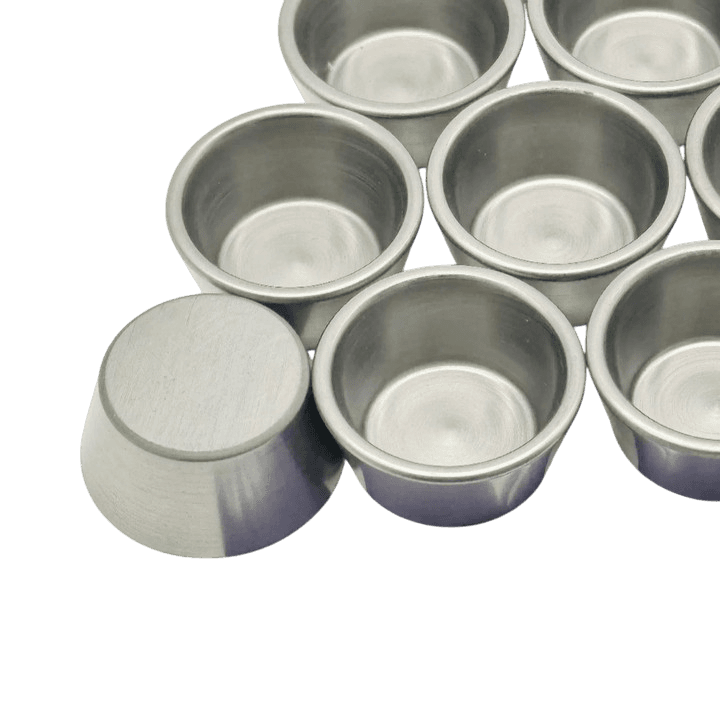

FABMATE® E-Beam Crucibles

TFM provides high-performance FABMATE® E-beam crucibles, known for their durability and superior resistance to thermal shock. These crucibles are ideal for electron beam evaporation, ensuring consistent performance and reliability in thin-film deposition processes across various industries like semiconductors and optical coatings.

FABMATE® E-Beam Crucibles

Item No.Capacities (mL)Top Diameter A (mm/inch)Height B (mm/inch)Wall Thickness C (mm/inch)Inquiry
angle=30119.1 (0.75″)4.1 (0.16″)1.0 (0.04″)
angle=151035.2 (1.38″)15.1 (0.59″)2.4 (0.09″)
angle=15422.0 (0.87″)14.3 (0.56″)2.4 (0.09″)
angle=15729.6 (1.17″)14.3 (0.56″)2.4 (0.09″)
angle=15N/A23.8 (0.93″)15.1 (0.59″)2.4 (0.09″)
angle=154051.6 (2.03″)25.9 (1.02″)2.4 (0.09″)
angle=154051.6 (2.03″)25.9 (1.02″)6.4 (0.25″)
angle=15N/A75.2 (2.96″)39.7 (1.56″)2.4 (0.09″)
angle=154050.8 (2″)27.0 (1.06″)2.4 (0.09″)
angle=154050.8 (2″)27.0 (1.06″)27.0 (1.06″)
angle=153045.1 (1.78″)23.9 (0.94″)2.4 (0.09″)
angle=153045.1 (1.78″)23.9 (0.94″)6.4 (0.25″)
angle=1515682.6 (3.25″)38.9 (1.53″)6.4 (0.25″)
angle=151537.6 (1.48″)17.0 (0.67″)3.2 (0.13″)
angle=151537.6 (1.48″)17.0 (0.67″)6.4 (0.25″)
angle=15N/A60.7 (2.39″)25.4 (1″)6.4 (0.25″)
angle=15N/A48.0 (1.89″)17.8 (0.7″)3.2 (0.13″)
angle=152547.0 (1.85″)17.3 (0.68″)2.4 (0.09″)
angle=156256.2 (2.2″)35.6 (1.4″)2.4 (0.09″)
angle=151641.7 (1.64″)24.6 (0.97″)3.2 (0.13″)
angle=15114.2 (0.56″)9.8 (0.38″)2.4 (0.09″)
angle=15214.2 (0.56″)9.8 (0.38″)2.4 (0.09″)
angle=15217.9 (0.71″)11.8 (0.47″)2.4 (0.09″)
angle=15320.4 (0.81″)13.8 (0.55″)2.4 (0.09″)
angle=15422.5 (0.89″)15.1 (0.60″)2.4 (0.09″)
angle=15728.6 (1.13″)13.2 (0.52″)2.4 (0.09″)
angle=151232.5 (1.28″)23.9 (0.94″)2.4 (0.09″)
angle=152541.5 (1.63″)23.9 (0.94″)2.4 (0.09″)
angle=153048.8 (1.92″)20.6 (0.81″)2.4 (0.09″)
angle=1510068.6 (2.7″)37.8 (1.49″)2.4 (0.09″)
angle=152547.0 (1.85″)17.3 (0.68″)3.2 (0.13″)
angle=152541.5 (1.63″)23.9 (0.94″)3.2 (0.13″)
angle=152042.5 (1.67″)19.5 (0.77″)2.4 (0.09″)
angle=151234.3 (1.35″)17.. (0.68″)3.2 (0.13″)
angle=153552.9 (2.08″)19.5 (0.77″)2.4 (0.09″)
angle=151233.9 (1.33″)19.5 (0.77″)2.4 (0.09″)
