Product Overview

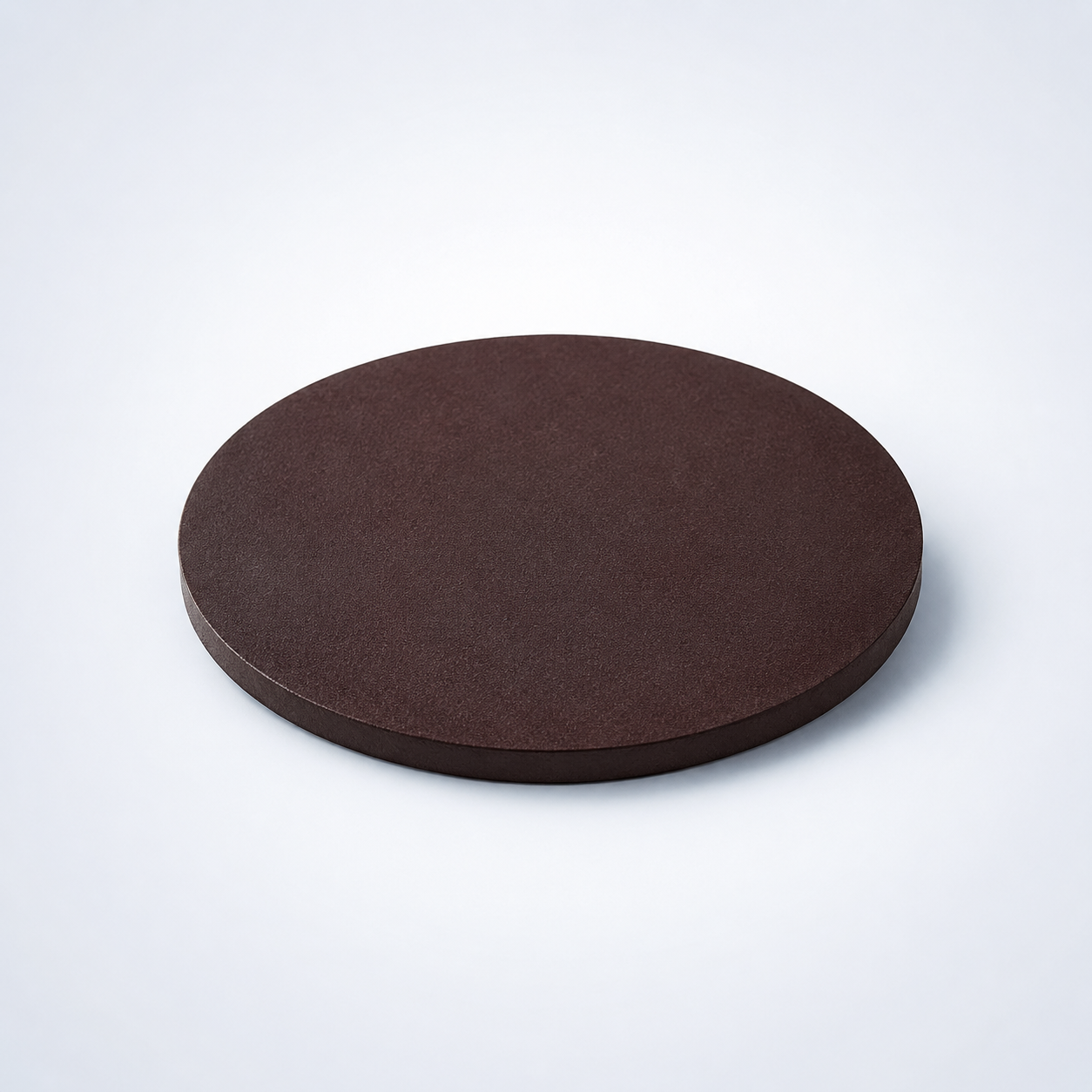

Gallium Selenide Sputtering Target (Ga2Se3/GaSe) is a chalcogenide sputtering target intended for composition-sensitive thin-film deposition. For sulfur-, selenium-, or tellurium-containing materials, the target chemistry is only the starting point: sputtering yield differences, substrate temperature, gas pressure, and volatile-component loss can shift the deposited-film composition relative to the nominal target composition.
Material and Deposition Characteristics
These targets are commonly treated as mechanically brittle and composition-sensitive sputtering materials. RF sputtering is often considered when target conductivity is limited. Power density, substrate temperature, and working pressure should be controlled conservatively, and the deposited film composition should be verified when precise sulfur, selenium, or tellurium stoichiometry is required.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Material Composition | Ga₂Se₃ or GaSe | Determines semiconductor and optical properties |
| Purity | 99.9% – 99.999% | Higher purity improves film quality and device performance |
| Density | ≥ 95% theoretical density | Ensures stable sputtering and consistent deposition |
| Diameter | 25 – 300 mm (custom) | Compatible with standard sputtering cathodes |
| Thickness | 3 – 6 mm | Influences sputtering lifetime |
| Bonding | Copper / Titanium backing plate | Enhances heat transfer and mechanical stability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Gallium Selenide (Ga₂Se₃ / GaSe) | Excellent nonlinear optical properties | Photonics and optoelectronics |
| Gallium Sulfide (GaS) | Higher thermal stability | Optical coatings and sensors |
| Gallium Telluride (GaTe) | Strong infrared response | Infrared detectors and photonic devices |
| Question | Answer |
|---|---|
| What is the difference between Ga₂Se₃ and GaSe sputtering targets? | GaSe is a layered semiconductor with strong nonlinear optical properties, while Ga₂Se₃ is a vacancy-ordered semiconductor used in specialized electronic and photonic applications. |
| Can Gallium Selenide targets be customized? | Yes, the diameter, thickness, purity, and bonding configuration can all be customized according to deposition system requirements. |
| Are these targets compatible with magnetron sputtering systems? | Yes, they are commonly used in RF and magnetron sputtering systems for semiconductor and optical thin film deposition. |
| Do the targets require backing plates? | For high-power sputtering processes, copper or titanium backing plates are recommended to improve heat dissipation and target stability. |
| What industries use Gallium Selenide thin films? | Semiconductor research labs, optoelectronics manufacturers, photonics companies, and advanced materials research institutions. |
Typical Thin-Film Applications
- Chalcogenide thin films for optical, infrared, electronic, thermoelectric, and phase-change research
- Compound semiconductor layers and advanced-material thin-film studies
- Projects where composition retention and controlled sputtering of brittle materials are important
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
What sputtering mode is commonly used for Gallium Selenide?
RF magnetron sputtering is often considered when the target conductivity is limited or when more conservative operation is preferred for brittle, composition-sensitive compounds.
Can Gallium Selenide films lose sulfur, selenium, or tellurium during deposition?
Yes. Composition drift can occur because of preferential sputtering, substrate heating, re-sputtering, and volatile-component loss. Film composition should be checked when stoichiometry is important.
Why is bonding important for a Gallium Selenide target?
Many chalcogenide targets are brittle and have modest thermal conductivity. A suitable backing plate and bonding layer can improve mechanical support and heat transfer during sputtering.
Does the target composition guarantee film stoichiometry for Ga2Se3/GaSe?
No. The target composition is the starting source composition, but the deposited film can still shift because of process variables. Film analysis should be used to confirm the final stoichiometry.
What process variables should be monitored when sputtering Gallium Selenide?
Useful variables include power density, working pressure, substrate temperature, cooling, target conditioning, and deposited-film composition. If reactive gas is used, gas ratio should also be controlled carefully.
What should I send TFM for a custom Gallium Selenide target?
Please provide composition or formula, purity, dimensions, quantity, backing or bonding details, cathode model, and any film-composition or inspection requirements relevant to your project.
