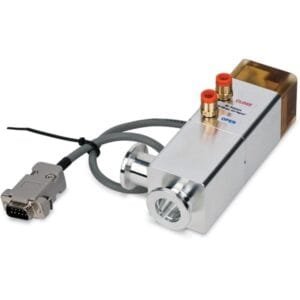

Reliable and economical general-purpose components designed for high vacuum (HV) and ultra-high vacuum (UHV) applications, ensuring cleanliness and corrosion resistance.

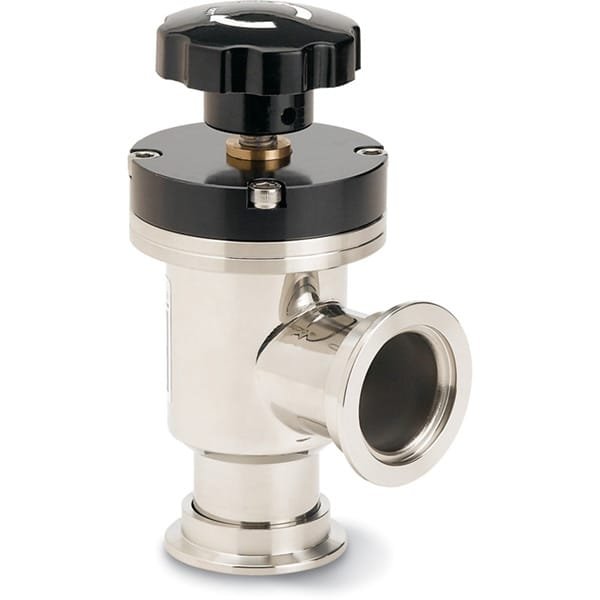

When in the open position, the edge-welded bellows and valve seat move out of the gas path, achieving high conductance. Key features include:
- Fluorocarbon O-ring seat seals for enhanced leak protection.
- Bellows-sealed shafts and bonnet seals, with an option for copper seals to withstand higher temperature bakeouts and improve ultimate vacuum performance.
- Easy maintenance, allowing for normal repairs without the need to remove the valve body from the system.
Specifications Table
| Manufacturer | TFM |
|---|---|
| Pressure | Torr 7.520 x 10-9 Torr mbar 1.000 x 10-8 mbar |
| Rates | Leak Rate 2.000 x 10-9 mbar*L/s 1.500 x 10-9 Torr*L/s |
| Temperature | Actuator 80.0 ºC 176 ºFClosed Bake 100 ºC 212 ºFOpen Bake 100 ºC 212 ºF |
| Bonnet Seal Type | Fluorocarbon (FKM) |
| Valve Body Material | 304L SS |
| Poppet Material | Fluorocarbon (FKM) |
| Shaft Seal | Welded Bellows |
Ordering Table
| Drawing | Flange Size | Bonnet Seal Type | Part Number |
| KF16 (1.18" OD) | Fluorocarbon (FKM) | SA0075MVQF |
| KF25 (1.57" OD) | Fluorocarbon (FKM) | SA0100MVQF |
| KF40 (2.16" OD) | Fluorocarbon (FKM) | SA0150MVQF |
| KF50 (2.95" OD) | Fluorocarbon (FKM) | SA0200MVQF |
