Lead(II) Titanate Evaporation Materials

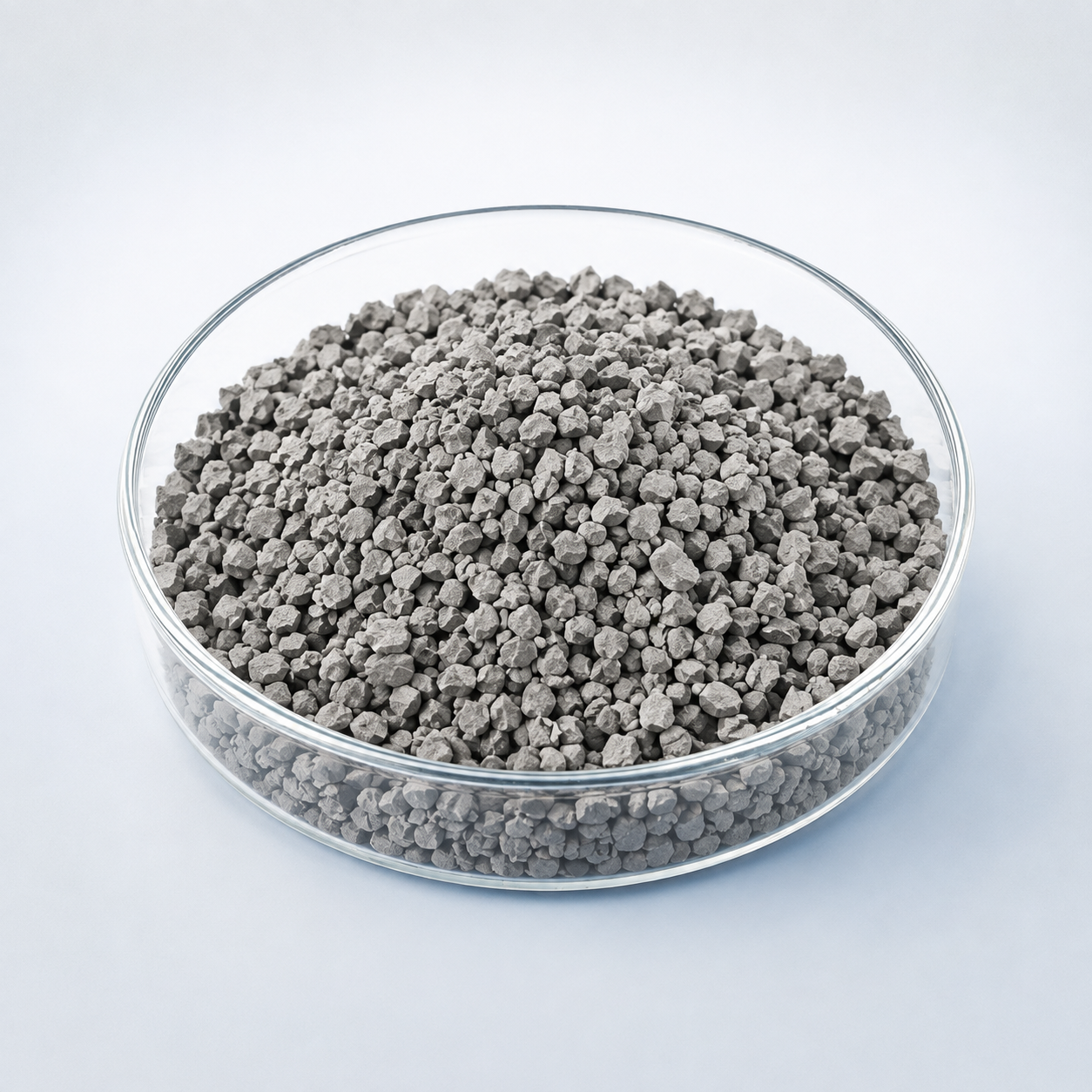

Lead(II) Titanate Evaporation Materials, PbTiO3

Material: Lead Titanate (PbTiO3)
Chemical Formula: PbTiO3
Catalog No.: TFM-EVM-0187
Purity: 99.9%
Shape: Powder/ Granule/ Custom-made

Lead Titanate (PbTiO3) evaporation material is supplied by Thin Film Materials (TFM) for vacuum evaporation and thin-film deposition. Available form, size, purity, and packaging can be customized to suit research and production requirements.

MSDS File

Product Overview

Lead Titanate Evaporation Materials (PbTiO3) is a ceramic evaporation material for depositing oxide thin films used in optical, dielectric, electronic, magnetic, protective, or research applications. Many oxides have high melting temperatures and can partially dissociate or lose oxygen during evaporation, making electron-beam evaporation a common process option. Source density, pellet or piece geometry, crucible compatibility, oxygen background, deposition rate, and substrate conditions can all affect film stoichiometry and microstructure.

Evaporation Behavior and Process Considerations

Electron-beam evaporation is frequently evaluated for ceramic oxides because many have high melting temperatures. During heating, oxygen can be lost or the source can partially dissociate, so oxygen partial pressure, substrate temperature, deposition rate, and any post-deposition anneal may need optimization. The source should be conditioned gradually to minimize cracking, spitting, and sudden outgassing.

Technical Data

ParameterTypical Value / RangeImportance
Chemical FormulaPbTiO₃Defines ferroelectric perovskite structure
Purity99.9% – 99.99%Ensures phase stability & electrical performance
FormPellets / Granules / PiecesCompatible with evaporation sources
Density≥ 95% theoreticalImproves evaporation consistency
Deposition MethodE-beam (with O₂ control)Maintains stoichiometry
Curie Temperature~490°CDefines ferroelectric operating range
MaterialKey AdvantageTypical Application
PbTiO₃High Curie temperature & strong polarizationFerroelectric thin films
PZT (Pb(Zr,Ti)O₃)Enhanced piezoelectric performanceActuators & sensors
BaTiO₃Lead-free ferroelectricCapacitors & dielectric layers
BiFeO₃Multiferroic behaviorSpintronic research
QuestionAnswer
Is oxygen control required during deposition?Yes, maintaining oxygen partial pressure is critical for proper film stoichiometry.
Can lead volatility affect film composition?Yes, process optimization or slight composition compensation may be necessary.
Is e-beam evaporation recommended?Yes, electron beam evaporation is typically preferred for controlled deposition.
Can custom pellet sizes be supplied?Yes, sizes and forms can be tailored to your equipment.
Are certificates available?Yes, chemical composition and batch traceability documentation can be provided.

Typical Thin-Film Applications

  • Optical, dielectric, transparent conductive, magnetic, protective, or functional oxide films
  • Displays, photovoltaics, sensors, semiconductors, and multilayer optical coatings where applicable
  • Research on composition, oxygen content, phase, and post-deposition treatment

Source Form and Ordering Considerations

For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.

Frequently Asked Questions

Is Lead Titanate commonly evaporated by electron beam?

Electron-beam evaporation is frequently evaluated for high-melting ceramic oxides because it can provide localized heating. The exact method depends on the oxide, source form, and required film properties.

Can Lead Titanate lose oxygen during evaporation?

Yes. Some oxides can partially dissociate or become oxygen-deficient under vacuum heating. Oxygen partial pressure, substrate temperature, deposition rate, and post-annealing can influence the final film composition.

Why can oxide evaporation sources spit or crack?

Rapid heating, trapped gas, porosity, and thermal gradients can cause cracking or particle ejection. A gradual conditioning ramp and stable source geometry help reduce these effects.

Does the deposited film always match the composition of PbTiO3?

Not always. Preferential evaporation, oxygen loss, decomposition, and substrate conditions can shift film chemistry or phase relative to the source material.

What source form is suitable for Lead Titanate?

Pellets, tablets, pieces, or granules may be used depending on the e-beam pocket or crucible. A dense and mechanically stable source form is usually easier to condition reproducibly.

What information should I provide for a Lead Titanate quotation?

Provide formula or composition, purity, source form and size, quantity, evaporation method, source-holder dimensions, and any film-composition or documentation requirements.
