Product Overview

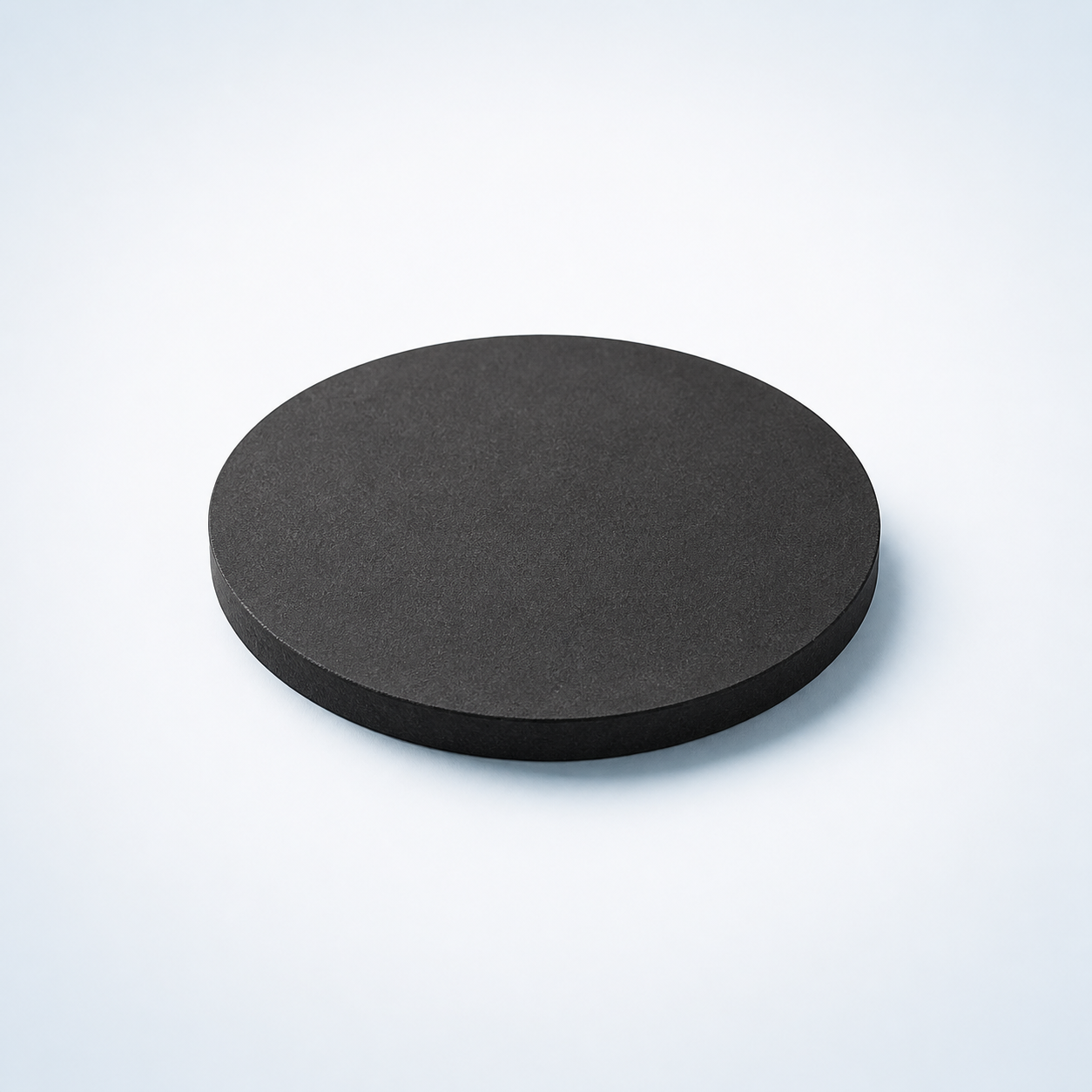

Manganese-Iron Oxide Sputtering Target (MnFe2O4) is a ceramic sputtering target used to deposit composition-specific oxide thin films. Compared with metallic targets, oxide targets are typically more sensitive to density, porosity, brittleness, thermal shock, and bonding design. In practice, target microstructure, thickness, cooling conditions, and the chosen sputtering mode can all affect arc stability, particle generation, and deposited-film performance.
Material and Deposition Characteristics
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets, while sufficiently conductive formulations may allow alternative power modes in some systems. Target density and microstructural uniformity matter because pores, cracks, and local inhomogeneities can contribute to unstable plasma, particles, or target damage. For brittle ceramics, bonded assemblies and gradual power ramping are often worth evaluating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | Higher purity improves thin film performance |
| Composition | Stoichiometric MnFe₂O₄ | Ensures correct magnetic properties |
| Density | ≥ 95% theoretical density | Provides stable sputtering performance |
| Diameter | 25 – 300 mm (custom) | Compatible with various sputtering systems |
| Thickness | 3 – 6 mm | Influences target life and deposition rate |
| Bonding | Copper / Stainless Steel backing available | Improves thermal stability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Manganese Iron Oxide (MnFe₂O₄) | Ferrimagnetic spinel with tunable magnetic properties | Magnetic thin films and sensors |
| Cobalt Ferrite (CoFe₂O₄) | Strong magnetic anisotropy and hardness | Magnetic recording and spintronics |
| Nickel Ferrite (NiFe₂O₄) | Good magnetic and electrical properties | Microwave devices and magnetic films |
| Iron Oxide (Fe₃O₄) | High magnetization | Magnetic storage and biomedical research |
| Question | Answer |
|---|---|
| Can the MnFe₂O₄ sputtering target be customized? | Yes, diameter, thickness, density, and bonding options can be customized to match different sputtering systems. |
| Which sputtering method is typically used for MnFe₂O₄ targets? | RF magnetron sputtering is commonly used because MnFe₂O₄ is a ceramic material with relatively high electrical resistivity. |
| What substrates are compatible with MnFe₂O₄ thin films? | Common substrates include silicon, sapphire, MgO, and other oxide substrates depending on the application. |
| Are MnFe₂O₄ films magnetic? | Yes, MnFe₂O₄ is a ferrimagnetic material and its thin films can exhibit tunable magnetic properties depending on deposition conditions. |
| Which industries commonly use this material? | Semiconductor research laboratories, magnetic device manufacturers, microwave technology companies, and materials science institutes. |
Typical Thin-Film Applications
- Dielectric, insulating, optical, magnetic, protective, or functional ceramic thin films
- Semiconductor, sensor, photonic, and multilayer coating research
- Applications where oxide composition, density, and process stability affect film performance
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
Is Manganese-Iron Oxide better suited to RF or DC sputtering?
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets. If a specific formulation is sufficiently conductive, other modes may also be possible, but the equipment and target properties should be confirmed.
Why is density important for a Manganese-Iron Oxide target?
Density and microstructural uniformity affect erosion stability, thermal behavior, and particle risk. Pores, cracks, or local density variations can contribute to unstable sputtering and target damage.
Should a Manganese-Iron Oxide target be bonded to a backing plate?
Bonding is often useful for brittle oxide targets because it can improve mechanical support and heat transfer. The backing material and bonding method should be chosen according to target size, thickness, and operating conditions.
Will the deposited film always have the same composition as MnFe2O4?
Not always. Film composition can be affected by preferential sputtering, reactive gas, substrate temperature, re-sputtering, and chamber conditions. Composition-sensitive films should be verified after deposition.
How should power be ramped on a brittle Manganese-Iron Oxide target?
A conservative power ramp and stable cooling are generally advisable. The exact operating procedure should follow the target size, bonding condition, cathode design, and supplier recommendations rather than a universal wattage.
What information should I provide when ordering Manganese-Iron Oxide?
Provide formula or composition, purity, dimensions, quantity, backing and bonding requirements, cathode model or drawing, and any density, tolerance, or inspection requirements.
