Introduction

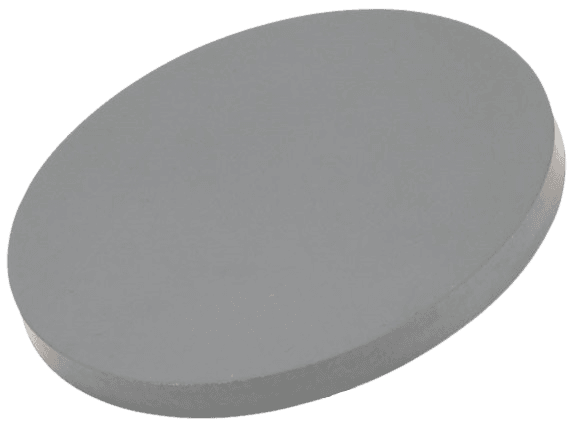

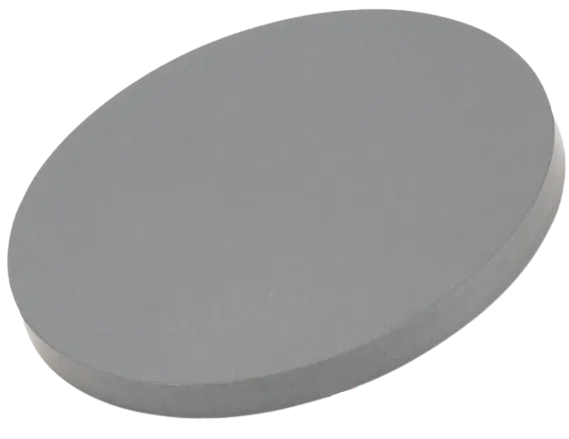

Manganese Sulfide Sputtering Targets (MnS) are specialized ceramic targets used in physical vapor deposition (PVD) processes to produce manganese sulfide thin films for semiconductor, optical, and materials research applications. MnS belongs to the family of transition metal chalcogenides and exhibits unique electronic, optical, and magnetic properties that make it valuable for advanced thin film technologies.
With its stable chemical structure and tunable electrical characteristics, MnS thin films are often studied for semiconductor devices, optoelectronic components, and functional coatings. High-purity Manganese Sulfide sputtering targets enable controlled film composition, stable sputtering behavior, and uniform thin film growth, which are essential for both industrial deposition processes and research environments.
Detailed Description
Manganese Sulfide Sputtering Targets are typically produced from high-purity manganese and sulfur compounds that are carefully synthesized and processed to achieve the desired stoichiometric composition. MnS generally crystallizes in cubic (rock salt) or hexagonal structures, and its semiconductor properties depend strongly on crystal phase, purity, and microstructure.
The manufacturing process often involves high-temperature solid-state synthesis followed by hot pressing or vacuum sintering to achieve dense ceramic targets with low porosity and uniform grain structure. High density is critical for maintaining stable sputtering rates and minimizing particle generation during deposition, which is particularly important in semiconductor and precision optical applications.
MnS thin films deposited by sputtering exhibit interesting optical absorption characteristics, semiconducting behavior, and magnetic properties, making them useful for research into spintronic materials, photodetectors, and novel electronic devices. Because manganese sulfide is also chemically stable in many environments, it can serve as a functional layer in coatings requiring moderate corrosion resistance or optical functionality.
These sputtering targets are available in various diameters and thicknesses, compatible with common magnetron sputtering systems. For higher power deposition processes, targets may be supplied with bonded backing plates, typically copper or titanium, which improve heat dissipation and mechanical stability during sputtering.
Applications
Manganese Sulfide sputtering targets are used in several advanced thin film applications:
Semiconductor Research – Thin films for experimental electronic and spintronic devices.
Optoelectronic Devices – Semiconductor layers used in photodetectors and optical sensors.
Magnetic Thin Films – Materials research involving magnetic and spin-dependent properties.
Functional Coatings – Thin films with specialized optical or electronic characteristics.
Materials Science Research – Investigation of transition metal chalcogenide thin films.
Advanced Electronics – Experimental layers in emerging electronic and photonic systems.
Technical Parameters
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Chemical Formula | MnS | Defines material composition and semiconductor behavior |
| Purity | 99.9% – 99.99% | Higher purity improves film performance and stability |
| Density | ≥ 95% theoretical density | Ensures uniform sputtering and stable deposition |
| Diameter | 25 – 300 mm (custom) | Compatible with most sputtering cathodes |
| Thickness | 3 – 6 mm | Influences sputtering lifetime and deposition rate |
| Bonding | Copper / Titanium backing plate | Improves thermal management during sputtering |
Comparison with Related Materials
| Material | Key Advantage | Typical Application |
|---|---|---|
| Manganese Sulfide (MnS) | Magnetic and semiconducting properties | Spintronic and optoelectronic research |
| Zinc Sulfide (ZnS) | Excellent optical transparency | Infrared optics and optical coatings |
| Cadmium Sulfide (CdS) | Direct bandgap semiconductor | Photovoltaic and optoelectronic devices |
FAQ
| Question | Answer |
|---|---|
| Can MnS sputtering targets be customized? | Yes, the purity, diameter, thickness, and bonding configuration can be tailored to match specific sputtering systems. |
| Which sputtering methods are suitable for MnS targets? | MnS targets are typically used in RF magnetron sputtering systems for stable deposition of compound semiconductor films. |
| Are backing plates required? | Backing plates are recommended for larger targets or high-power sputtering processes to improve heat transfer and structural stability. |
| What industries use MnS thin films? | MnS thin films are mainly used in semiconductor research laboratories, optoelectronics development, and materials science studies. |
| What vacuum systems are typically used with MnS targets? | MnS sputtering targets are commonly used in high-vacuum PVD systems including magnetron sputtering and RF sputtering equipment. |
Packaging
Our Manganese Sulfide Sputtering Targets are meticulously tagged and labeled externally to ensure efficient identification and maintain high standards of quality control. Each target is carefully packaged using protective foam, vacuum sealing, and export-grade cartons or wooden crates to prevent contamination or mechanical damage during storage and transportation.
Conclusion
Manganese Sulfide Sputtering Targets provide a reliable material solution for depositing semiconductor and functional thin films with unique optical, magnetic, and electronic properties. With high purity, controlled stoichiometry, and customizable target configurations, MnS targets support consistent thin film deposition for research and industrial applications.
For detailed specifications and a quotation, please contact us at sales@thinfilmmaterials.com.
