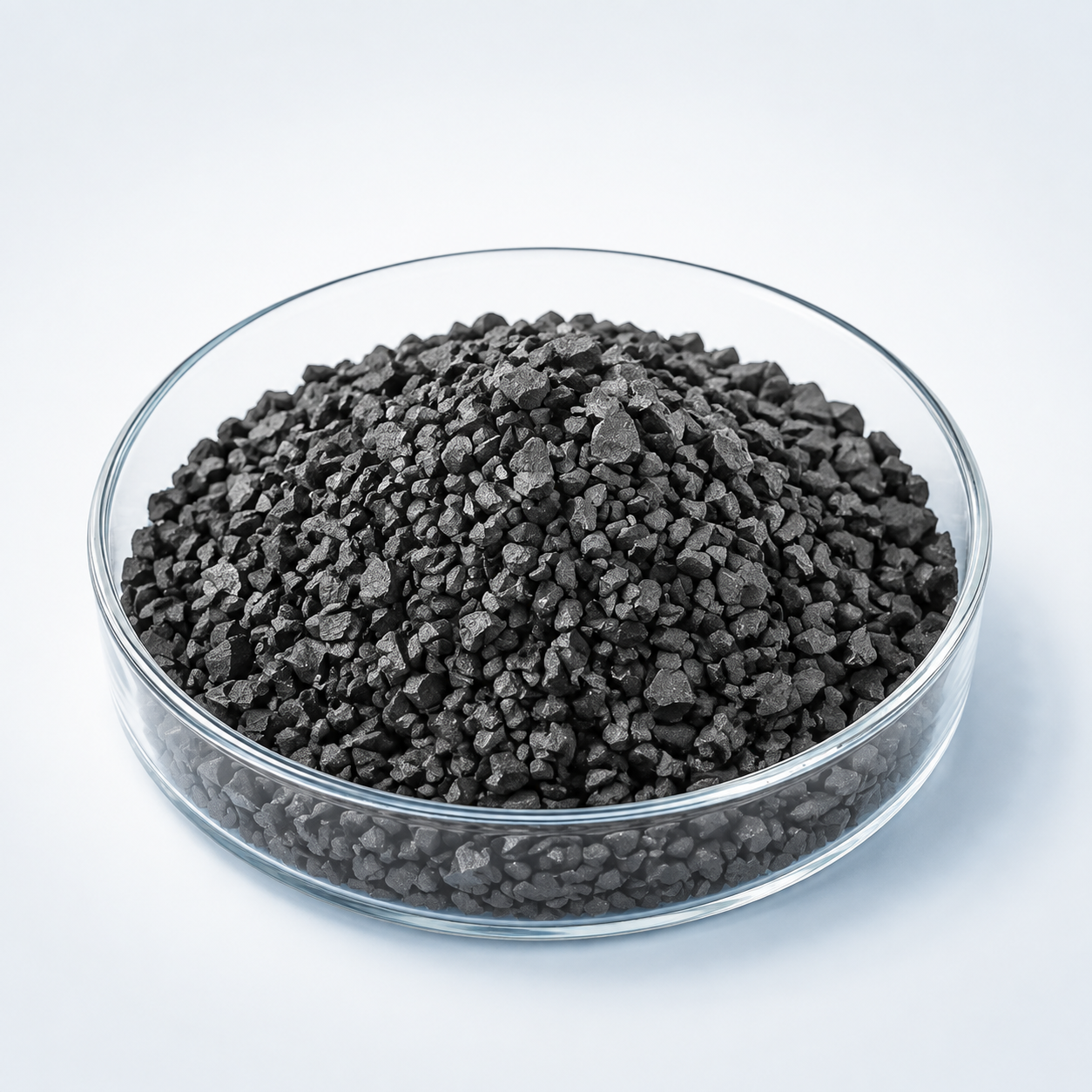

Silicon Carbide Evaporation Materials, SiC

Material: Silicon Carbide (SiC)
Chemical Formula: SiC
Catalog No.: TFM-EVM-0265
Purity: 99.5%
Shape: Powder/ Granule/ Custom-made

Silicon Carbide (SiC) evaporation material is supplied by Thin Film Materials (TFM) for vacuum evaporation and thin-film deposition. Available form, size, purity, and packaging can be customized to suit research and production requirements.

Product Overview

Silicon Carbide Evaporation Materials (SiC) is a high-melting compound evaporation source for specialized thin-film deposition and materials research. Carbides, borides, nitrides, silicides, and related compounds may require electron-beam heating or other high-energy evaporation methods, and some compounds can decompose or change composition before a useful vapor pressure is reached. The evaporation route should therefore be qualified against the required film chemistry rather than assumed to be congruent.

Evaporation Behavior and Process Considerations

These compounds commonly require high-energy evaporation methods such as electron-beam heating. However, high source temperature can also promote decomposition, dissociation, or preferential evaporation. Process qualification should therefore include source-behavior observation and film-composition verification before scaling to long runs.

Technical Data

ParameterTypical Value / RangeImportance
Purity99.5% – 99.99%Ensures film quality and minimizes contamination
FormGranules / Pellets / CustomCompatible with evaporation systems
Density≥ 90% theoreticalImproves evaporation stability
Sublimation Temp> 2700°CSuitable for high-temperature deposition
Particle Size1 – 6 mm (typical)Affects evaporation rate and uniformity
Crystal Structureα-SiC / β-SiCInfluences film properties
MaterialKey AdvantageTypical Application
Silicon Carbide (SiC)High thermal conductivity, extreme hardnessHigh-temp electronics, protective coatings
Silicon (Si)Easier deposition, lower costSemiconductor devices
Silicon Nitride (Si₃N₄)Excellent insulation propertiesDielectric layers, protective films
QuestionAnswer
Can SiC evaporation materials be customized?Yes, size, shape, and purity can be tailored to specific evaporation equipment.
What deposition method is recommended for SiC?Electron beam evaporation is commonly used due to the high sublimation temperature.
Is SiC suitable for semiconductor applications?Yes, especially in high-power and high-temperature electronic devices.
How should SiC materials be stored?Store in a clean, dry environment to avoid contamination.
What are the advantages of SiC over pure silicon?SiC offers higher thermal stability, hardness, and resistance to harsh environments.

Typical Thin-Film Applications

  • Hard, refractory, electronic, protective, and specialty compound thin films
  • High-temperature or advanced-material coating research
  • R&D evaluating decomposition behavior and film stoichiometry under e-beam evaporation

Source Form and Ordering Considerations

For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.

Frequently Asked Questions

Can Silicon Carbide be evaporated by electron beam?

Electron-beam heating is often evaluated for high-melting compounds because it can provide localized high temperature. However, the compound may decompose before evaporating congruently.

Will Silicon Carbide maintain its stoichiometry during evaporation?

Not necessarily. Carbides, borides, nitrides, silicides, and related compounds can dissociate or evaporate preferentially, so film composition should be verified.

Why is source conditioning important for Silicon Carbide?

Gradual conditioning reduces thermal shock, outgassing, and sudden particle ejection while allowing the operator to observe whether the compound remains stable under heating.

What source holder should be used for Silicon Carbide?

The holder must tolerate the required temperature and avoid chemical reaction with the charge. E-beam hearth or compatible crucible selection should be reviewed for the specific material.

Is a pellet or dense piece preferable for Silicon Carbide?

A dense, mechanically stable charge is generally easier to load and condition than loose powder. The ideal form depends on hearth size and the required evaporation rate.

What information should I provide for a Silicon Carbide evaporation-material quotation?

Provide formula, purity, source form, piece or pellet size, quantity, evaporation method, source-holder details, and the intended film composition or application.

Reviews

There are no reviews yet.

Be the first to review “Silicon Carbide Evaporation Materials, SiC”

Your email address will not be published. Required fields are marked *

FAQ

  • They are high‐purity substances (e.g. metals, alloys, or compounds) used in thermal or electron‐beam evaporation processes to form thin films on substrates.

  • Typically, they’re processed into a form (often ingots, pellets, or wires) that can be efficiently vaporized. Preparation emphasizes high purity and controlled composition to ensure film quality.

  • Thermal evaporation and electron-beam (e-beam) evaporation are the two main techniques, where material is heated (or bombarded with electrons) until it vaporizes and then condenses on the substrate.

  • Thermal evaporation heats the material directly (often using a resistive heater), while e-beam evaporation uses a focused electron beam to locally heat and vaporize the source material—each method offering different control and energy efficiency.

  • Key parameters include source temperature, vacuum level, deposition rate, substrate temperature, and the distance between the source and the substrate. These factors influence film uniformity, adhesion, and microstructure.

  • Evaporation generally produces high-purity films with excellent control over thickness, and it is especially suitable for materials with relatively low melting points or high vapor pressures.

  • Challenges include issues with step coverage (due to line-of-sight deposition), shadowing effects on complex topographies, and possible re-evaporation of material from the substrate if temperature isn’t properly controlled.

  • Common evaporation materials include noble metals (e.g., gold, silver), semiconductors (e.g., silicon, germanium), metal oxides, and organic compounds—each chosen for its specific optical, electrical, or mechanical properties.

  • Selection depends on desired film properties (conductivity, optical transparency, adhesion), compatibility with the evaporation process, and the final device application (semiconductor, optical coating, etc.).

  • Optimizing substrate temperature, deposition rate, and chamber vacuum are critical for ensuring that the film adheres well and forms the intended microstructure without defects.

  • Troubleshooting may involve checking the source material’s purity, ensuring stable source temperature, verifying the vacuum level, adjusting the substrate’s position or temperature, and monitoring deposition rate fluctuations.

While evaporation tends to yield very high purity films with excellent thickness control, it is limited by its line-of-sight nature. In contrast, sputtering can deposit films more uniformly on complex surfaces and is more versatile for a broader range of materials.
