Product Overview

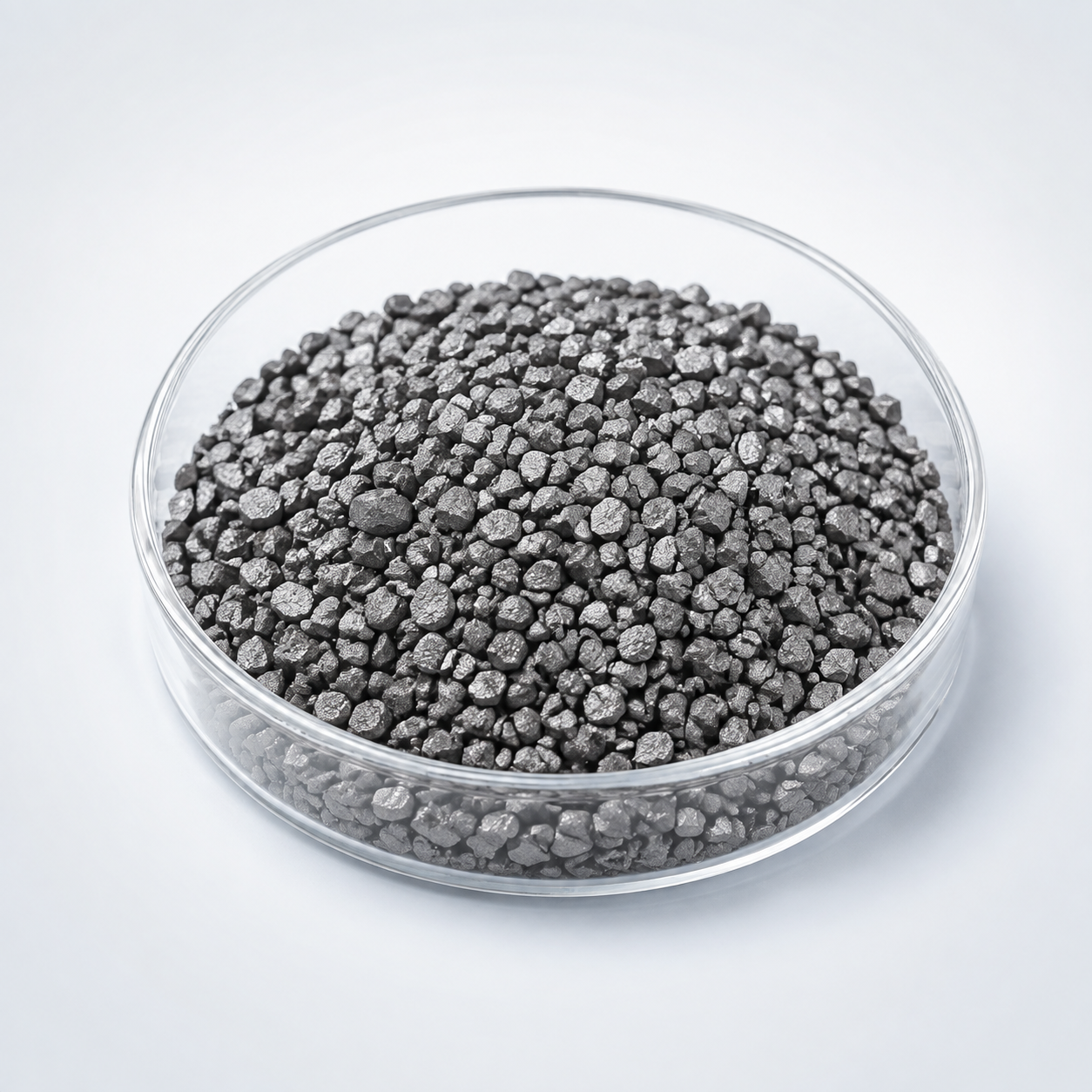

Strontium Evaporation Materials (Sr) is an elemental evaporation material used to deposit metallic thin films by vacuum evaporation. Depending on vapor pressure, melting behavior, source geometry, and the available evaporator, the material may be processed by resistance heating, electron-beam evaporation, or another suitable high-vacuum source. For repeatable deposition, purity, source form, handling cleanliness, and compatibility with the boat, basket, crucible, or hearth are important procurement variables.
Evaporation Behavior and Process Considerations
The choice between resistance heating and electron-beam evaporation depends on vapor pressure, melting temperature, source mass, required rate, and the available boat or crucible. Low-to-moderate melting metals may be compatible with resistance heating, while higher-temperature materials can favor e-beam evaporation. Gradual preheating is useful for removing adsorbed gases and establishing a stable evaporation rate before deposition.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Chemical Symbol | Sr | Defines alkaline earth metal behavior |
| Purity | 99.5% – 99.9%+ | Higher purity improves film consistency |
| Form | Pieces / Granules / Rods | Matches evaporation source configuration |
| Melting Point | ~777 °C | Suitable for thermal evaporation |
| Density | ~2.64 g/cm³ | Relevant for deposition rate calculation |
| Storage | Inert or vacuum sealed | Prevents oxidation and moisture reaction |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Strontium (Sr) | Forms stable perovskite oxides | Oxide electronics & superconductors |
| Calcium (Ca) | Lighter, lower melting point | Reactive thin films |
| Barium (Ba) | Larger ionic radius | Ferroelectric and dielectric materials |
| Magnesium (Mg) | High vapor pressure | Optical coatings |
| Question | Answer |
|---|---|
| Is strontium suitable for thermal evaporation? | Yes, due to its moderate melting point, thermal evaporation is commonly used. |
| Does it require special handling? | Yes, it must be protected from air and moisture to prevent oxidation. |
| Can it be used in co-evaporation systems? | Yes, it is frequently combined with transition metals to form complex oxides. |
| Is reactive oxygen control necessary? | Yes, oxygen partial pressure control is critical during oxide film growth. |
| Do you provide traceability documents? | Yes, certificates and batch traceability are available upon request. |
Typical Thin-Film Applications
- Strontium metallic coatings for electronic, optical, conductive, reflective, catalytic, or contact-layer applications
- Semiconductor and laboratory PVD research
- Multilayer stacks and co-evaporation processes requiring a pure elemental source
Source Form and Ordering Considerations
For quotation, provide material, purity, source form, particle or piece size, quantity, evaporation method, and any boat, basket, crucible, or e-beam hearth constraints. If the material will be used for a specific coating stack, sharing the intended film thickness or deposition application can help with source-form selection and packaging recommendations.
Frequently Asked Questions
Can Strontium be used for thermal evaporation?
It depends on melting point, vapor pressure, charge size, and the source hardware. Many elemental metals can be resistance-heated, while higher-temperature materials are often more convenient to evaporate with an electron beam.
How do I choose between pellets, pieces, and granules for Strontium?
Choose a form that loads securely into the boat, crucible, basket, or e-beam pocket and provides stable heating. Smaller pieces can improve packing, while larger pieces may reduce handling and dust.
Why should Strontium be preheated before opening the shutter?
Preheating removes adsorbed gases and stabilizes the evaporation flux. This can reduce pressure spikes, spitting, and contamination during the actual film deposition.
Can the crucible material affect Strontium evaporation?
Yes. At elevated temperature, the charge can react with, dissolve, wet, or contaminate some source materials. Crucible and boat compatibility should be checked for the actual evaporation temperature.
Does source purity directly affect film purity?
Source purity is one of the main contributors to film contamination, although chamber cleanliness, crucible condition, substrate preparation, and background pressure also affect the final film.
What information should I send TFM for Strontium evaporation material?
Please provide purity, preferred source form and size, quantity, evaporation method, source-holder details, and any packaging, inspection, or documentation requirements.
