Product Overview
Sulfur Evaporation materials is a composition-specific sputtering target for thin-film deposition and PVD process development. The practical specification normally includes chemistry, purity, dimensions, density, target configuration, and any bonding or backing requirement needed by the sputtering cathode.
Material and Deposition Characteristics
Power mode and process conditions should be selected according to the target conductivity, thermal behavior, and the requirements of the cathode system. For less common materials, conservative initial power density and film-composition verification are good practice.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.999% – 99.9999% (5N–6N) | Ensures clean film growth and stable optical properties |

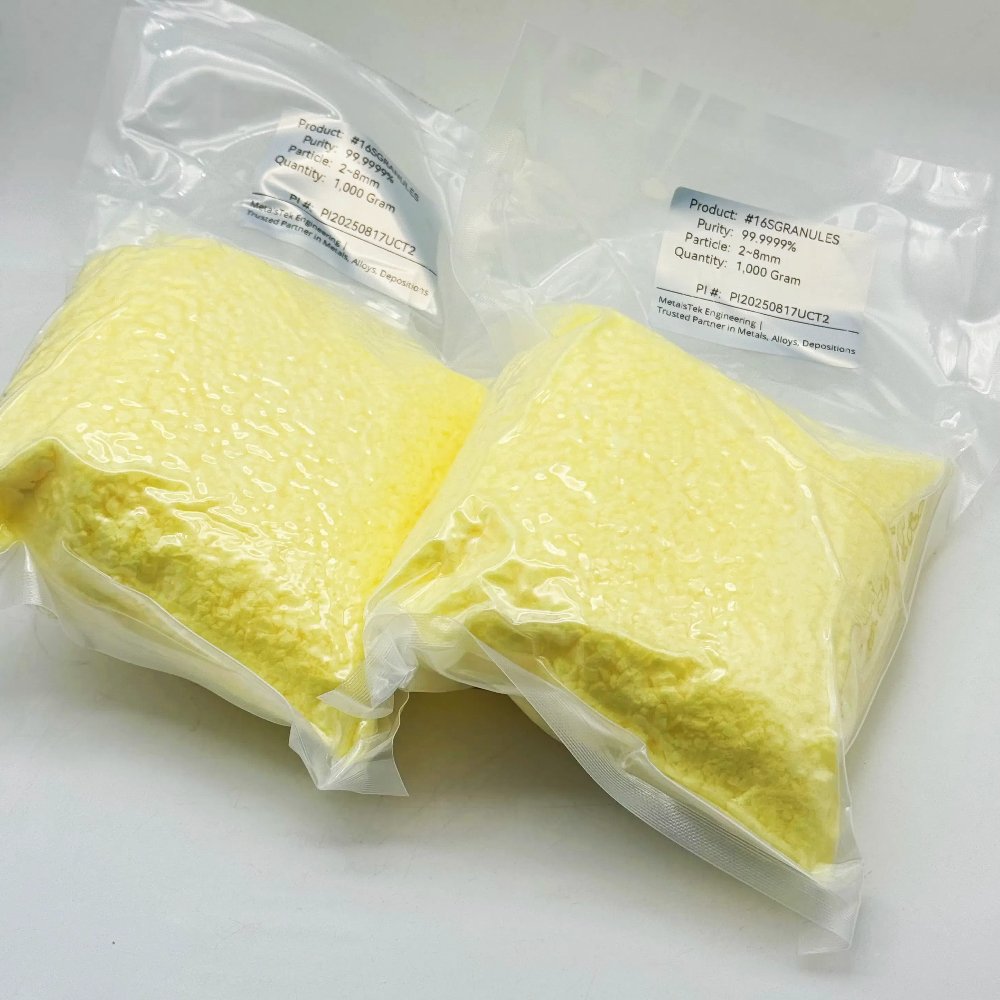

| Form | Pellets / Pieces / Granules | Suitable for different crucible and evaporation setups |
| Melting Point | ~115 °C | Allows easy thermal evaporation |
| Vapor Pressure | High at moderate temperatures | Enables efficient deposition at low power |
| Packaging | Vacuum-sealed under inert gas | Prevents oxidation and moisture absorption |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Sulfur (S) | Forms high-purity sulfide compounds | Photovoltaics, semiconductor coatings |
| Selenium (Se) | Excellent photoelectric properties | Solar and optoelectronic coatings |
| Tellurium (Te) | High refractive index | Thermoelectric and optical films |
| Question | Answer |
|---|---|
| Can the sulfur evaporation material be used for metal sulfide deposition? | Yes, it is commonly used with metals such as Cd, Zn, In, and Mo to form high-quality sulfide films. |
| What purity levels are available? | Standard purities range from 5N (99.999%) to 6N (99.9999%), depending on application requirements. |
| What are the recommended evaporation methods? | Both thermal and electron beam evaporation are suitable, though thermal evaporation is often preferred due to the low melting point. |
| How should sulfur be stored? | Store in a cool, dry, and inert environment to avoid oxidation or contamination. |
| How is it packaged for shipment? | Typically vacuum-sealed in inert gas and protected with moisture-proof foil for international transport. |
Typical Thin-Film Applications
- Thin-film research and materials-development projects requiring a composition-specific sputtering source
- Semiconductor, optical, energy, electronic, or laboratory coatings depending on the material system
- Custom R&D work where target composition, purity, and geometry need to be specified together
Target Configuration and Ordering Considerations
For quotation and manufacturability review, provide target size, thickness, purity or alloy composition, quantity, and the sputtering gun or cathode model if known. If a bonded assembly is required, include backing-plate material, bonding preference, and any dimensional tolerances, surface-finish needs, or inspection-document requirements. TFM can also review customer drawings or old-target samples for replacement builds.
Frequently Asked Questions
What is the main reason to use a Sulfur Evaporation materials sputtering target?
It provides a composition-specific source for thin-film deposition when the target material itself is important to the desired film chemistry or process.
How should the sputtering mode for Sulfur Evaporation materials be selected?
The power mode should be chosen according to target conductivity, thermal behavior, and equipment capability. Less-conductive materials are commonly evaluated with RF power.
Why are density and microstructure important for Sulfur Evaporation materials targets?
These factors can influence erosion stability, thermal behavior, particle generation, and the risk of cracking or local hot spots.
Can Sulfur Evaporation materials be supplied with a backing plate?
Yes. If the material is brittle or the cathode requires it, a bonded configuration can be reviewed according to target size, thickness, cooling, and power.
Does target composition always equal film composition?
No. Film chemistry may differ because of sputtering yields, process conditions, substrate temperature, re-sputtering, and chamber history. Film verification is recommended when composition matters.
What should I provide to request a quotation for Sulfur Evaporation materials?
Please provide the composition, purity, dimensions, quantity, target configuration, cathode details, and any drawing or inspection requirements.
