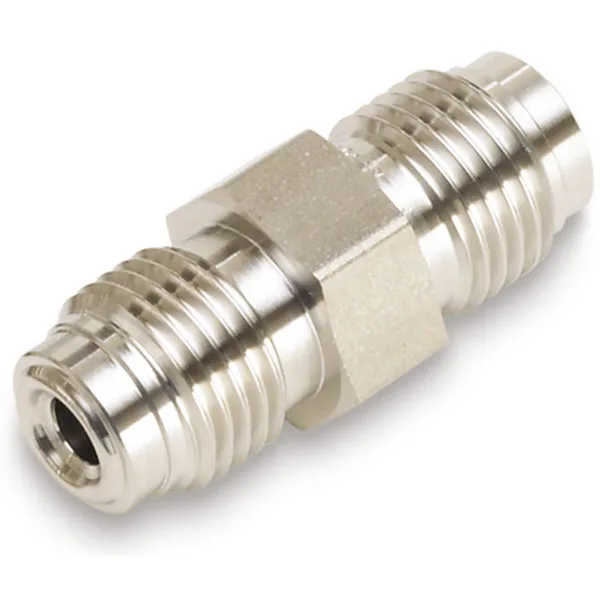

Swagelok VCR Male Unions: High-Integrity Face-Seal Solutions for Low-Pressure and UHV Applications

Swagelok VCR Male Unions from TFM are precision-engineered fittings designed to connect two female VCR components with absolute sealing integrity. Utilizing Swagelok’s signature metal gasket face-seal technology, these unions are ideal for low-pressure gas systems and ultra-high vacuum (UHV) environments where leak-tight performance, chemical compatibility, and thermal stability are essential.

Constructed from 316L stainless steel, Swagelok VCR Male Unions accommodate either stainless steel or copper gaskets, providing optimal versatility across a broad range of analytical, semiconductor, and scientific gas handling systems.

Key Features of Swagelok VCR Male Unions:

  • Metal Gasket Face-Seal Design
    Delivers leak-tight, elastomer-free sealing between male VCR ends and female face-seal fittings, ensuring gas purity and long-term reliability.

  • UHV Compatibility
    Rated for vacuum levels down to 10⁻⁹ Torr, these fittings meet the demands of mass spectrometry, helium leak testing, and cleanroom-grade gas routing.

  • High-Temperature Resistance

    • Operates up to 538°C with stainless steel gaskets, enabling bakeout-ready performance in vacuum chambers and hot gas environments.

    • With copper gaskets, supports stable sealing up to 204°C, suitable for most industrial and laboratory gas applications.

  • Straight Male-to-Male Configuration
    Provides a compact connection between two female VCR fittings in inline configurations, with minimal dead volume and robust mechanical strength.

  • Material and Build Quality
    Machined from 316L stainless steel, offering excellent corrosion resistance, high-purity compatibility, and repeatable sealing for demanding installations.

Common Applications:

  • Connecting gas lines from lecture bottles or pressure regulators

  • Inline sealing in UHV manifolds and analytical instruments

  • Helium leak-check and purge gas setups in research environments

  • Direct male-to-female component transitions in clean gas panels

  • System upgrades requiring compact, repeatable metal seal fittings

TFM complements these Swagelok VCR Male Unions with a full range of VCR-compatible components, including female unions, tee and elbow connectors, weld adapters, gaskets, and nut assemblies, helping you build or maintain world-class vacuum and gas delivery systems.

Ordering Table

Swagelok VCR Male Unions

Reference Material Tube OD 1 Tube OD 2 Part Number
VCR Double Male Union Stainless Steel 1/8" 1/8" 2MVCR-2MVCR
VCR Double Male Union Stainless Steel 1/4" 1/4" 4MVCR-4MVCR
VCR Double Male Union Stainless Steel 1/2" 1/2" 8MVCR-8MVCR
VCR Double Male Reducing Union Stainless Steel 1/8" 1/4" 2MVCR-4MVCR
VCR Double Male Reducing Union Stainless Steel 1/4" 1/2" 4MVCR-8MVCR
VCR Male Bulkhead Union Stainless Steel 1/4" 1/4" 4MVCR-BU
VCR Male Bulkhead Union Stainless Steel 1/2" 1/2" 8MVCR-BU
