Product Overview

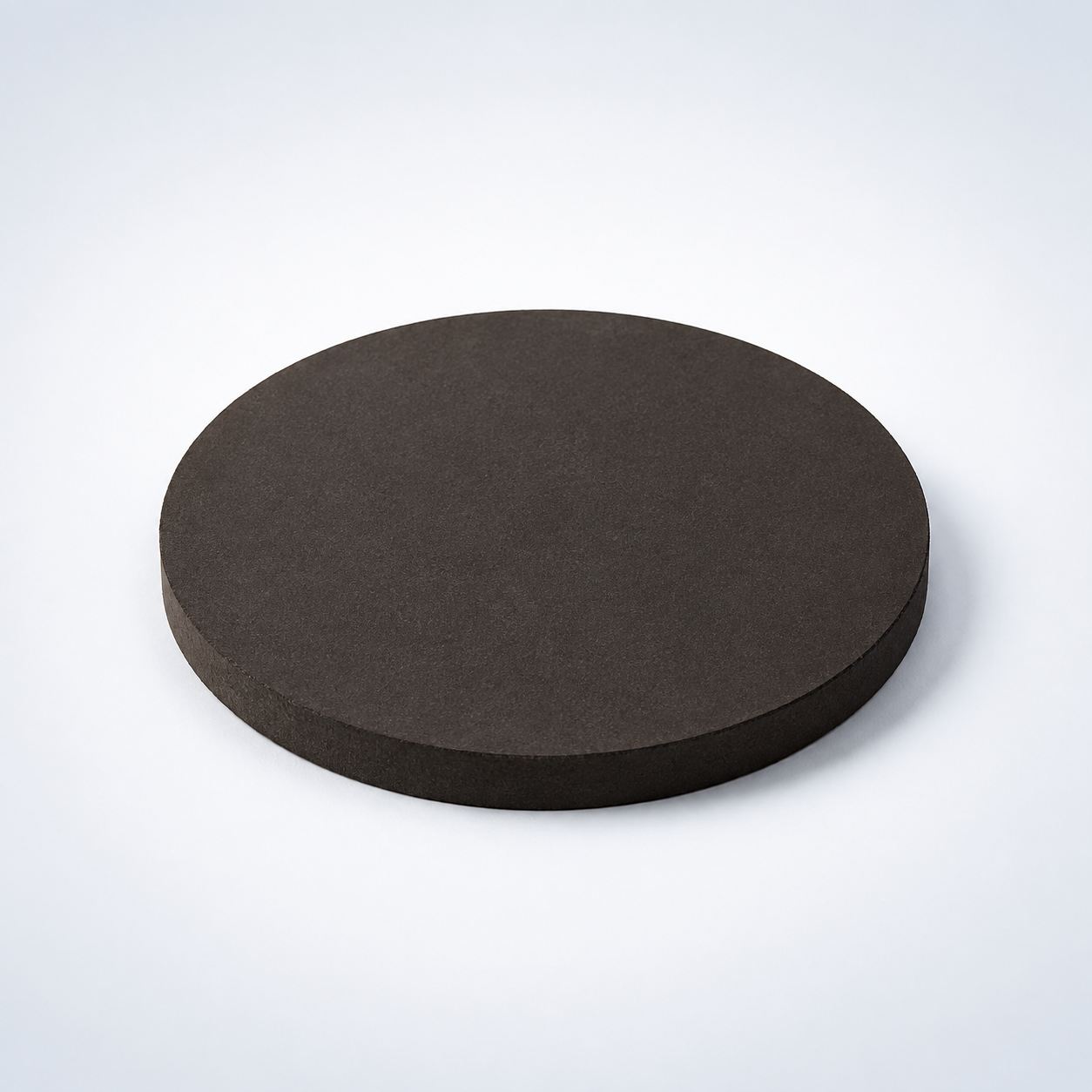

Terbium Oxide Sputtering Target (Tb4O7) is a ceramic sputtering target used to deposit composition-specific oxide thin films. Compared with metallic targets, oxide targets are typically more sensitive to density, porosity, brittleness, thermal shock, and bonding design. In practice, target microstructure, thickness, cooling conditions, and the chosen sputtering mode can all affect arc stability, particle generation, and deposited-film performance.
Material and Deposition Characteristics
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets, while sufficiently conductive formulations may allow alternative power modes in some systems. Target density and microstructural uniformity matter because pores, cracks, and local inhomogeneities can contribute to unstable plasma, particles, or target damage. For brittle ceramics, bonded assemblies and gradual power ramping are often worth evaluating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | Higher purity improves film optical and magnetic performance |
| Density | ≥95% theoretical | Ensures stable sputtering and uniform deposition |
| Diameter | 25 – 300 mm (custom) | Compatible with various sputtering cathodes |
| Thickness | 3 – 6 mm | Influences sputtering rate and target lifetime |
| Bonding | Copper backing plate (optional) | Improves heat transfer and mechanical stability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Terbium Oxide (Tb₄O₇) | Strong magneto-optical and luminescent properties | Magneto-optical devices and photonics |
| Yttrium Oxide (Y₂O₃) | Excellent dielectric and optical properties | Protective and optical coatings |
| Europium Oxide (Eu₂O₃) | Strong luminescent characteristics | Display technologies and phosphors |
| Question | Answer |
|---|---|
| Can Tb₄O₇ sputtering targets be customized? | Yes, diameter, thickness, purity, and backing plate bonding can all be customized according to sputtering system requirements. |
| Which sputtering method is recommended for Tb₄O₇ targets? | RF magnetron sputtering is commonly used because Tb₄O₇ is an insulating ceramic oxide. |
| Are bonded targets available? | Yes, Tb₄O₇ targets can be indium-bonded or elastomer-bonded to copper backing plates to improve heat dissipation. |
| What substrates are compatible with Tb₄O₇ thin films? | Silicon wafers, sapphire, glass, quartz, and oxide substrates are commonly used. |
| Which industries commonly use Tb₄O₇ sputtering targets? | Photonics research, semiconductor manufacturing, optical coatings, and advanced materials R&D. |
Typical Thin-Film Applications
- Dielectric, insulating, optical, magnetic, protective, or functional ceramic thin films
- Semiconductor, sensor, photonic, and multilayer coating research
- Applications where oxide composition, density, and process stability affect film performance
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
Is Terbium Oxide better suited to RF or DC sputtering?
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets. If a specific formulation is sufficiently conductive, other modes may also be possible, but the equipment and target properties should be confirmed.
Why is density important for a Terbium Oxide target?
Density and microstructural uniformity affect erosion stability, thermal behavior, and particle risk. Pores, cracks, or local density variations can contribute to unstable sputtering and target damage.
Should a Terbium Oxide target be bonded to a backing plate?
Bonding is often useful for brittle oxide targets because it can improve mechanical support and heat transfer. The backing material and bonding method should be chosen according to target size, thickness, and operating conditions.
Will the deposited film always have the same composition as Tb4O7?
Not always. Film composition can be affected by preferential sputtering, reactive gas, substrate temperature, re-sputtering, and chamber conditions. Composition-sensitive films should be verified after deposition.
How should power be ramped on a brittle Terbium Oxide target?
A conservative power ramp and stable cooling are generally advisable. The exact operating procedure should follow the target size, bonding condition, cathode design, and supplier recommendations rather than a universal wattage.
What information should I provide when ordering Terbium Oxide?
Provide formula or composition, purity, dimensions, quantity, backing and bonding requirements, cathode model or drawing, and any density, tolerance, or inspection requirements.
