Introduction

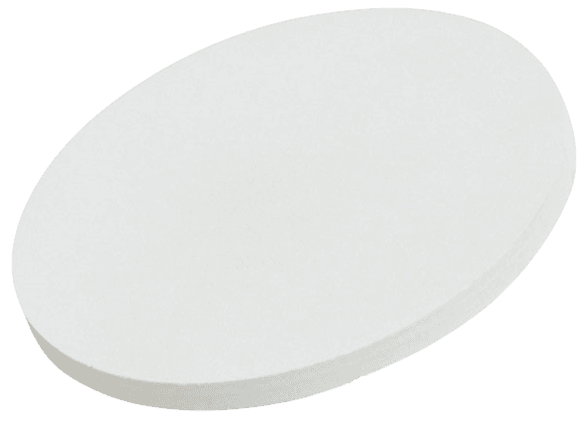

The Terbium Oxide (Tb₄O₇) Sputtering Target is a rare-earth oxide ceramic target widely used in advanced thin film deposition processes. Terbium oxide is known for its unique optical, magnetic, and electronic properties, which make it valuable in applications such as magneto-optical devices, semiconductor thin films, optical coatings, and advanced display technologies.
In Physical Vapor Deposition (PVD) systems, particularly RF magnetron sputtering, Tb₄O₇ targets are used to produce high-quality terbium oxide thin films with controlled composition and excellent stability. These films are important in photonics, spintronic research, and functional oxide coatings where rare-earth elements provide distinctive optical and magnetic characteristics.
Detailed Description
Terbium Oxide Sputtering Targets are manufactured from high-purity Tb₄O₇ powders using advanced ceramic processing techniques such as cold isostatic pressing (CIP), sintering, or hot pressing. These processes produce dense ceramic targets with uniform microstructure, ensuring stable sputtering performance and consistent film deposition.
Tb₄O₇ is a mixed-valence rare-earth oxide with strong optical and magnetic characteristics. The presence of terbium ions gives the material unique luminescent and magneto-optical properties, making it particularly useful in advanced optical devices and materials science research.
Due to its insulating ceramic nature, Tb₄O₇ targets are typically used with RF magnetron sputtering systems, which provide stable plasma conditions for oxide materials. During deposition, terbium oxide thin films can exhibit high optical transparency, strong magneto-optical effects, and good chemical stability.
For large-area deposition systems or high-power sputtering processes, Tb₄O₇ targets can be bonded to copper backing plates using indium bonding or elastomer bonding. This improves heat dissipation and mechanical stability during sputtering, extending the target lifetime and improving deposition efficiency.
Terbium oxide targets are available in a variety of shapes including circular discs, rectangular plates, and custom geometries compatible with different sputtering cathodes. High-density targets help reduce particle generation and ensure uniform thin film growth.
Applications
Thin films deposited from Terbium Oxide Sputtering Targets are widely used in advanced technologies and research fields:
Magneto-optical devices – terbium-based materials are widely used in optical isolators and magneto-optical recording systems.
Optical coatings – Tb₄O₇ thin films provide stable optical properties for specialized optical components.
Display and photonic technologies – rare-earth oxide films used in advanced display materials and photonic devices.
Semiconductor thin films – dielectric layers and functional coatings in electronic devices.
Magnetic and spintronic research – investigation of rare-earth oxide magnetic thin films.
Materials science research – development of multifunctional oxide thin films.
Technical Parameters
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | Higher purity improves film optical and magnetic performance |
| Density | ≥95% theoretical | Ensures stable sputtering and uniform deposition |
| Diameter | 25 – 300 mm (custom) | Compatible with various sputtering cathodes |
| Thickness | 3 – 6 mm | Influences sputtering rate and target lifetime |
| Bonding | Copper backing plate (optional) | Improves heat transfer and mechanical stability |
Comparison with Related Materials
| Material | Key Advantage | Typical Application |
|---|---|---|
| Terbium Oxide (Tb₄O₇) | Strong magneto-optical and luminescent properties | Magneto-optical devices and photonics |
| Yttrium Oxide (Y₂O₃) | Excellent dielectric and optical properties | Protective and optical coatings |
| Europium Oxide (Eu₂O₃) | Strong luminescent characteristics | Display technologies and phosphors |
FAQ
| Question | Answer |
|---|---|
| Can Tb₄O₇ sputtering targets be customized? | Yes, diameter, thickness, purity, and backing plate bonding can all be customized according to sputtering system requirements. |
| Which sputtering method is recommended for Tb₄O₇ targets? | RF magnetron sputtering is commonly used because Tb₄O₇ is an insulating ceramic oxide. |
| Are bonded targets available? | Yes, Tb₄O₇ targets can be indium-bonded or elastomer-bonded to copper backing plates to improve heat dissipation. |
| What substrates are compatible with Tb₄O₇ thin films? | Silicon wafers, sapphire, glass, quartz, and oxide substrates are commonly used. |
| Which industries commonly use Tb₄O₇ sputtering targets? | Photonics research, semiconductor manufacturing, optical coatings, and advanced materials R&D. |
Packaging
Our Terbium Oxide Sputtering Targets are meticulously tagged and labeled externally to ensure efficient identification and maintain high standards of quality control. Each target is carefully vacuum-sealed and packed with protective cushioning materials to prevent contamination or mechanical damage during storage and transportation. Export-grade cartons or wooden crates are used to ensure safe international delivery.
Conclusion
The Terbium Oxide (Tb₄O₇) Sputtering Target is an important rare-earth ceramic target used for producing advanced oxide thin films with unique optical and magnetic properties. Its stability, high purity, and compatibility with RF sputtering make it suitable for applications in photonics, semiconductor devices, magneto-optical systems, and materials science research.
With customizable dimensions, high-density manufacturing, and reliable sputtering performance, Tb₄O₇ sputtering targets provide consistent results for both research laboratories and industrial thin film deposition systems.
For detailed specifications and a quotation, please contact us at sales@thinfilmmaterials.com.
